629108x61D - Murray 29" Snow Thrower (2003) Auger Housing Parts Diagram

29" Snow Thrower

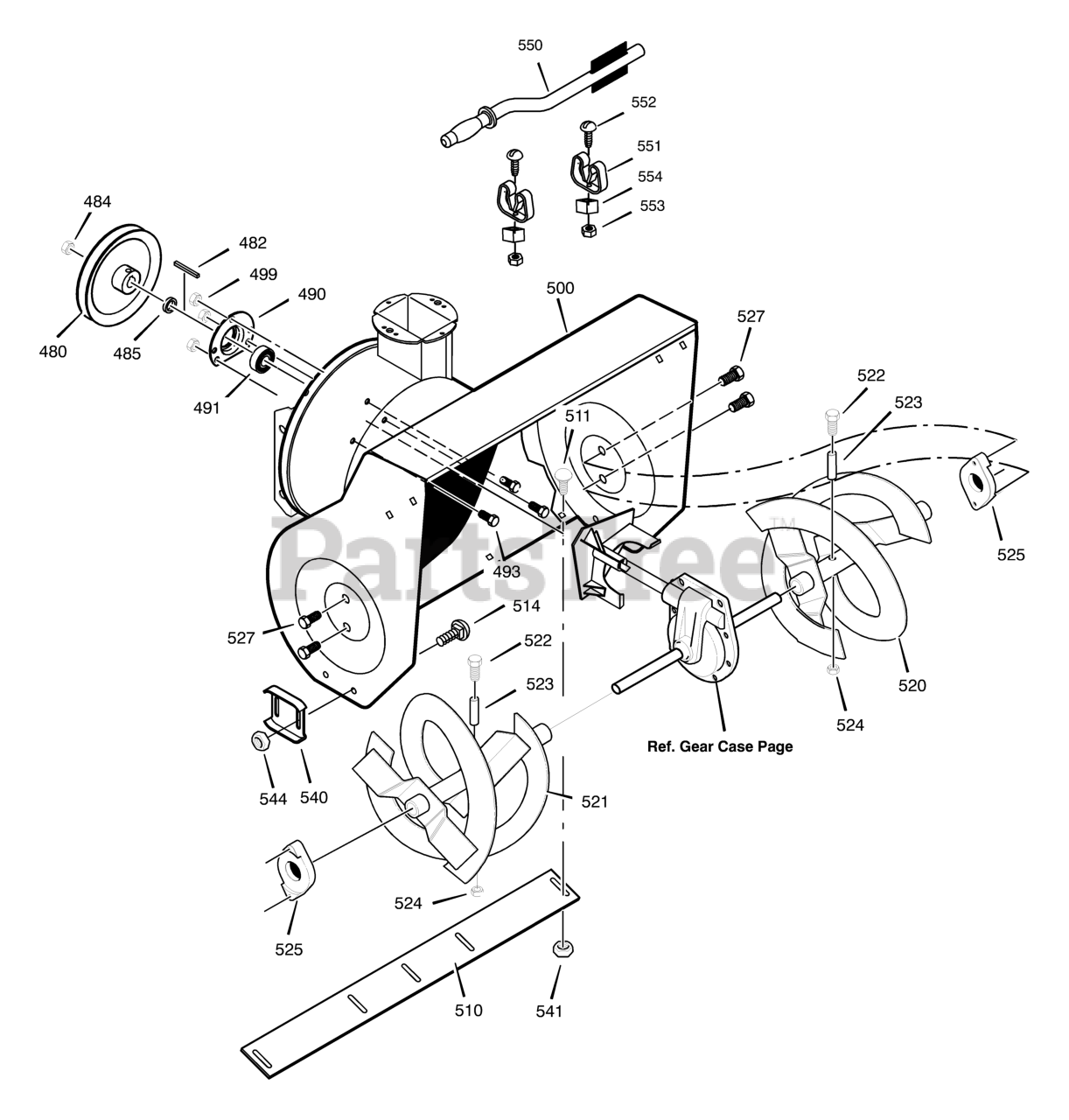

Auger Housing Parts Diagram

  • Title

480

Murray 583146MA

PULLEY, 4L 8.40 OD

$

$

Not available

482

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.49

$

In Stock, Qty 12

0

484

Murray 15X112MA

NUT, 1/2-20

$5.49

$

In Stock, only 2 left!

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

490

Murray 582957 YZ

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 43846

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X92MA

BOLT, HEX 5/16-18X .50

$5.49

$

In Stock, only 3 left!

0

499

Murray 710026

NUT, 5/16-18 HEXWDFLLK

$

$

Not available

500

Murray 1501713E540

HOUSING, ASSY

$512.99

$

Usually ships in 2-12 days

0

510

Murray 760655E701MA

BLADE, SCRAPER
(Superseded to 1740746AYP)

$46.99

$

In Stock, only 4 left!

0

511

Murray 340720MA

BOLT, 5/16-18X.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

514

Murray 710026

NUT, 5/16-18

$

$

Not available

520

Murray 760599E701MA

AUGER, ASSY, LH
(Superseded to 1740738AYP)

$246.99

$

Usually ships in 2-12 days

0

521

Murray 760600E701MA

AUGER, ASSY, RH
(Superseded to 1740739AYP)

$246.99

$

In Stock, only 1 left!

0

522

Murray 9524MA

SCREW, 1/4-20 X 1.75
(Superseded to 703057)

$5.99

$

In Stock, Qty 5

0

523

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 3 left!

0

524

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

525

Murray 53757MA

BEARING, FLANGE

$9.99

$

In Stock, only 2 left!

0

527

Murray 70984

SCREW, 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

540

Murray 762377E701

SKID, HEIGHT ADJUST

$13.99

$

In Stock, Qty 12

0

541

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

544

Murray 710026

NUT, 5/16-18

$

$

Not available

550

Murray 1501576MA

BRUSH, CLEANOUT
(Superseded to 1736094YP)

$34.99

$

In Stock, Qty 7

0

551

Murray 1501672MA

CLIP, RETAINER

$8.99

$

In Stock, Qty 18

0

552

Murray 06X115MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

553

Murray 15X146MA

NUT
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

554

Murray 578063MA

BLOCK

$5.49

$

In Stock, only 4 left!

0

--

Murray 1501216MA

KIT, SHEAR BOLT

$4.99

$

In Stock, Qty 20+

0
