629108x5A - Murray 29" Snow Thrower (2002) Handle Assembly Parts Diagram

29" Snow Thrower

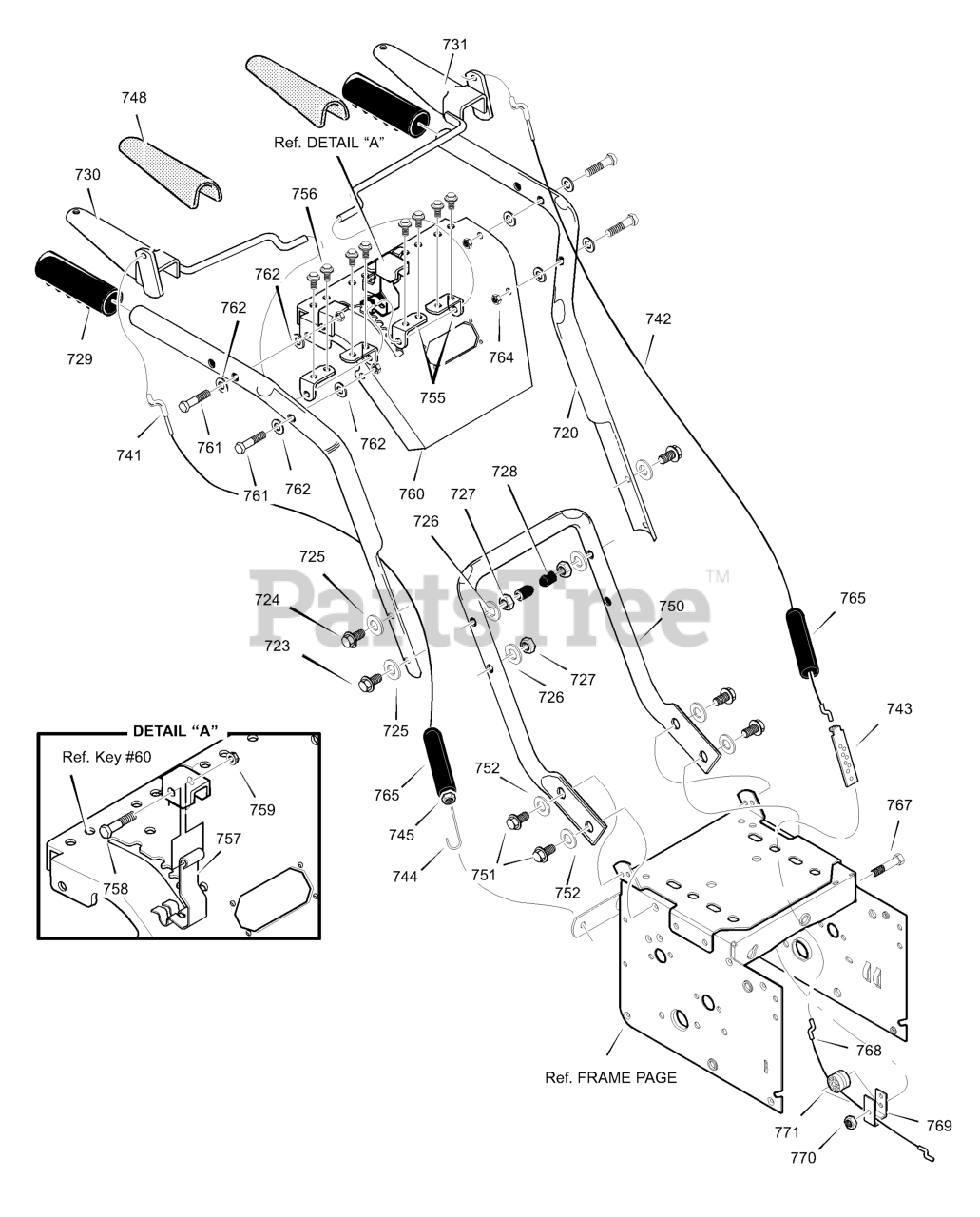

Handle Assembly Parts Diagram

  • Title
720

Murray 5113E717

HANDLE, UPPER LH

$16.99

$

Usually ships in 2-12 days

0

721

Murray 5115E717

HANDLE, UPPER RH

$66.99

$

Usually ships in 2-12 days

0

723

Murray 71007

SCREW

$

$

Not available

724

$4.49

$

Usually ships in 2-12 days

0

725

Murray 71072

WASHER, FLAT

$

$

Not available

726

Murray 71062

WASHER, SPTLK

$

$

Not available

727

Murray 71044

NUT, REGHEX

$3.49

$

Usually ships in 2-12 days

0

728

Murray 7289MA

STOP, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

729

Murray 761209MA

GRIP-HANDLE

$

$

Not available

730

Murray 760290 YZ

LEVER, ASSY CLUTCH DRIVE RH

$186.99

$

Usually ships in 2-12 days

0

731

Murray 760289 YZ

LEVER, ASSY CLUTCH DRIVE LH

$198.99

$

Usually ships in 2-12 days

0

741

Murray 761589MA

CABLE, AUGER CLUTCH

$15.99

$

In Stock, only 3 left!

0

742

Murray 1501124MA

CABLE, AUGER DRIVE
(Superseded to 762259MA)

$12.99

$

In Stock, Qty 5

0

743

Murray 313441MA

BRACKET, CABLE ADJUSTER

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 12

0

745

Murray 15X145MA

NUT, 1/4-20 NYLOCK YZ
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

748

Murray 760992MA

GRIP, CLUTCH HANDLE

$4.99

$

In Stock, only 1 left!

0

750

Murray 5543E717

HANDLE, LOWER

$

$

Not available

751

Murray 70984

SCREW, TAP 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

752

Murray 071060

WASHER, SPTLK

$3.49

$

In Stock, Qty 20+

0

754

Murray 70984

SCREW

$4.49

$

In Stock, Qty 20+

0

755

Murray 760201 YZ

BRKT, ROD

$4.99

$

In Stock, only 2 left!

0

756

Murray 760858MA

SCREW
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

757

Murray 760227MA

SPRING, CAM LOCK

$

$

Not available

758

Murray 45526

BOLT, HEX

$

$

Not available

759

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

760

UNKNOWN

$

$

Not available

761

$4.49

$

Usually ships in 2-12 days

0

762

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

764

Murray 710026

NUT, HEXFLNG

$

$

Not available

765

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

In Stock, only 2 left!

0

767

Murray 1798

BOLT, HEX 1/4-20 X 1.5 YZ

$

$

Not available

768

Murray 1501122MA

CABLE, LOWER DRIVE 12"

$8.49

$

In Stock, Qty 18

0

769

Murray 1501059 YZ

BRACKET, CABLE SPOOL YZ
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

770

$

$

Not available

771

Murray 579860MA

SPOOL-CABLE, AUGRT CLUTCH

$5.99

$

In Stock, Qty 10

0
