629108x31A - Scotts 29" Snow Thrower (2000) Remote Chute Assembly Parts Diagram

29" Snow Thrower

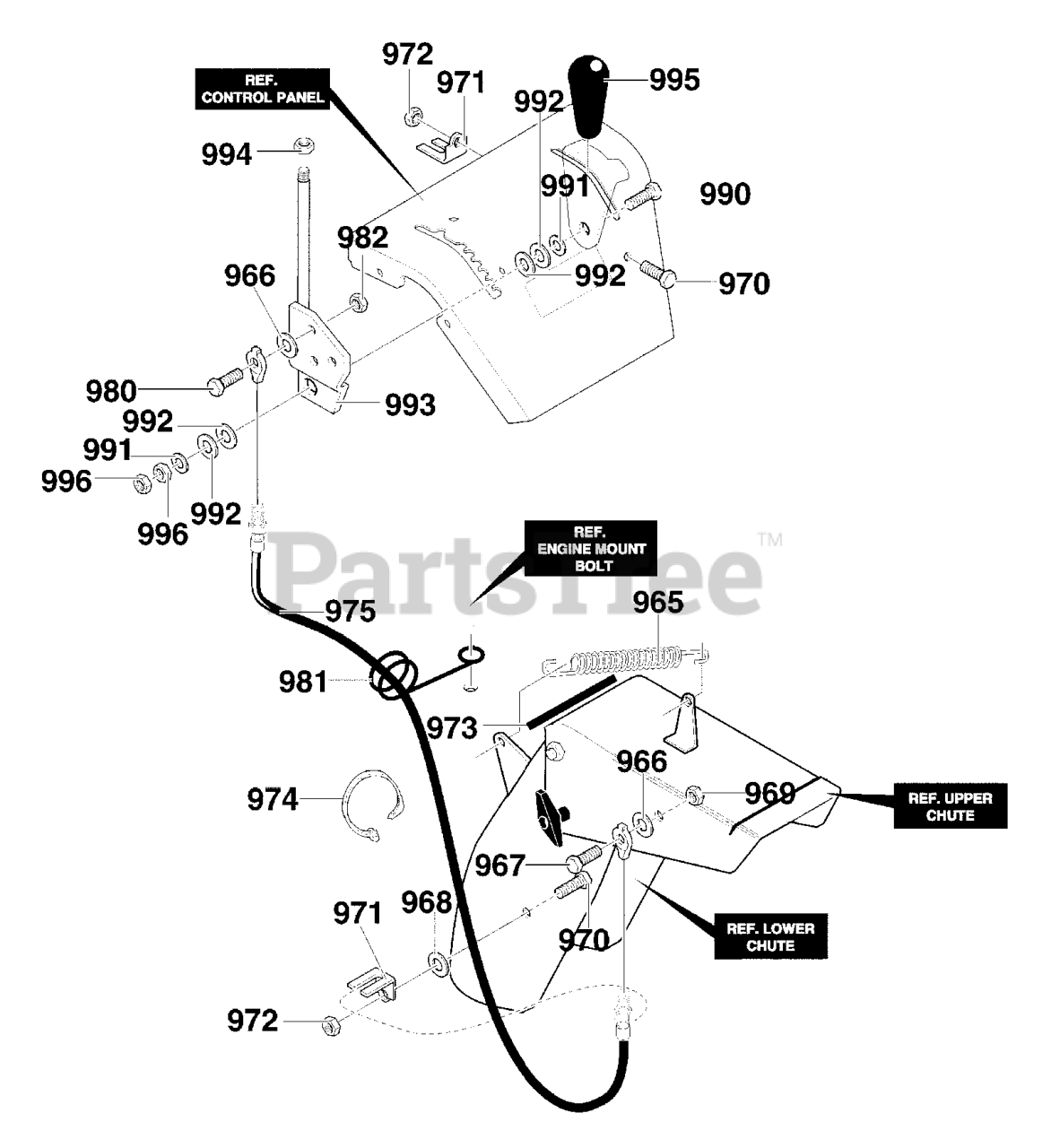

Remote Chute Assembly Parts Diagram

  • Title
965

Murray 318468MA

SPRING, TENSION

$8.49

$

In Stock, only 1 left!

0

966

Murray 711666

FLATWASHER

$

$

Not available

967

Murray 310088MA

BOLT, 1/4-20 HHSH

$4.99

$

Usually ships in 2-12 days

0

968

Murray 73787MA

FLATWASHER

$6.99

$

Usually ships in 2-12 days

0

969

Murray 302635

NUT, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

970

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

971

Murray PER - 780066

BRACKET, CABLE CHUTE

$

$

Currently unavailable

972

Murray 1498

NUT, 5/16-18

$

$

Not available

973

Murray 779024

TRIM 4.50 IN.

$

$

Not available

974

Murray 760113MA

CABLE TIE

$5.49

$

Usually ships in 2-12 days

0

975

Murray 761131MA

CABLE, CHUTE CONTROL RH

$49.99

$

In Stock, only 2 left!

0

980

Murray 310088MA

BOLT, 1/4-20 HHSH

$4.99

$

Usually ships in 2-12 days

0

981

Murray 780220MA

WIRE FORM REMOTE CHUTE

$6.99

$

Usually ships in 2-12 days

0

982

Murray 302635

NUT, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

990

Murray 180128MA

SCREW 3/8-16X1.75

$3.99

$

Usually ships in 2-12 days

0

991

Murray 71072

FLATWASHER

$

$

Not available

992

Murray 4051MA

WASHER, SPRING

$4.99

$

Usually ships in 2-12 days

0

993

Murray 85031

HANDLE ASSY., SPEED CONTROL

$11.99

$

Usually ships in 2-12 days

0

994

Murray 780072MA

NUT, 3/8-16

$3.99

$

Usually ships in 2-12 days

0

995

Murray 304728MA

HANDLE 3/8-16

$12.99

$

Usually ships in 2-12 days

0

996

Murray 71046

NUT, 3/8-16
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0
