629104x89D - Yard King 29" Snow Thrower (2002) Frame Parts Diagram

29" Snow Thrower

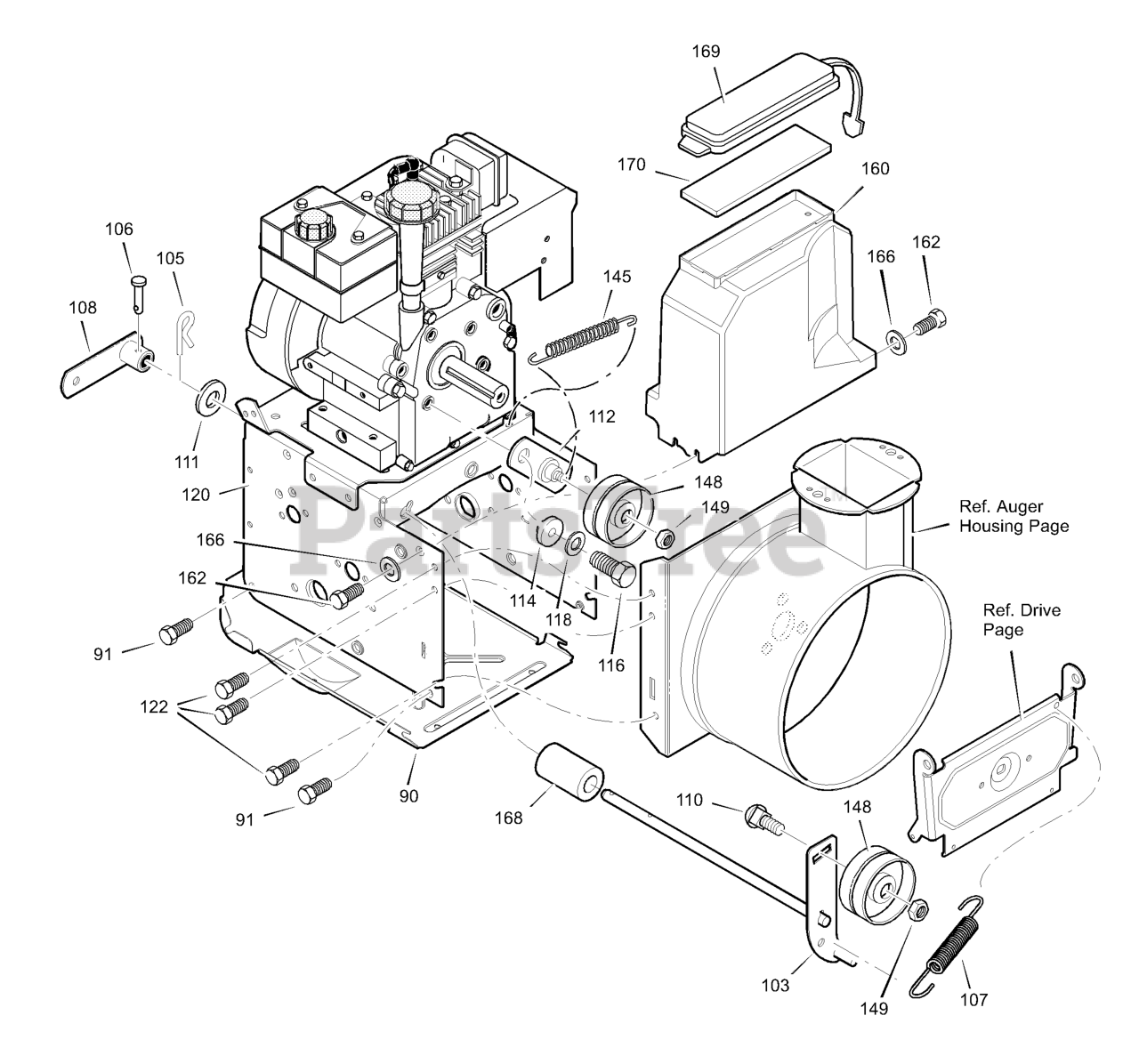

Frame Parts Diagram

  • Title
90

Murray 1501055E717

COVER, BOTTOM

$

$

Not available

91

Murray 310169MA

SCREW, 1/4-20X .63
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

103

Murray 1501226 YZ

IDLER ASSEMBLY, AUGER
(Superseded to 1501226YZMA)

$52.99

$

Usually ships in 2-12 days

0

105

Murray 711682MA

PIN, HAIR .38DIAX1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

106

Murray 761761MA

PIN, KLIK 3/16" DIA

$6.99

$

Usually ships in 2-12 days

0

107

Murray 165X159MA

SPRING, TENSION

$6.99

$

In Stock, Qty 9

0

108

Murray 761675 YZ

ASSY., SPRING ATTACH

$6.49

$

Usually ships in 2-12 days

0

110

Murray 585781MA

BOLT, 3/8-16X1.25 CARR.
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

112

Murray 1501112 YZ

BRACKET ASSEMBLY, IDLER
(Superseded to 1687797YP)

$8.49

$

In Stock, Qty 8

0

114

Murray 1501065MA

BUSHING, IDLER BRACKET

$5.49

$

In Stock, Qty 6

0

116

Murray 710097

SCREW 5/16-24 X .75

$10.99

$

In Stock, only 1 left!

0

118

Murray 071060

WASHER, SPTLK .31 X .58

$3.49

$

In Stock, Qty 20+

0

120

UNKNOWN

$

$

Not available

122

Murray 780055MA

SCREW, TAP 5/16-18 X .50
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

145

Murray 53704MA

SPRING, IDLER TRACTION DRIVE

$8.49

$

In Stock, only 4 left!

0

148

Murray 50793MA

PULLEY, IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 16

0

149

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

160

Murray 1501171

COVER, BELT

$

$

Not available

162

Murray 26X360

SCREW, TAP 1/4-20 X .63 YZ

$

$

Currently unavailable

166

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

168

Murray 1501200MA

SPACER, AUGER BRACKET

$5.99

$

Usually ships in 2-12 days

0

169

Murray 761167

COVER,TOOLBOX

$6.99

$

Usually ships in 2-12 days

0

170

Murray 761187MA

PAD, FOAM

$6.49

$

In Stock, only 1 left!

0
