629104x85D - Murray 29" Snow Thrower (2002) Discharge Chute Parts Diagram

29" Snow Thrower

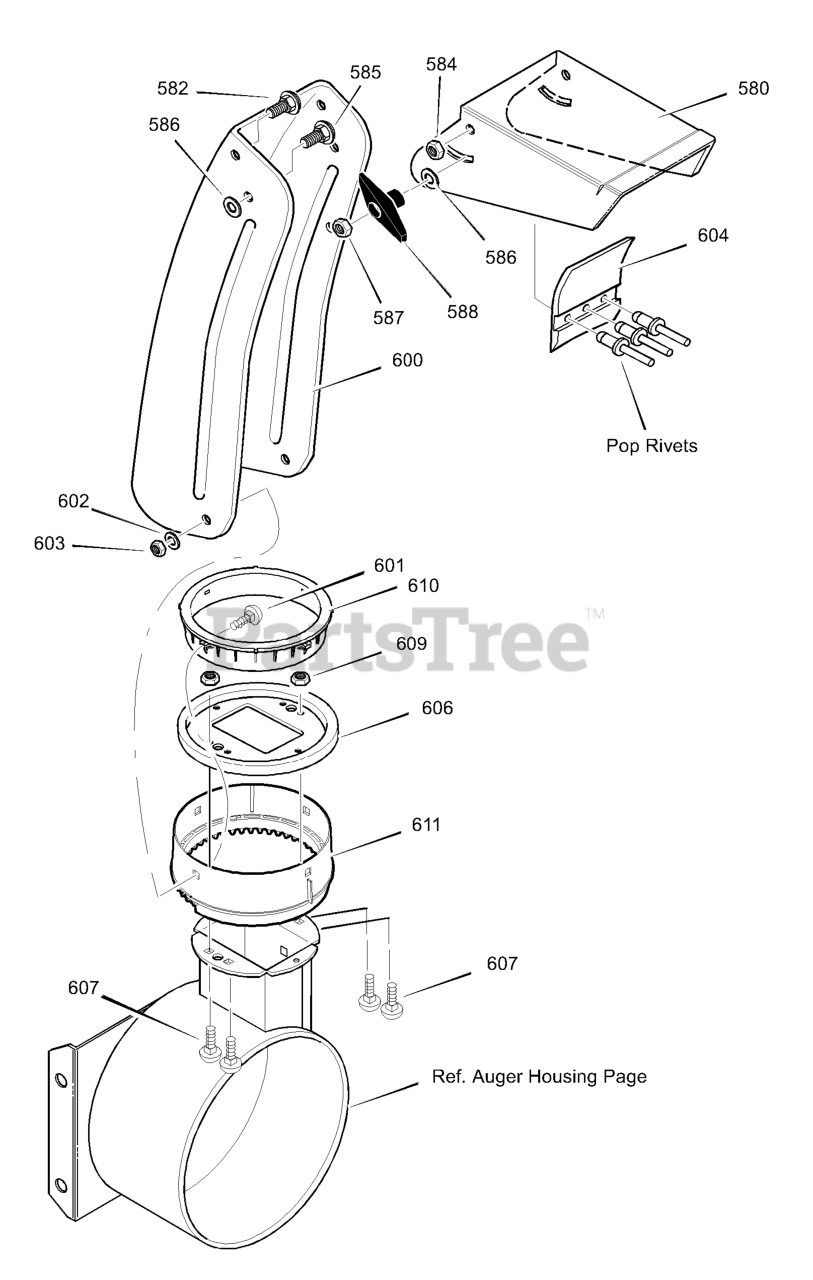

Discharge Chute Parts Diagram

  • Title
580

Murray 761070E701

CHUTE, UPPER

$28.99

$

Usually ships in 2-12 days

0

582

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

584

Murray 71038

NUT, 5/16-18 HEX NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

585

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

586

Murray 6711MA

PLASTIC WASHER

$3.99

$

Usually ships in 2-12 days

0

587

Murray 15X144

NUT, 5/16-18 HEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

588

Murray 57171

Knob, T
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 8

0

600

Murray 761328E701

CHUTE, LOWER

$136.99

$

Usually ships in 2-12 days

0

601

Murray 586280

BOLT, 5/16-18 x 1.00 CARRIAGE

$

$

Not available

602

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

603

Murray 71038

NUT, 5/16-18 HEX NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

$6.49

$

Usually ships in 2-12 days

0

606

Murray 585214 YZ

CHUTE COLLAR

$31.99

$

In Stock, only 3 left!

0

607

Murray 340714MA

BOLT, 1/4-20 x .75
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

609

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227MA

RETAINER, RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501282MA

RING, OUTER CHUTE

$26.99

$

In Stock, only 2 left!

0
