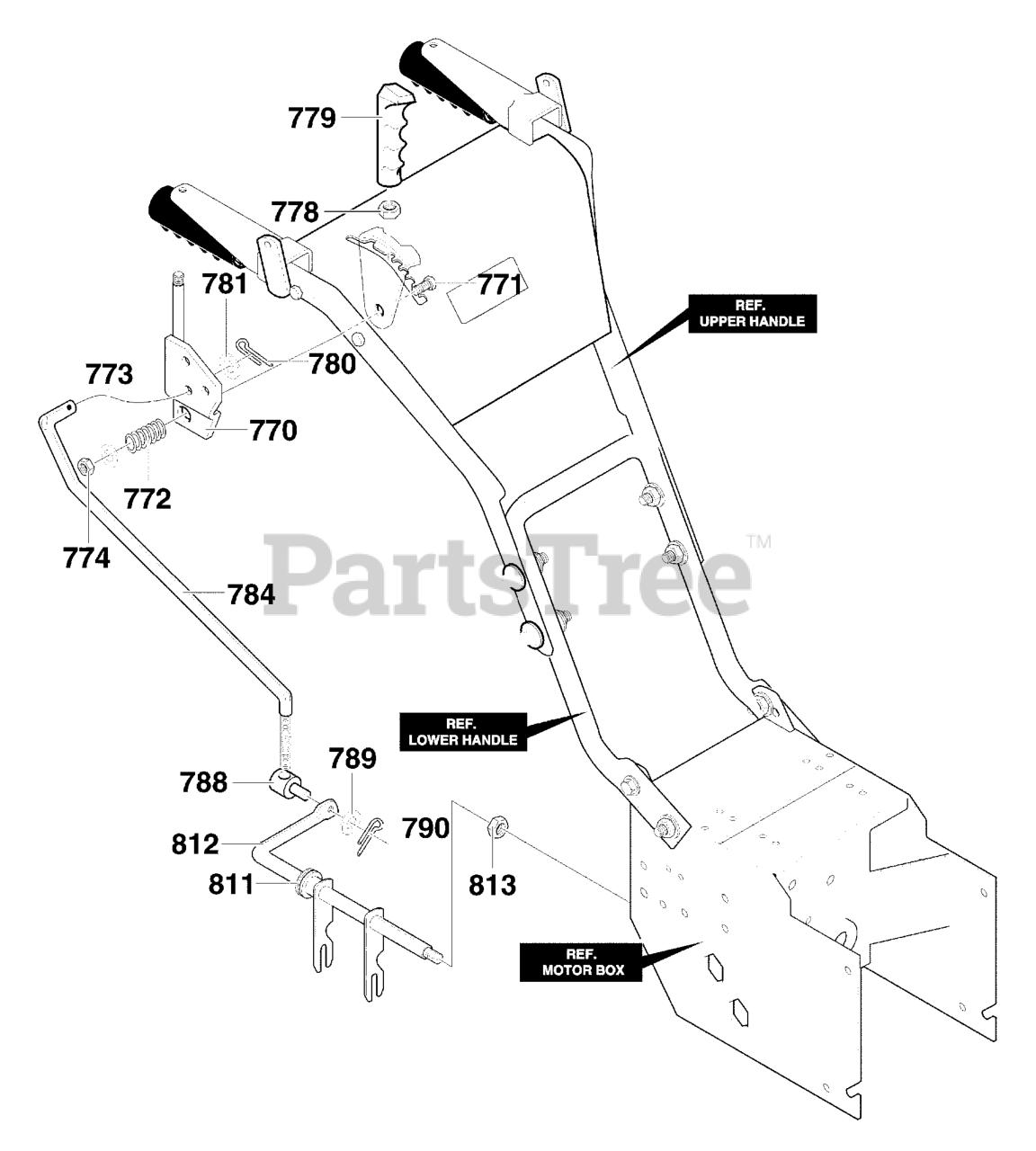

629104x79B - Briggs & Stratton 29" Snow Thrower (2000) (Spirit) Shift Yoke Assembly Parts Diagram

29" Snow Thrower

Shift Yoke Assembly Parts Diagram

  • Title

770

Murray 85031

HANDLE ASSY SPD CTRL

$11.99

$

Usually ships in 2-12 days

0

771

Murray 71007

SCREW 3/8-16X2.00

$

$

Not available

772

Murray 313842

SPRING

$

$

Currently unavailable

773

Murray 71072

FLATWASHER

$

$

Not available

774

Murray 71046

NUT, 3/8-16 HEXNYL
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

778

Murray 780072MA

NUT, 3/8-16 REGHEX

$3.99

$

Usually ships in 2-12 days

0

779

Murray 306689MA

HANDLE 3/8-16

$14.99

$

Usually ships in 2-12 days

0

780

Murray 030X20MA

PIN, COTTER
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

781

Murray 120393

FLATWASHER

$

$

Not available

784

Murray 330635MA

ROD, SPEED CONTROL

$

$

Not available

788

Murray 584593

NUT, TRUNNION

$5.49

$

Usually ships in 2-12 days

0

789

Murray 120393

FLATWASHER

$

$

Not available

790

Murray 030X20MA

COTTER PIN
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

811

Murray 579944MA

BEARING, FLANGE

$15.99

$

Usually ships in 2-12 days

0

812

Murray 337436

ROD, ASSY YOKE

$

$

Not available

813

Murray 071111

NUT, 3/8-16 HXCTRLK

$3.99

$

Usually ships in 2-12 days

0
