629104x6C - Murray Ultra 29" Snow Thrower (2001) Discharge Chute Parts Diagram

Ultra 29" Snow Thrower

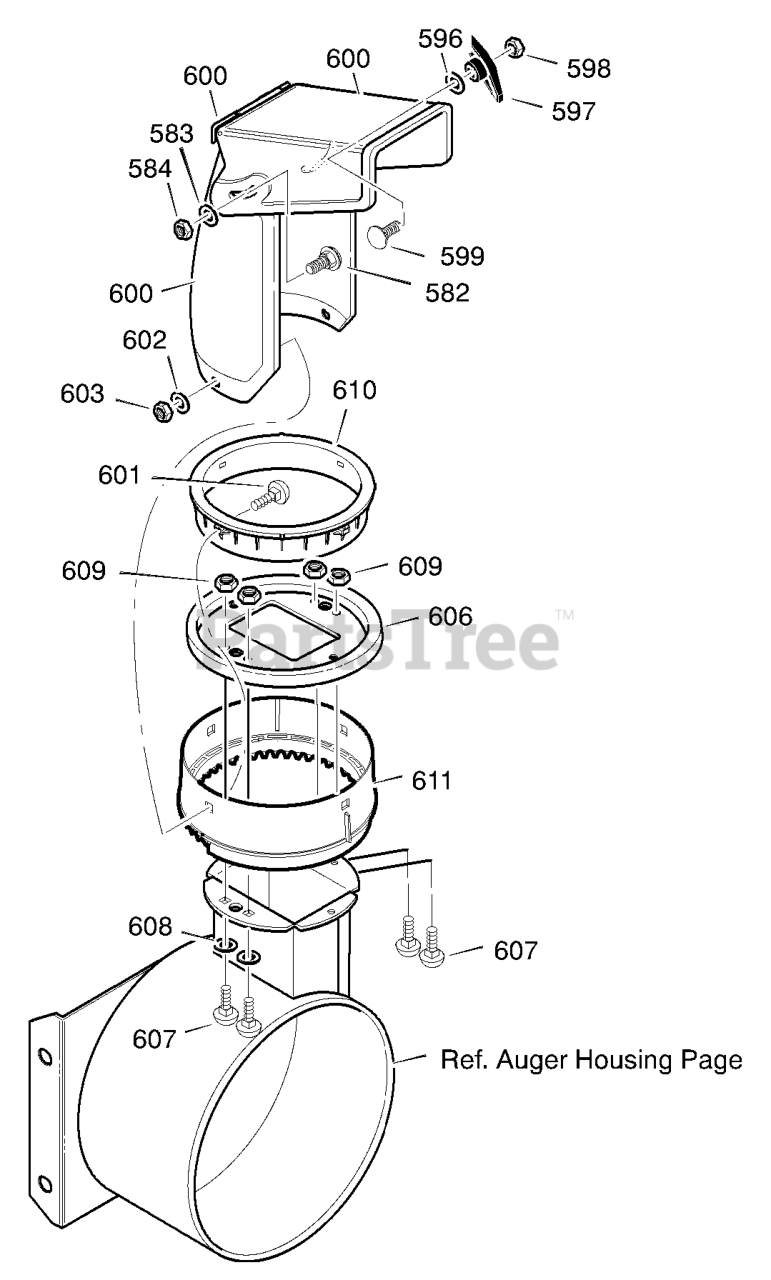

Discharge Chute Parts Diagram

  • Title

582

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

583

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

584

Murray 71391

NUT, 5/16-18 REGHEXCTRLK
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

596

Murray 71071

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

597

Murray 57171

KNOB, T 3.00
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 8

0

598

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

599

Murray 302843MA

BOLT, 5/16-18X1.125

$

$

Not available

600

Murray 762222MA

CHUTE ASSEMBLY

$51.99

$

In Stock, Qty 20+

0

601

Murray 586280

BOLT, 5/16-18 X1.00

$

$

Not available

602

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

603

Murray 71038

NUT, 5/16-18 HEXNYL
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

606

Murray 585214 YZ

CHUTE COLLAR

$31.99

$

In Stock, only 3 left!

0

607

Murray 002X98MA

SCREW, 1/4-20 X 1.00
(Superseded to 703584)

$3.99

$

In Stock, Qty 9

0

608

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

609

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

610

Murray 337227MA

RETAINER RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501054MA

RETAINER RING OUTER

$

$

Not available
