629104x6B - Murray Ultra 29" Snow Thrower (2000) Engine Assembly Parts Diagram

Ultra 29" Snow Thrower

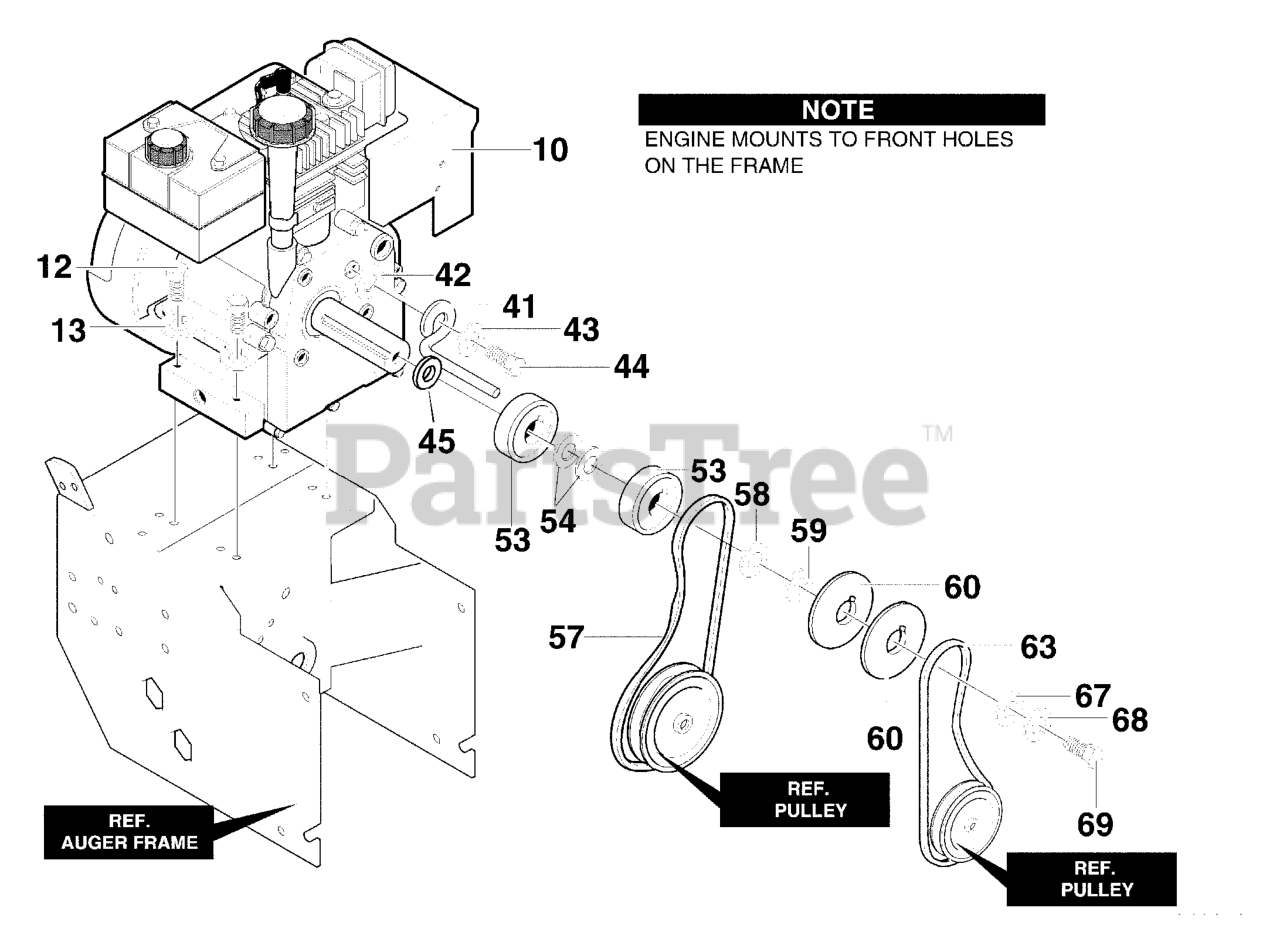

Engine Assembly Parts Diagram

  • Title

10

10HP ENGINE

Note: (See Engine Manual)

$

$

Not available

12

Murray 710024

SCREW, 5/16-18

$7.49

$

Usually ships in 2-12 days

0

13

Murray 120638

WASHER, SPTLK .31X.58X.08

$

$

Not available

41

Murray 3949MA

GUIDE, ROD BELT

$9.99

$

Usually ships in 2-12 days

0

42

Murray 6711MA

PLASTIC WASHER

$3.99

$

Usually ships in 2-12 days

0

43

Murray 120638

WASHER, SPTLK .31X.58X.08

$

$

Not available

44

Murray 910828MA

SCREW, 5/16-24 x 1.00
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

45

Murray 762291MA

SPACER

$4.99

$

Usually ships in 2-12 days

0

53

Murray 579854MA

PULLEY, HALF

$

$

Not available

54

Murray 579861MA

WASHER, FLAT .752X.91X.02

$8.49

$

Usually ships in 2-12 days

0

57

Murray 579932MA

BELT, V 3L 33.13LG
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

58

Murray 712120MA

FLATWASHER .765X1.12X.06

$4.99

$

In Stock, Qty 20+

0

59

Murray 586251MA

SPACER, SLEEVE

$

$

Not available

60

Murray 586253

PULLEY, ENGINE

$31.99

$

Usually ships in 2-12 days

0

63

Murray 585416MA

BELT, V 4L38.1LG

$22.99

$

In Stock, Qty 20+

0

67

Murray 50677MA

WASHER, FLAT .375X1.25X.104

$6.49

$

In Stock, only 1 left!

0

68

Murray 018X31MA

WASHER,HVSPTLK .38ID

$4.49

$

Usually ships in 2-12 days

0

69

Murray 39573MA

SCREW, 3/8-24 x 1.00
(Superseded to 001X20MA)

$4.49

$

In Stock, only 4 left!

0

--

Murray F-001086J

OWNER'S MANUAL

$

$

Currently unavailable
