629104x6B - Murray Ultra 29" Snow Thrower (2000) Discharge Chute Assembly Parts Diagram

Ultra 29" Snow Thrower

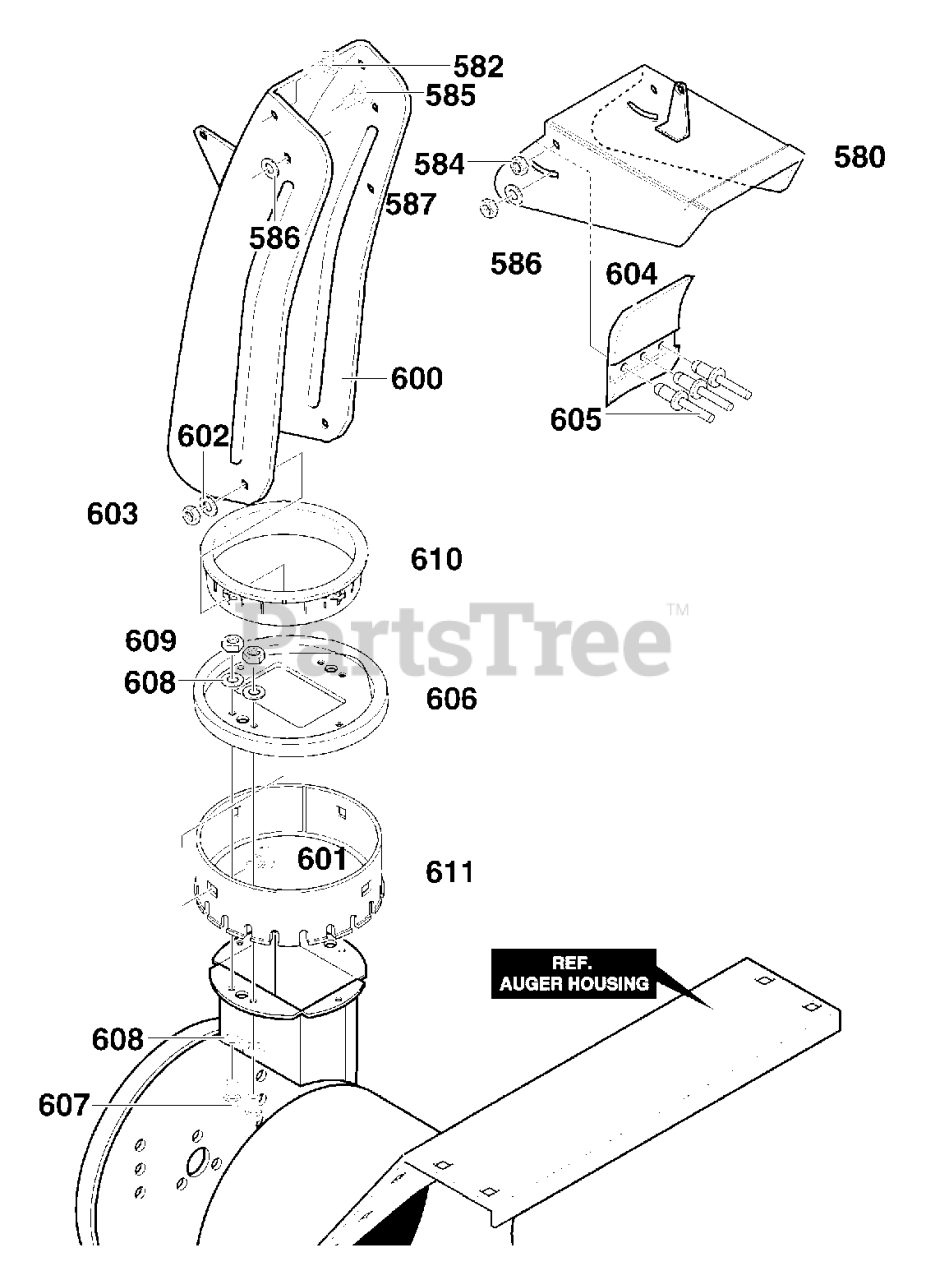

Discharge Chute Assembly Parts Diagram

  • Title

580

Murray 761168-853

UPPER CHUTE

$

$

Currently unavailable

582

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

584

Murray 71038

NUT, 5/16-18 REGHEXCTRLK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

585

UNKNOWN

$

$

Not available

586

Murray 6711MA

PLASTIC WASHER

$3.99

$

Usually ships in 2-12 days

0

587

Murray 71038

NUT, 5/16-18 REGHEXCTRLK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

600

Murray 761169-853

LOWER CHUTE

$

$

Currently unavailable

600

Murray 762222MA

CHUTE, ASSEMBLY

$51.99

$

In Stock, Qty 20+

0

601

Murray 586280

BOLT, 5/16-18X1.00

$

$

Not available

602

Murray 120393

FLATWASHER .349X.69X.066

$

$

Not available

603

Murray 71038

NUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

Murray 762322MA

FLAP

$6.49

$

Usually ships in 2-12 days

0

605

Murray 760987MA

RIVET

$3.99

$

In Stock, only 1 left!

0

606

Murray 585214-853

COLLAR, CHUTE

$

$

Currently unavailable

607

Murray 302628MA

SCREW, 1/4-20X .75

$4.49

$

In Stock, Qty 7

0

608

Murray 071067MA

FLATWASHER .281X .63X.065

$82.99

$

In Stock, only 1 left!

0

609

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

610

Murray 337227MA

RETAINER, RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 585193MA

RETAINER, RING OUTER

$29.99

$

In Stock, Qty 20+

0
