629104x5A - Murray 29" Snow Thrower (2003) Hydro Drive Parts Diagram

29" Snow Thrower

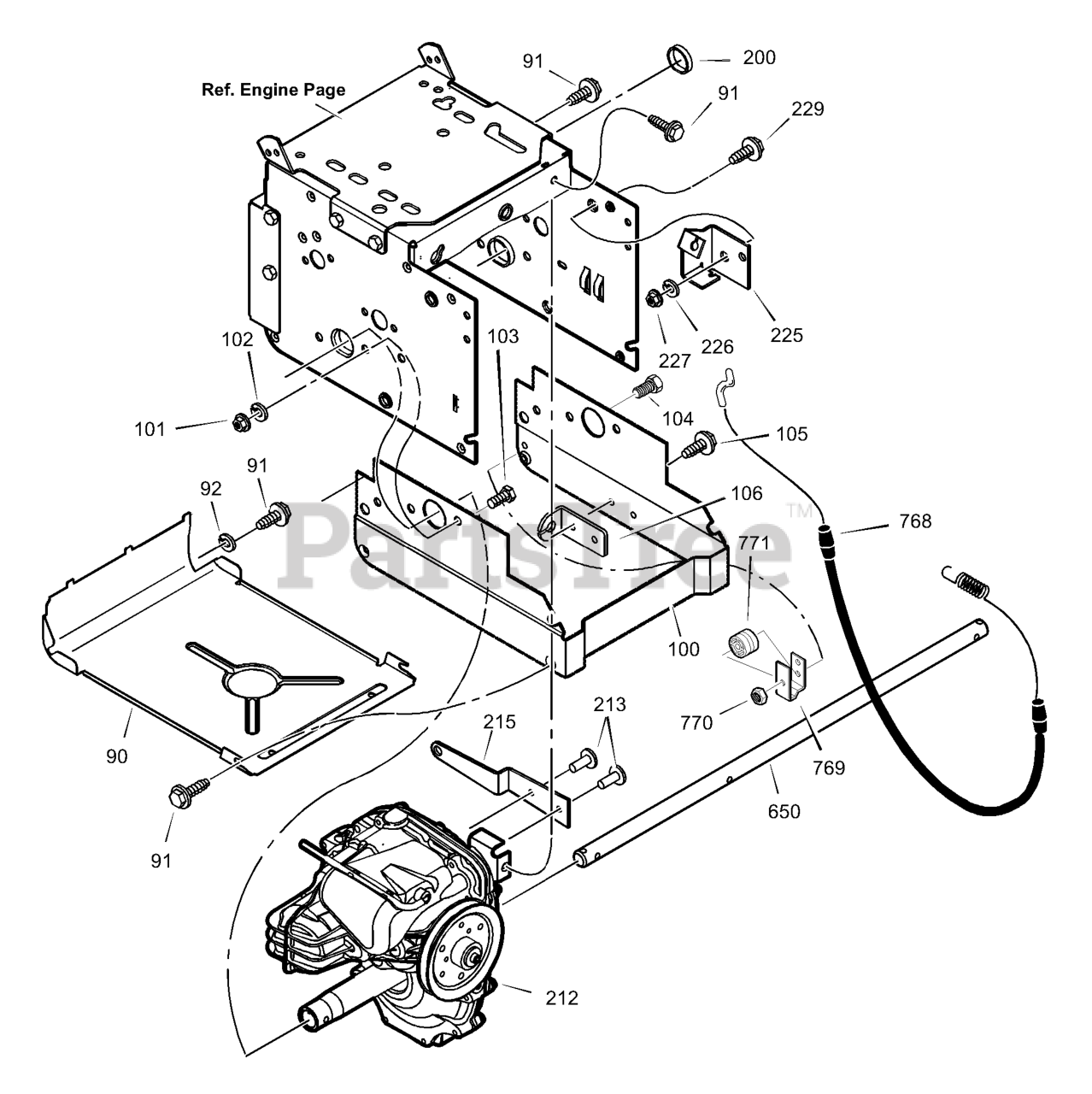

Hydro Drive Parts Diagram

  • Title
90

Murray 1501750E717MA

COVER, BOTTOM

$

$

Not available

91

Murray 310169MA

SCREW, 1/4-20 X 0.62
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

92

Murray 71067

WASHER
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

100

Murray 1501753E201

FRAME, EXTENSION - HYDRO

$

$

Currently unavailable

101

$3.49

$

Usually ships in 2-12 days

0

102

Murray 71062

WASHER

$

$

Not available

103

$

$

Not available

104

Murray 001798

BOLT
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

105

Murray 760858MA

SCREW
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

106

Murray 1501756

BRACKET, CABLE

$

$

Currently unavailable

200

Murray 1501496

PLUG, HEYCO
(Superseded to 1501496MA)

$3.99

$

Usually ships in 2-12 days

0

212

Murray 1501353

Transmission, Hydro *
(Superseded to 1501353MA)

$695.99

$

Usually ships in 2-12 days

0

213

Murray 021X11MA

RIVET, BLIND

$3.99

$

Usually ships in 2-12 days

0

215

Murray 1501366

ARM, CONTROL EXTENSION
(Superseded to 1501366MA)

$12.99

$

Usually ships in 2-12 days

0

225

Murray 1501361

BRACKET, DRIVE CABLE
(Superseded to 703236)

$44.99

$

Usually ships in 2-12 days

0

226

Murray 71063

WASHER

$3.99

$

Usually ships in 2-12 days

0

227

Murray 71045

NUT, HEX JAM - 3/8-16

$

$

Not available

229

Murray 025X19

SCREW
(Superseded to 025X19MA)

$5.99

$

Usually ships in 2-12 days

0

650

Murray 1501566

AXLE, WHEEL

$69.99

$

Usually ships in 2-12 days

0

768

Murray 1501748MA

CABLE, HYDRO DRIVE

$20.99

$

Usually ships in 2-12 days

0

769

Murray 1501059 YZ

BRACKET, CABLE SPOOL YZ
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

770

Murray 15X145MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

771

Murray 579860MA

SPOOL, CABLE

$5.99

$

In Stock, Qty 7

0
