629104x5A - Murray 29" Snow Thrower (2003) Control Panel Assembly Parts Diagram

29" Snow Thrower

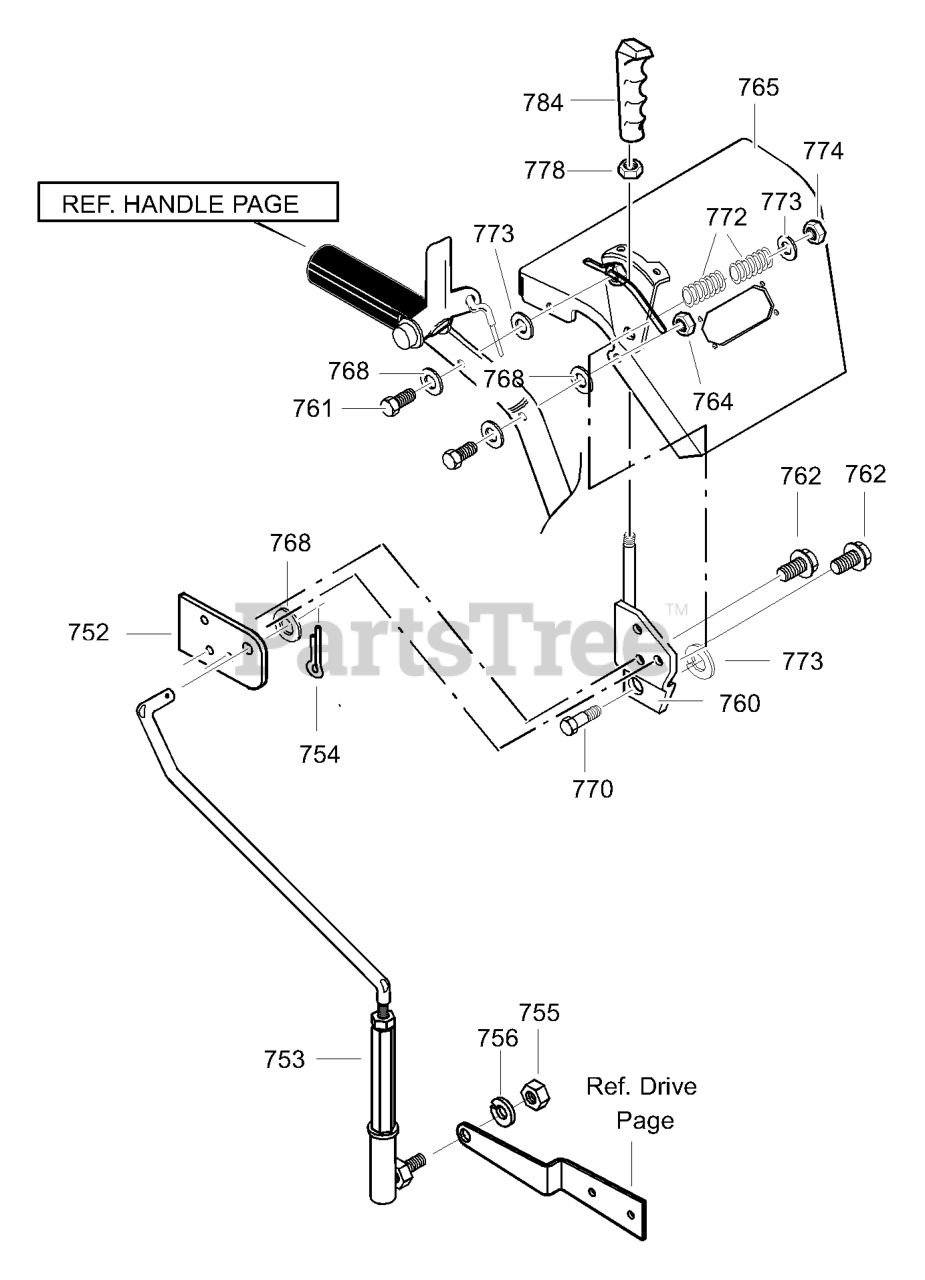

Control Panel Assembly Parts Diagram

  • Title

752

Murray 1501749

BRACKET, CONTROL

$

$

Currently unavailable

753

Murray 1501761

ASSEMBLY, ROD

$88.99

$

Usually ships in 2-12 days

0

754

Murray 71081

PIN, COTTER

$

$

Not available

755

Murray 71042MA

NUT, 5/16-24

$4.49

$

Usually ships in 2-12 days

0

756

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

760

Murray 85030 YZ

HANDLE ASSY SPD CTRL

$14.99

$

In Stock, only 1 left!

0

761

Murray 302900MA

SCREW, 5/16-18 x 1.75

$4.49

$

Usually ships in 2-12 days

0

762

Murray 310169MA

SCREW
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

764

Murray 710026

NUT, 5/16-18

$

$

Not available

765

Murray 1501747E201MA

ASSY. BAY PANEL -LT

$57.99

$

Usually ships in 2-12 days

0

768

Murray 71071

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

770

Murray 71007

SCREW 3/8-16X2.00

$

$

Not available

772

Murray 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71072

FLATWASHER

$

$

Not available

774

Murray 71046

NUT, 3/8-16
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

778

Murray 71044

NUT, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

781

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

784

Murray 304728MA

HANDLE, GRIP

$12.99

$

Usually ships in 2-12 days

0

813

Murray 11X30MA

RING, RETAINER

$4.49

$

In Stock, Qty 12

0

814

Murray 579944MA

BEARING, FLANGE

$15.99

$

Usually ships in 2-12 days

0
