629101x85B - Murray 29" Snow Thrower (2006) Auger Housing Parts Diagram

29" Snow Thrower

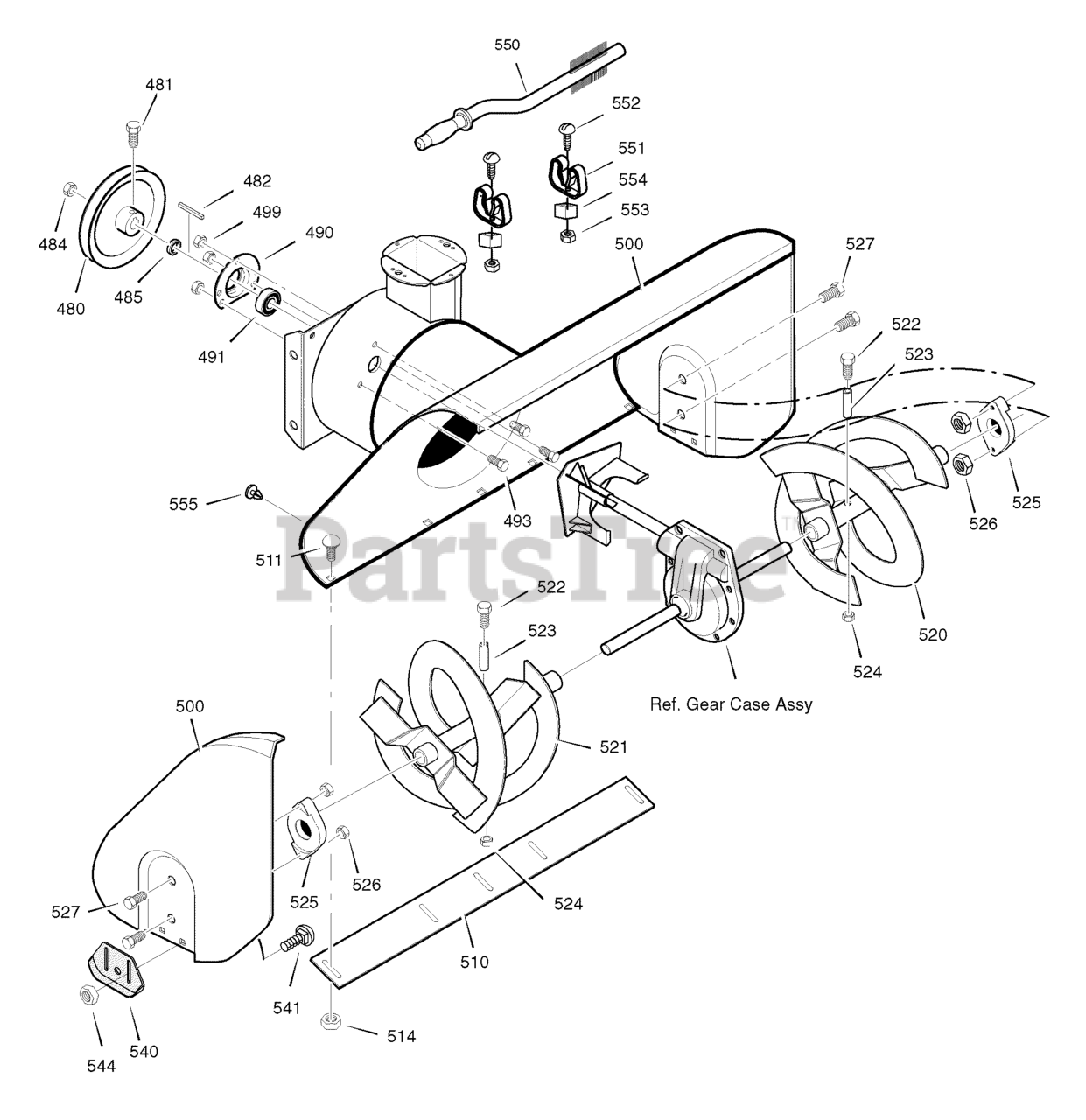

Auger Housing Parts Diagram

  • Title
480

$

$

Not available

481

Murray 577400MA

SCREW, 5/16-18 X .62

$4.99

$

Usually ships in 2-12 days

0

482

Murray 001X45MA

KEY, SQUARE 3/16 X 3/4
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

484

Murray 15X112MA

NUT.50-20 HEX FLG SERLKZ

$5.49

$

In Stock, only 2 left!

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

490

Murray 582957YZMA

RETAINER, BALL BEARING
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1501389MA

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

493

Murray 908156MA

BOLT, HEX 5/16-18 X .50
(Superseded to 703798)

$4.49

$

Usually ships in 2-12 days

0

499

Murray 710026MA

NUT, 5/16-18 HEXWDFLLK
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

500

Murray 1501694E012MA

HOUSING, ASSEMBLY

$512.99

$

Usually ships in 2-12 days

0

510

Murray 760660E701MA

BLADE, SCRAPER
(Superseded to 1738334BMYP)

$47.99

$

In Stock, only 4 left!

0

511

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

514

Murray 710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

520

Murray 760599E701MA

AUGER, ASSEMBLY, LH
(Superseded to 1740738AYP)

$246.99

$

Usually ships in 2-12 days

0

521

Murray 760600E701MA

AUGER, ASSEMBLY, RH
(Superseded to 1740739AYP)

$246.99

$

In Stock, only 1 left!

0

522

Murray 9524MA

SCREW, 1/4-20 X 1.75
(Superseded to 703057)

$5.99

$

In Stock, Qty 5

0

523

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 3 left!

0

524

Murray 73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

525

Murray 53757MA

BEARING, FLANGE

$9.99

$

In Stock, only 2 left!

0

526

Murray 710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

527

Murray 25X021MA

SCREW, 5/16-18 X .75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

540

Murray 309016E701MA

SKID, HEIGHT ADJUST

$

$

Not available

541

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

544

Murray 710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

550

Murray 1501576MA

BRUSH, CLEANOUT
(Superseded to 1736094YP)

$34.99

$

In Stock, Qty 7

0

551

Murray 1501672MA

CLIP, RETAINER

$8.99

$

In Stock, Qty 18

0

552

$3.99

$

Usually ships in 2-12 days

0

553

Murray 15X146MA

NUT
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

554

$5.49

$

In Stock, only 4 left!

0

555

Murray 760040MA

PLUG-PANEL .32 X .48L BLACK

$4.49

$

Usually ships in 2-12 days

0

--

Murray 1501216MA

KIT, SHEAR BOLT

$4.99

$

In Stock, Qty 20+

0
