62905 - Toro Lawn Blower, 5hp (SN: 003000001 - 003999999) (1973) ENGINE AND HANDLE ASSEMBLY Parts Diagram

Lawn Blower, 5hp

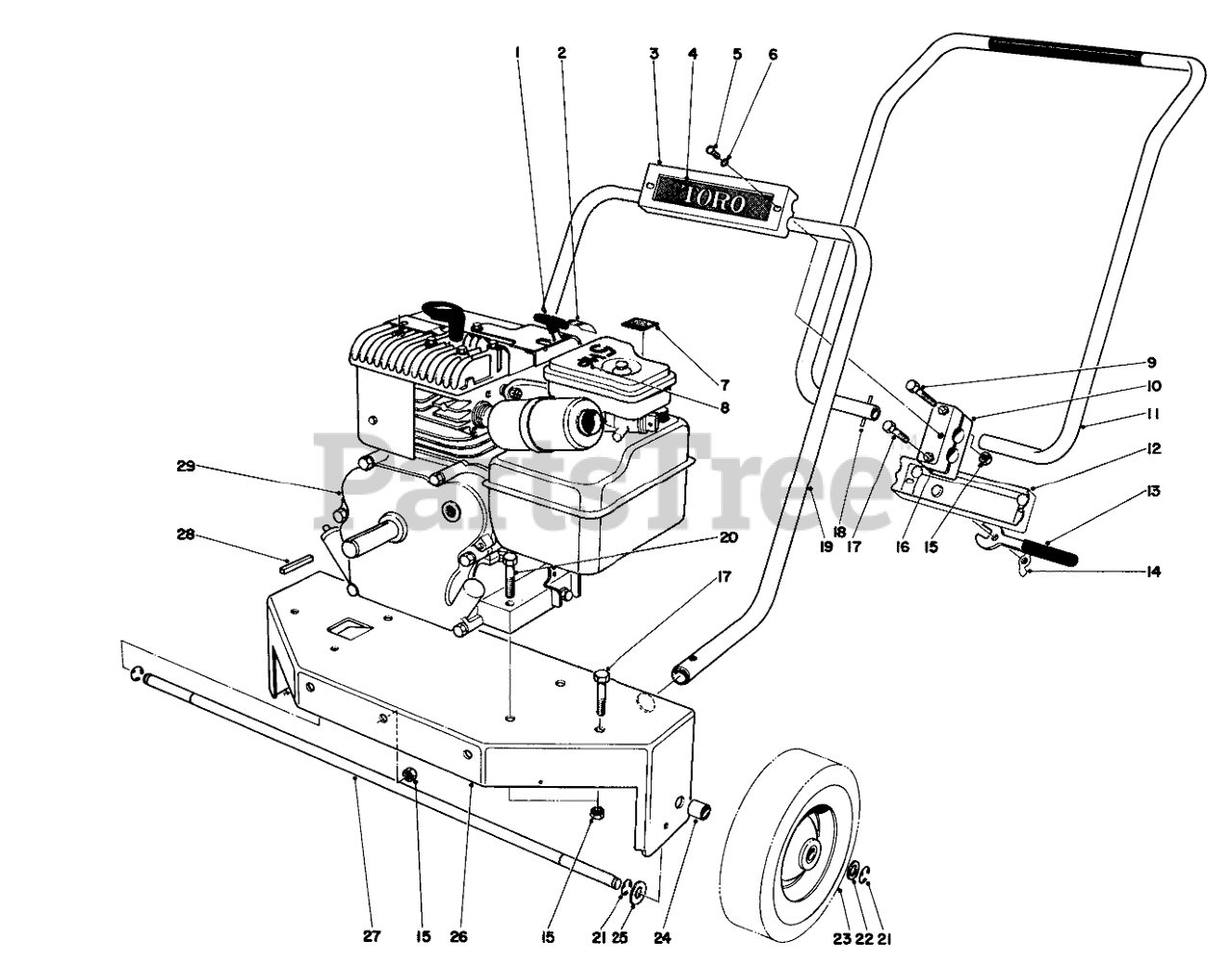

ENGINE AND HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 19-0170

Throttle Control Knob

$

$

Currently unavailable

2

Toro 19-1070

Throttle Decal

$

$

Currently unavailable

3

Toro 19-0550

Front Clamp Cover

$

$

Currently unavailable

4

Toro 18-8960

Decal Toro

$

$

Currently unavailable

5

Toro 19-1080

Screw

$

$

Currently unavailable

6

Toro 19-1090

Washer

$

$

Currently unavailable

7

Toro 19-1060

Caution Decal

$

$

Currently unavailable

8

Toro 19-1020

Decal 5 H.P.

$

$

Currently unavailable

9

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

10

Toro 19-0540

Lower Handle Clamp

$

$

Currently unavailable

11

Toro 19-0530

Upper Handle

$

$

Currently unavailable

12

Toro 19-0560

Rear Clamp Cover

$

$

Currently unavailable

13

Toro 19-0570

Clamp Wrench

$

$

Currently unavailable

14

Toro 32103-19

WING NUT

$1.99

$

In Stock, only 2 left!

0

15

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

16

Toro 19-1170

Upper Handle Clamp

$

$

Currently unavailable

17

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

18

Toro 19-1160

Roll Pin

$

$

Currently unavailable

19

Toro 19-0520

Lower Handle

$

$

Not available

20

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

21

Toro 19-0900

Retaining Ring

$

$

Not available

22

Toro 19-0850

Washer

$

$

Currently unavailable

23

Toro 19-0390

Wheel & Tire Assy.

$

$

Currently unavailable

24

Toro 19-0380

Spacer

$

$

Currently unavailable

25

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

26

Toro 19-0360

Engine Mounting Plate

$

$

Currently unavailable

27

Toro 19-0370

Wheel Axle

$

$

Currently unavailable

28

Toro 19-0410

Key
(Superseded to 5-1865)

$

$

Not available

29

Toro 19-0420

Engine

$

$

Currently unavailable

Toro 19-1200

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
