62905 - Toro Lawn Blower, 5hp (SN: 003000001 - 003999999) (1973) BLOWER HOUSING ASSEMBLY Parts Diagram

Lawn Blower, 5hp

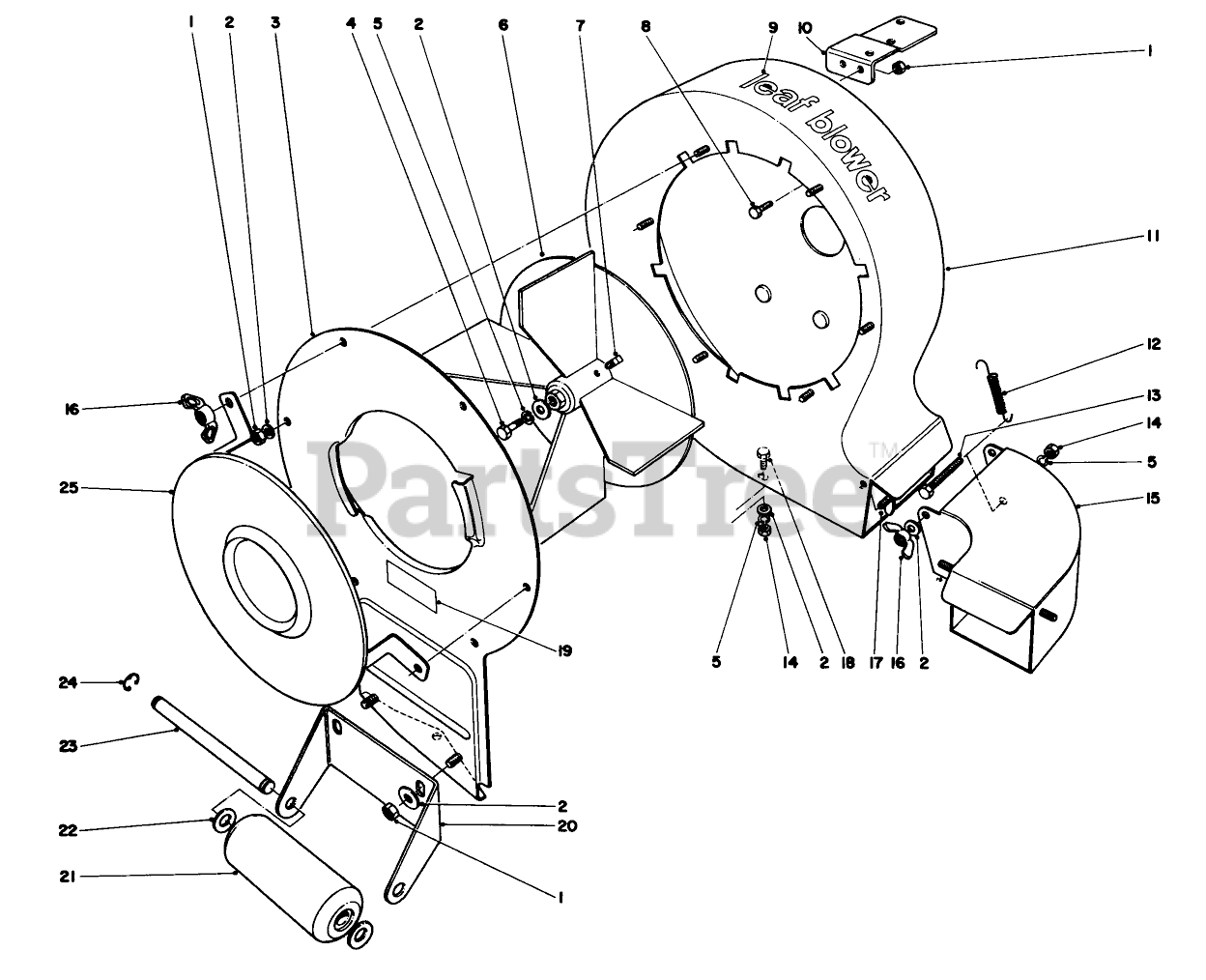

BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 19-0430

Front Plate

$

$

Currently unavailable

4

Toro 19-0870

Special Bolt

$

$

Not available

5

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

6

Toro 19-0310

Fan

$

$

Currently unavailable

7

Toro 3241-2

SCREW-SQH
(Superseded to 3241-7)

$3.99

$

In Stock, only 2 left!

0

8

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

9

Toro 19-0600

Decal, Leaf Blower

$

$

Currently unavailable

10

Toro 19-0490

Blower Housing Bracket

$

$

Currently unavailable

11

Toro 19-0350

Blower Housing

$

$

Currently unavailable

12

Toro 19-0510

Deflector Spring

$

$

Currently unavailable

13

Toro 19-0890

Special Bolt

$

$

Currently unavailable

14

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

15

Toro 19-0500

Deflector

$

$

Currently unavailable

16

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

17

Toro 19-0860

Special Bolt

$

$

Currently unavailable

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 19-0580

Caution Decal

$

$

Currently unavailable

20

Toro 19-0450

Roller Bracket

$

$

Currently unavailable

21

Toro 19-0470

Roller

$

$

Not available

22

Toro 19-0460

Special Washer

$

$

Currently unavailable

23

Toro 19-0480

Roller Axle

$

$

Currently unavailable

24

Toro 19-0880

Retaining Ring

$

$

Currently unavailable

25

Toro 19-0440

Guard

$

$

Not available
