62902 - Toro 31cc Gas Blower Vacuum (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

31cc Gas Blower Vacuum

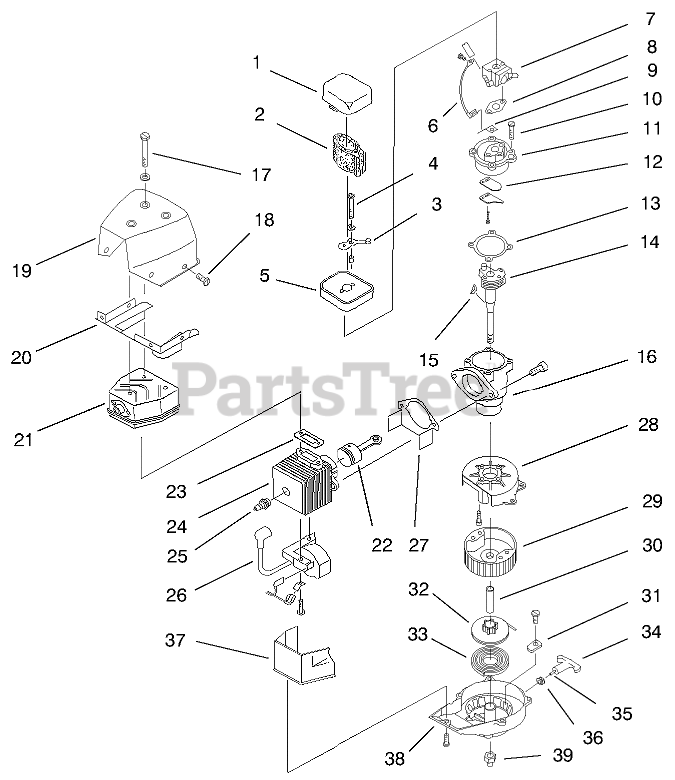

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 683378

AIR CLEANER COVER ASM

$

$

Not available

2

Toro 612111

AIR CLEANER FILTER

$

$

Not available

3

Toro 683380

CHOKE LEVER ASM

$

$

Not available

4

Toro 180351

ASSEMBLY - MOUNTING BOLT

$

$

Not available

5

Toro 181512

BASE - AIR CLEANER

$

$

Not available

6

Toro 180360

LEAD - WIRE

$

$

Not available

7

Toro 180527

Carburetor
(Superseded to 181621)

$

$

Not available

8

Tecumseh 610675

CARBURETOR GASKET(10 PER PACK)

$

$

Currently unavailable

9

Tecumseh 611063

GROUND TAB

$

$

Currently unavailable

10

Toro 683384

Reed Plate Mounting Screw

$

$

Not available

11

Toro 684757

CARB MNT & GASKET AY

$

$

Not available

12

Toro 147611

Reed Asm.

$

$

Currently unavailable

13

Toro 612115

CARB MT GASKET (10-PK)

$

$

Not available

14

Toro 181510

ASSEMBLY - CRANK SHAFT

$

$

Not available

15

Tecumseh 610676

FLYWHEEL KEY (10-PK)

$

$

Currently unavailable

16

Toro 181511

Crankcase Service Asm. (Incl. Ref. #10, 13-16)

$

$

Not available

17

Toro 147575

MUFFLER MTG BOLT ASM

$

$

Not available

18

Toro 181517

ASSEMBLY - MOUNTING SCREW

$

$

Not available

19

Toro 181522

SHIELD - UPPER HEAT

$

$

Not available

20

Toro 181518

SHIELD LOWER HEAT

$

$

Not available

21

Toro 181521

ASSEMBLY - MUFFLER

$

$

Not available

22

Toro 684449

PISTON & ROD ASM
(Superseded to 753-04367)

$

$

Not available

23

Tecumseh 610672

Exhaust Gasket

$

$

Currently unavailable

24

Toro 180063

ASSEMBLY - CYLINDER
(Superseded to 181622)

$

$

Not available

25

Tecumseh 610311

SPARK PLUG

$

$

Currently unavailable

26

Toro 683390

Module Asm.
(Superseded to 181937)

$

$

Not available

27

Toro 181519

GASKET - CYLINDER

$

$

Not available

28

Toro 153520

Shroud Asm.

$

$

Not available

29

Toro 180929

FLYWHEEL

$

$

Not available

30

Toro 181525

SPACER

$

$

Not available

31

Toro 682546

Pulley Retainer Asm.
(Superseded to 153644)

$

$

Not available

32

Toro 683856

RECOIL PULLEY ASM

$

$

Not available

33

Toro 613102

RECOIL SPRING

$23.99

$

Usually ships in 3-6 days

0

34

Tecumseh 610300

Handle-Pull

$

$

Currently unavailable

35

Toro 613103

ROPE

$

$

Not available

36

Tecumseh 611061

ROPE GUIDE

$

$

Not available

37

Toro 181585

SHROUD - EXTENSION

$

$

Not available

38

Toro 683600

STARTER HSG ASM
(Superseded to 181931)

$

$

Not available

39

Toro 181524

ASM - CRANKSHAFT

$

$

Not available

Toro 180530

PISTON RING

Note: Not illustrated

$

$

Not available

Toro 181520

KIT - ENGINE GASKET

Note: Not illustrated

$

$

Not available

Toro 153308

Kit-Carb. Repair, Walbro
(Superseded to 180602)

Note: Not illustrated

$

$

Not available

Toro 180090

KIT - CARBUERTOR REPAIR

Note: Not illustrated

$

$

Not available

Toro 181069

GASKET-DIAPHRAGM REPAIR

Note: Not illustrated

$

$

Not available

Toro 180091

GASKET-DIAPHRAGM REPAIR

Note: Not illustrated

$

$

Not available

Toro 682048

THROTTLE ADJ ASM

Note: Not illustrated

$

$

Not available

Toro 180092

ASM - THROTTLE ADJUSTMENT

Note: Not illustrated

$

$

Not available

Toro 180986

CAP SET - CARB LIMITER

Note: Not illustrated

$

$

Not available

Toro 181562

CAP SET - CARB LIMITER

Note: Not illustrated

$

$

Not available

Tecumseh 610309

SEAL

Note: Not illustrated

$

$

Currently unavailable
