62902 - Toro 31cc Gas Blower Vacuum (SN: 079000001 - 079999999) (1997) BLOWER ASSEMBLY Parts Diagram

31cc Gas Blower Vacuum

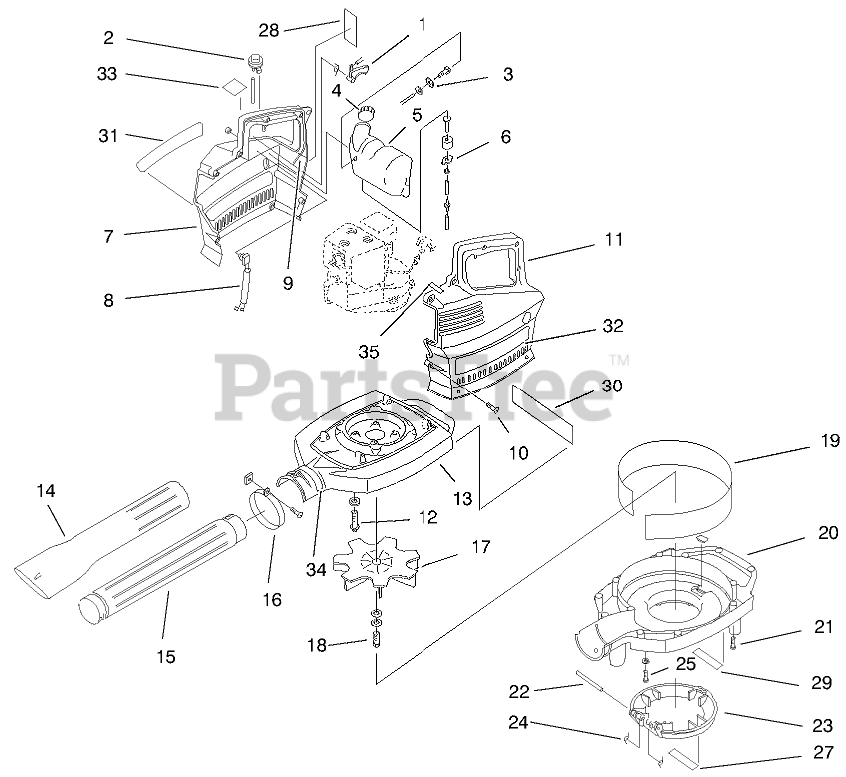

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 683400

Trigger Asm.

$

$

Not available

2

Toro 147351

ASM-PRIMER BULB & HOSE

$

$

Not available

3

Toro 181168

ASSEMBLY - RETURN LINE

$14.99

$

In Stock, only 3 left!

0

4

Toro 180000

FUEL TANK CAP

$

$

Not available

5

Toro 147350

Complete Fuel Tank Asm. (Incl. Ref. #3, 4 and 6)

$84.99

$

Usually ships in 3-6 days

0

6

Toro 183398

Fuel Line Asm.
(Superseded to 683398)

$

$

Not available

7

Toro 181508

COVER - RH ENGINE

$

$

Not available

8

Toro 180450

ASM - SWITCH & LEAD

$

$

Not available

9

Toro 181513

ASM-THROTTLE WIRE & HSG

$

$

Not available

10

Toro 181345

SCREW - MOUNTING

$

$

Not available

11

Toro 181509

COVER - LH ENGINE

$

$

Not available

12

Toro 180058

ASSEMBLY - MOUNTING SCREW

$14.99

$

Usually ships in 3-6 days

0

13

Toro 180478

HOUSING - UPPER BLOWER

$108.99

$

Usually ships in 3-6 days

0

14

Toro 180469

TUBE - BLOWER W/NOZZLE

$45.99

$

Usually ships in 3-6 days

0

15

Toro 180480

TUBE - BLOWER

$

$

Not available

16

Toro 180481

ASSEMBLY - CLAMP

$

$

Not available

17

Toro 147353

IMPELLER

$

$

Not available

18

Toro 181514

ASSEMBLY - MOUNTING BOLT

$

$

Not available

19

Toro 181586

SHIELD - IMPACT

$

$

Not available

20

Toro 180487

HOUSING - LOWER BLOWER

$

$

Not available

21

Toro 181345

SCREW - MOUNTING

$

$

Not available

22

Toro 181516

SHAFT - HINGE

$

$

Not available

23

Toro 181523

COVER - INTAKE

$

$

Not available

24

Toro 147051

SPRING SET

$

$

Not available

25

Toro 181515

ASSEMBLY - MOUNTING SCREW

$

$

Not available

27

Toro 5825

DECAL - WARNING

$

$

Not available

28

Toro 4474

Spacer
(Superseded to 92-3330)

$

$

Not available

29

Toro 5828

DECAL - PUSH TAB

$

$

Not available

30

Toro 92-3334

Decal-Fuel & Oil Mix
(Superseded to 95-5082)

$

$

Not available

31

Toro 6404

DECAL - RH TORO

$

$

Not available

32

Toro 6406

Decal-Toro L.H.
(Superseded to 92-3348)

$

$

Not available

33

Toro 92-3331

DECAL - PRIME

$

$

Not available

34

Toro 92-3328

Decal-Safety Symbol
(Superseded to 95-5297)

$

$

Not available

35

Toro 92-3332

Decal-Warning
(Superseded to 95-5084)

$

$

Not available

Toro 682075

STRAP SHOULDER ACC

Note: Not illustrated

$

$

Not available
