62901 - Lawn-Boy Gas Blower Vacuum (SN: 890000001 - 899999999) (1998) BLOWER ASSEMBLY Parts Diagram

Gas Blower Vacuum

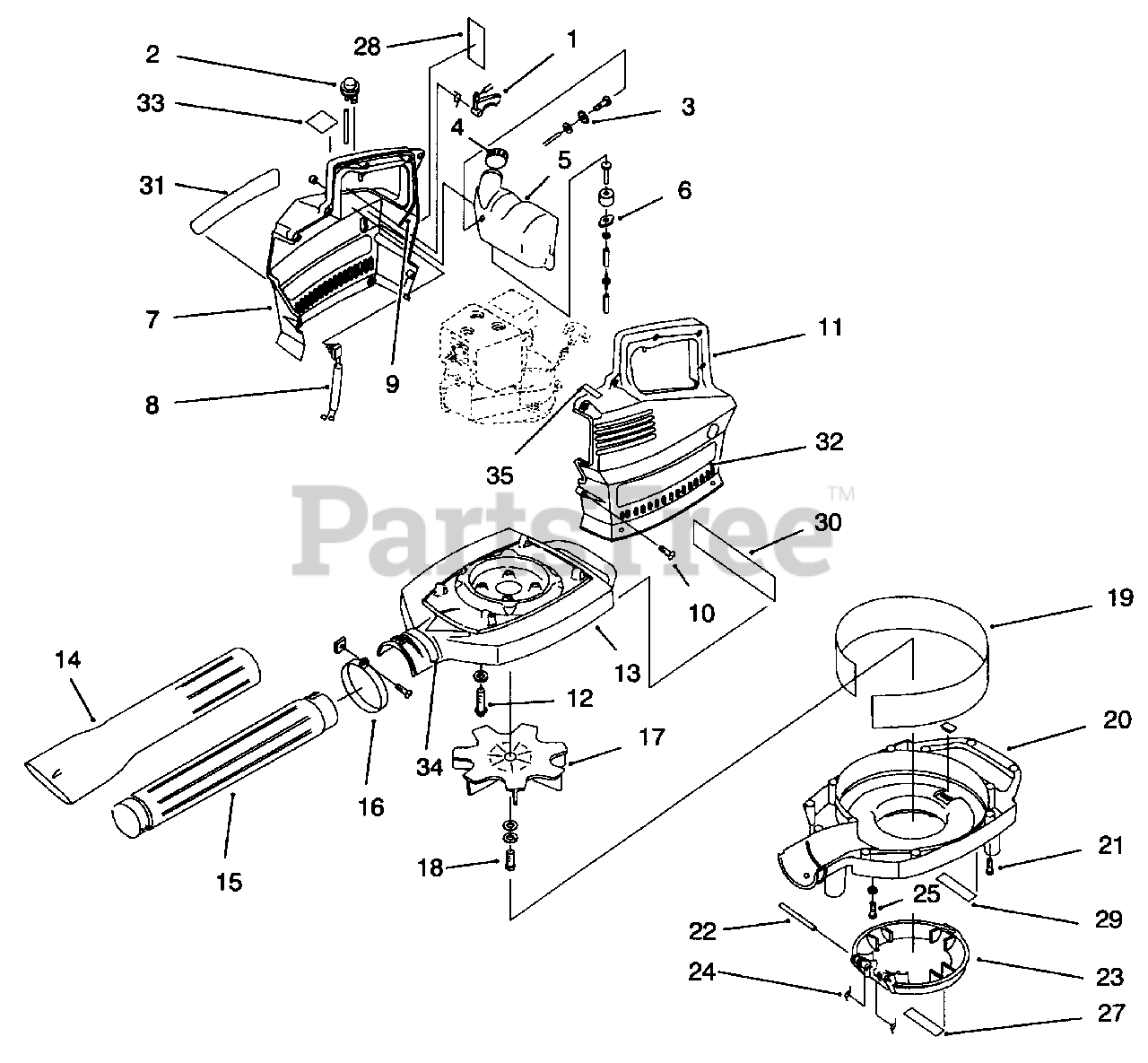

BLOWER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 683400

Trigger Asm.

$

$

Not available

2

Lawn-Boy 147351

ASM-PRIMER BULB & HOSE

$

$

Not available

3

Lawn-Boy 181168

ASSEMBLY - RETURN LINE

$12.99

$

In Stock, only 3 left!

0

4

Lawn-Boy 180000

FUEL TANK CAP

$

$

Not available

5

Lawn-Boy 147350

Complete Fuel Tank Asm. (Incl. Ref. #3, 4 and 6)

$78.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 183398

Fuel Line Asm.
(Superseded to 683398)

$

$

Not available

7

Lawn-Boy 181508

COVER - RH ENGINE

$

$

Not available

8

Lawn-Boy 180450

ASM - SWITCH & LEAD

$

$

Not available

9

Lawn-Boy 181513

ASM-THROTTLE WIRE & HSG

$

$

Not available

10

Lawn-Boy 181345

SCREW - MOUNTING

$

$

Not available

11

Lawn-Boy 181509

COVER - LH ENGINE

$

$

Not available

12

Lawn-Boy 180058

ASSEMBLY - MOUNTING SCREW

$12.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 180478

HOUSING - UPPER BLOWER

$102.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 180469

TUBE - BLOWER W/NOZZLE

$42.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 180480

TUBE - BLOWER

$

$

Not available

16

Lawn-Boy 180481

ASSEMBLY - CLAMP

$

$

Not available

17

Lawn-Boy 147353

IMPELLER

$

$

Not available

18

Lawn-Boy 181514

ASSEMBLY - MOUNTING BOLT

$

$

Not available

19

Lawn-Boy 181586

SHIELD - IMPACT

$

$

Not available

20

Lawn-Boy 180487

HOUSING - LOWER BLOWER

$

$

Not available

21

Lawn-Boy 181345

SCREW - MOUNTING

$

$

Not available

22

Lawn-Boy 181516

SHAFT - HINGE

$

$

Not available

23

Lawn-Boy 181523

COVER - INTAKE

$

$

Not available

24

Lawn-Boy 147051

SPRING SET

$

$

Not available

25

Lawn-Boy 181515

ASSEMBLY - MOUNTING SCREW

$

$

Not available

27

Lawn-Boy 5825

DECAL - WARNING

$

$

Not available

28

Lawn-Boy 4474

Spacer
(Superseded to 92-3330)

$

$

Not available

29

Lawn-Boy 5828

DECAL - PUSH TAB

$

$

Not available

30

Lawn-Boy 92-3334

Decal-Fuel & Oil Mix
(Superseded to 95-5082)

$

$

Not available

31

Lawn-Boy 6404

DECAL - RH TORO

$

$

Not available

32

Lawn-Boy 6406

Decal-Toro L.H.
(Superseded to 92-3348)

$

$

Not available

33

Lawn-Boy 92-3331

DECAL - PRIME

$

$

Not available

34

Lawn-Boy 92-3328

Decal-Safety Symbol
(Superseded to 95-5297)

$

$

Not available

35

Lawn-Boy 92-3332

Decal-Warning
(Superseded to 95-5084)

$

$

Not available

Lawn-Boy 682075

STRAP SHOULDER ACC

Note: Not Illustrated

$

$

Not available
