62900 - Toro Lawn Vacuum, 5hp (SN: 003000001 - 003999999) (1973) ENGINE AND HOPPER ASSEMBLY Parts Diagram

Lawn Vacuum, 5hp

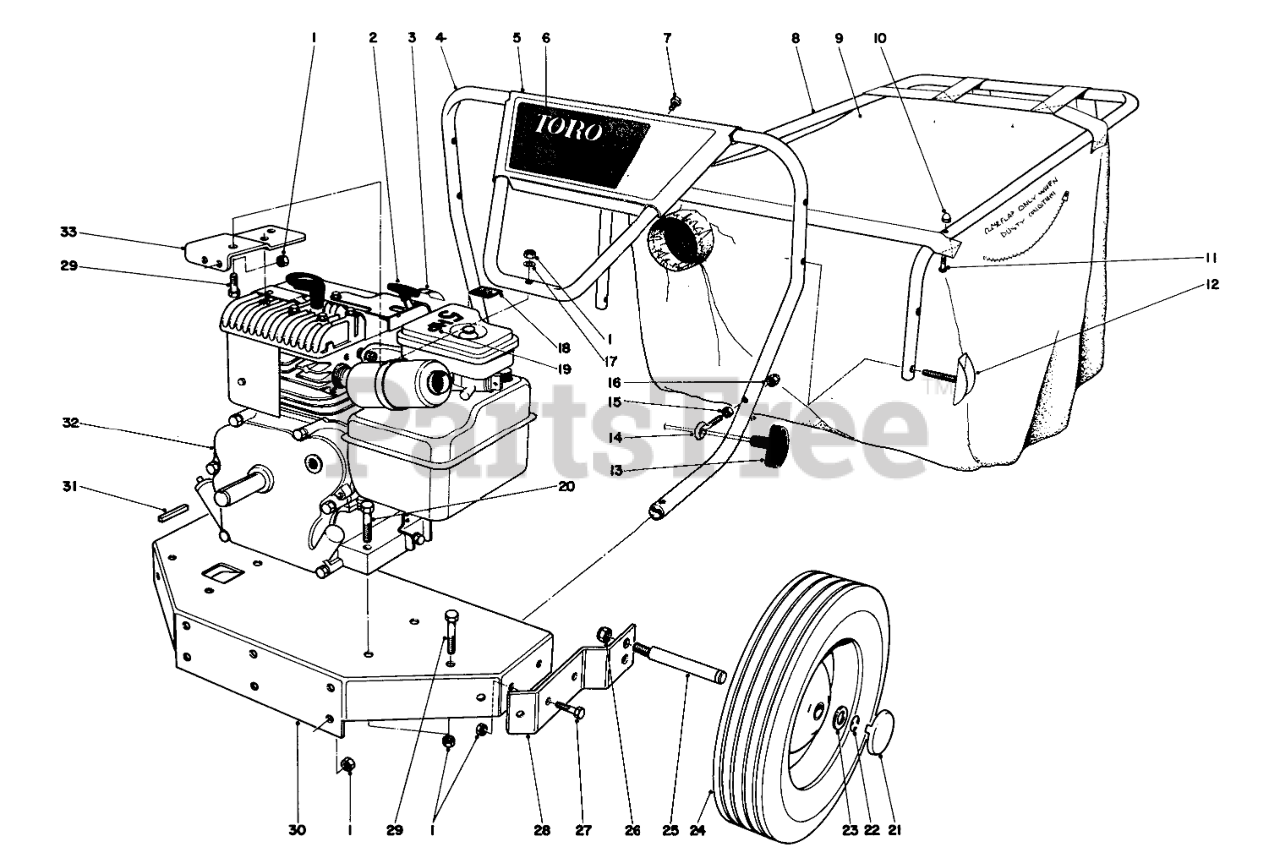

ENGINE AND HOPPER ASSEMBLY Parts Diagram

  • Title

1

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 19-0170

Throttle Control Knob

$

$

Currently unavailable

3

Toro 19-1070

Throttle Decal

$

$

Currently unavailable

4

Toro 19-0120

Lower Handle

$

$

Currently unavailable

5

Toro 19-0140

Handle Cover

$

$

Currently unavailable

6

Toro 19-0150

Decal, Toro

$

$

Currently unavailable

7

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

8

Toro 19-0160

Upper Handle

$

$

Currently unavailable

9

Toro 19-0130

Vacuum Bag
(Superseded to 5-9119)

$

$

Not available

10

Toro 19-1010

Acorn Nut

$

$

Currently unavailable

11

Toro 19-1000

Screw

$

$

Currently unavailable

12

Toro 19-0960

Wing Bolt

$

$

Currently unavailable

13

Rubber Handle

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

14

Toro 19-0950

Eye Bolt

$

$

Currently unavailable

15

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

16

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

17

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 19-1060

Caution Decal

$

$

Currently unavailable

19

Toro 19-1020

Decal 5 H.P.

$

$

Currently unavailable

20

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

21

Toro 19-0090

Hub Cap

$

$

Currently unavailable

22

Toro 19-0940

Retaining Ring

$

$

Not available

23

Toro 19-0930

Flat Washer

$

$

Currently unavailable

24

Toro 19-0080

Rear Wheel & Tire

$

$

Currently unavailable

25

Toro 19-0070

Axle, Rear

$

$

Currently unavailable

26

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 4 left!

0

27

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

28

Toro 19-0060

Rear Wheel Bracket

$

$

Currently unavailable

29

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

30

Toro 19-0100

Engine & Wheel Mounting Plate

$

$

Currently unavailable

31

Toro 19-1030

Key
(Superseded to 5-1865)

$

$

Not available

32

Toro 19-0420

Engine

$

$

Currently unavailable

33

Toro 19-0190

Bracket

$

$

Currently unavailable

Toro 19-1190

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
