62850 - Toro Shredder (SN: 002000001 - 002999999) (1972) REWIND STARTER Parts Diagram

Shredder

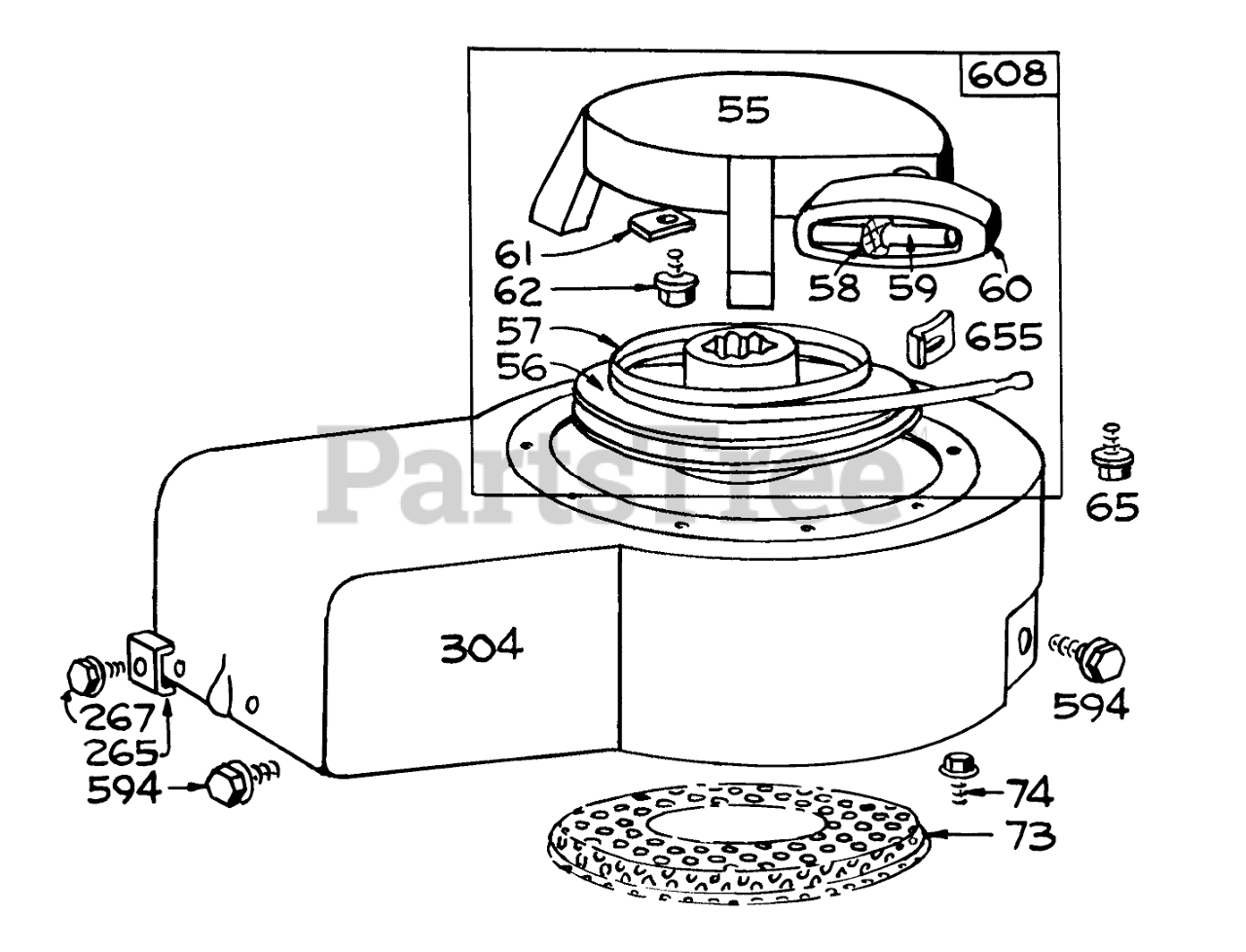

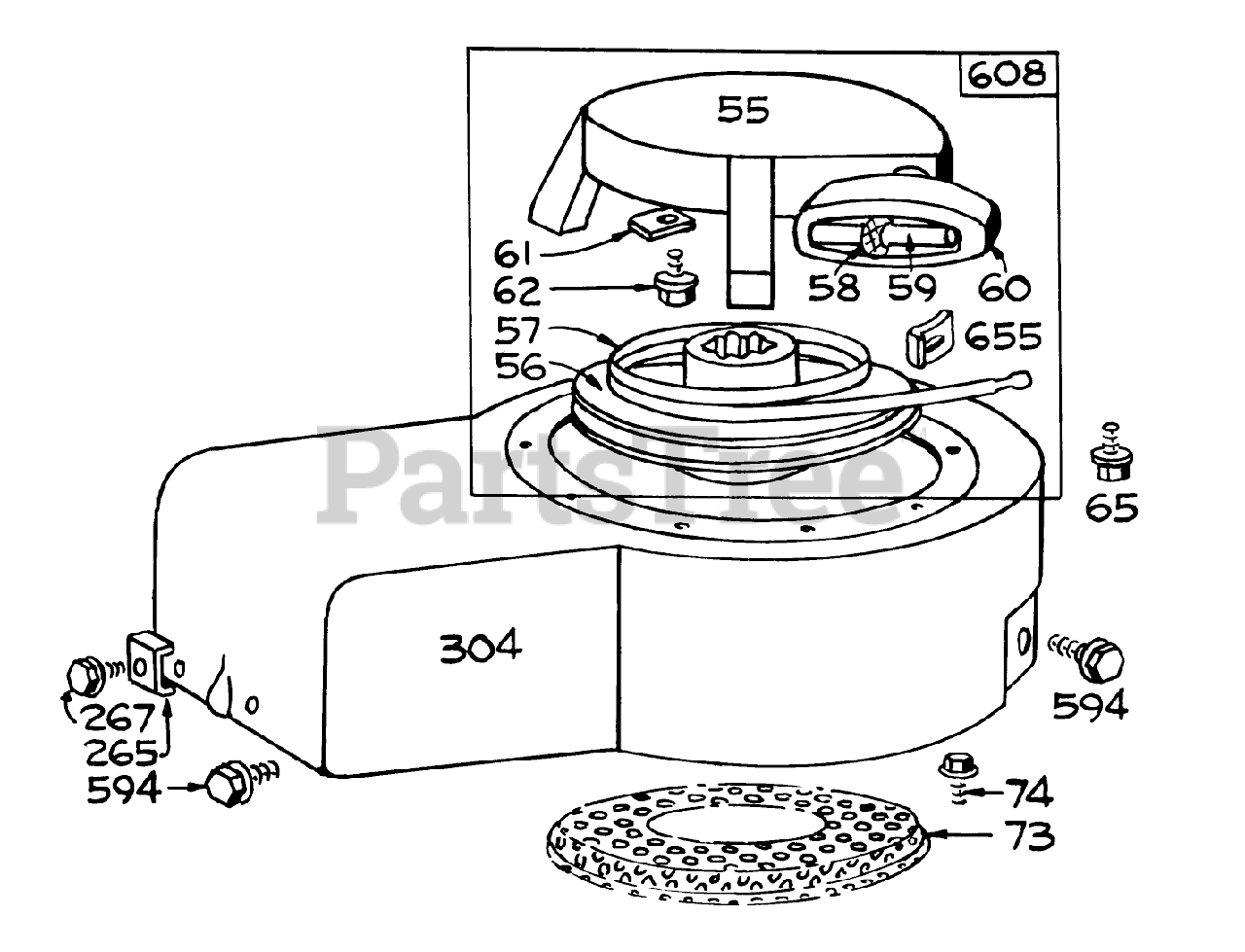

REWIND STARTER Parts Diagram

  • Title

55

Briggs & Stratton 299431

Housing-Rewind Starter

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66564

Rope-Rewind Starter

$

$

Not available

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 10

0

61

Briggs & Stratton 68848

Bumper-Starter Pulley
(Superseded to 68848S)

$1.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93254

Screw-Pulley Bumper Mtg.

$3.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

73

Briggs & Stratton 221923

Screen-Rewind Starter

$

$

Not available

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, only 4 left!

0

267

Briggs & Stratton 93469

Screw
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

304

Toro 299332

Housing-Blower

$

$

Currently unavailable

594

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

608

Toro 299334

Starter Assy.-Rewind

$

$

Currently unavailable

655

Briggs & Stratton 221014

Anchor Spring

$5.99

$

Usually ships in 2-12 days

0
