6284 (54BD64H-710) - Cub Cadet Compact Tractor Battery And Electrical Parts Diagram

Compact Tractor

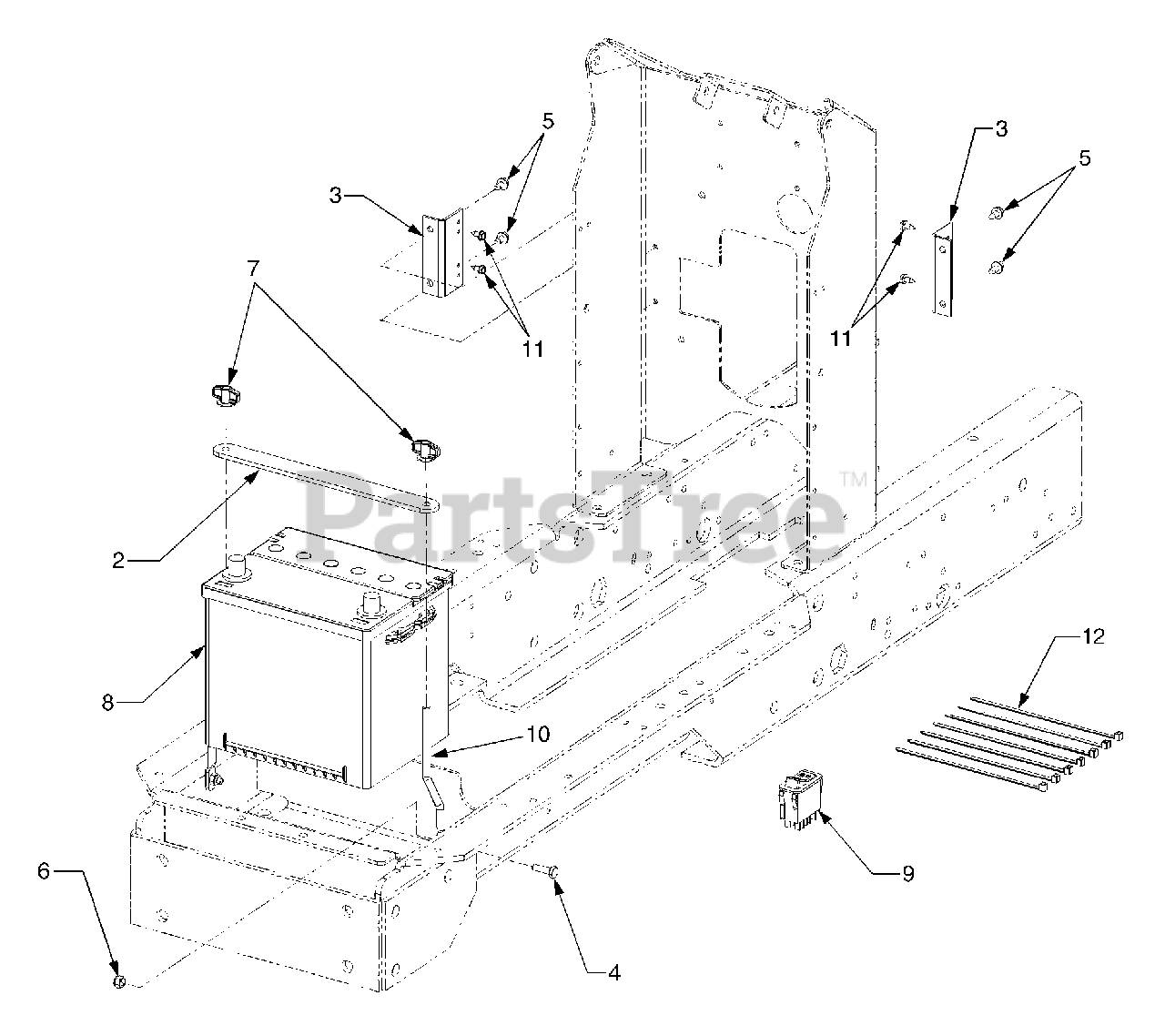

Battery And Electrical Parts Diagram

  • Title

Cub Cadet 629-04135

Harness, Main Wire
(Superseded to 929-04135)

Note: Not Shown

$

$

Not available

2

Cub Cadet 703-4104-0637

Strap, Battery Holddown

$

$

Not available

3

Cub Cadet 703-05695

Bracket, Relay Mounting

Variations

Cub Cadet 703-05695-0637

BRACKET-RELAY MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 710-0206

Screw, Hex Cap, 1/4-10 x .875 GR5

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0599

Screw, Hex Wash Hd. Tapp 1/4-20 x 5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0324

Nut, Hex Nylon Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

7

Cub Cadet 712-0421

Nut, Wing w/Bell Washer, 5/16-18

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 725-3174

Battery, 500 cca Dry
(Superseded to 925-04514)

$314.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 725-3273

Switch, PTO Reverse

$

$

Not available

10

Cub Cadet 747-3433

Rod, Battery Hold down

$

$

Not available

11

Cub Cadet 710-0224

Screw, Hex Tapp, #10-16 x .5
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 725-0157

Tie , Cable

$3.99

$

In Stock, Qty 20+

0
