6284 (54BD64H-710) - Cub Cadet Compact Tractor Axle Assembly 4WD (Part 2) Parts Diagram

Compact Tractor

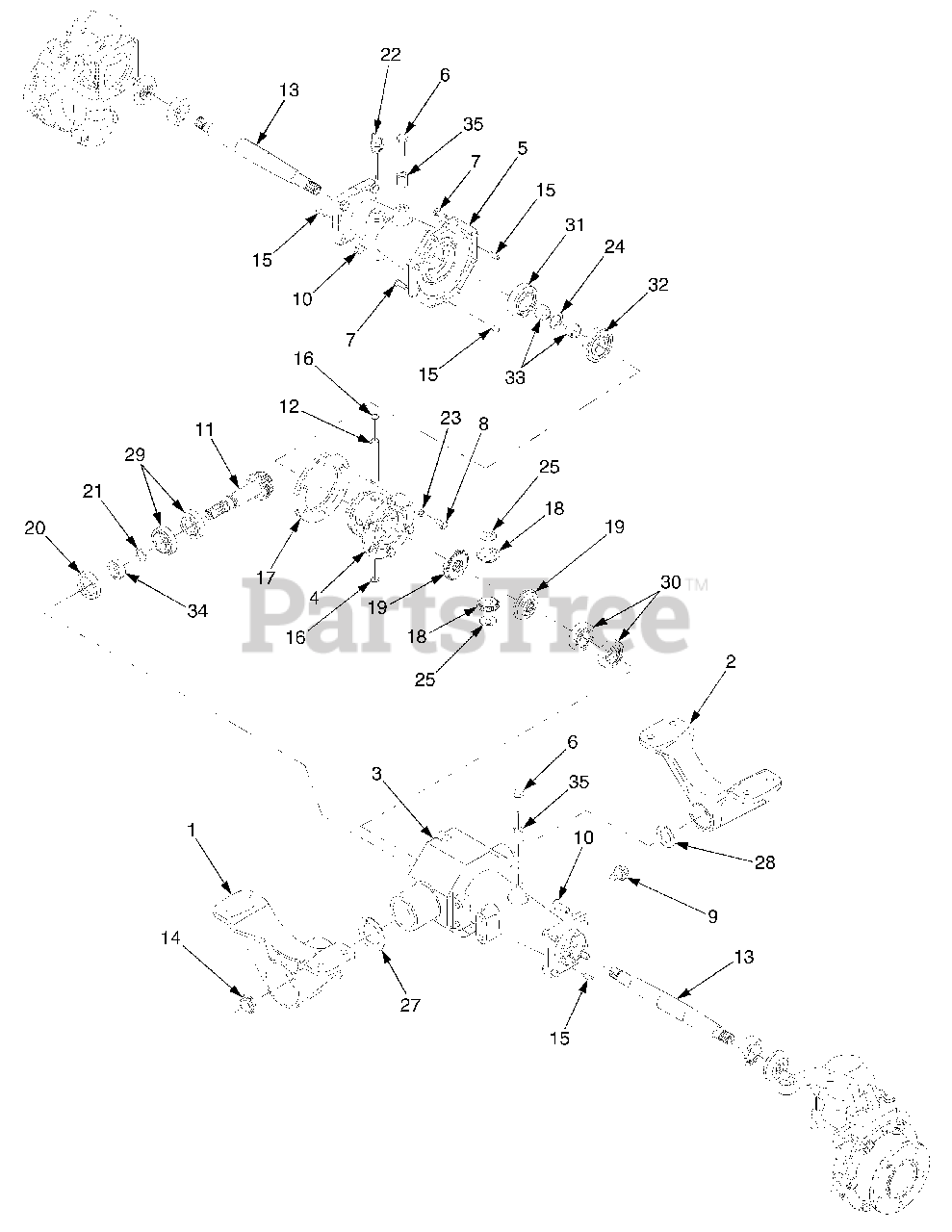

Axle Assembly 4WD (Part 2) Parts Diagram

  • Title

1

Cub Cadet 603-04059

Bracket, Front Axle Mtg. - Rear
(Superseded to 903-04059)

$

$

Not available

1

Cub Cadet 741-04036

Bearing, Sleeve
(Superseded to 941-04036)

Note: not shown

$

$

Not available

2

Cub Cadet 603-04058

Bracket, Front Axle Mtg. - Front
(Superseded to 903-04058)

$

$

Not available

2

Cub Cadet 741-04037

Bearing, Sleeve
(Superseded to 941-04037)

Note: not shown

$

$

Not available

3

Cub Cadet 619-04009A

Housing, Main Axle RH
(Superseded to 919-04009A)

$

$

Not available

4

Cub Cadet 619-04120

Housing, Differential
(Superseded to 919-04120)

$

$

Not available

5

Cub Cadet 619-04019A

Housing, Axle LH
(Superseded to 919-04019A)

$

$

Not available

6

Cub Cadet 710-1313

Screw, Hex Cap, M10-1.5 x 35 GR8.8

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-1682

Screw, Hex Cap, M8-1.25 x 25 GR8.8

$

$

Not available

8

Cub Cadet 710-3175

Screw, Hex Cap, M8-1.25 x 14 GR8.8

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-1633

Plug, Screw, M14-1.5 x .827

$14.99

$

In Stock, only 2 left!

0

10

Cub Cadet 710-04655

Screw, Hex Lock, M10-1.5 x 30

$

$

Not available

11

Cub Cadet 711-04140

Shaft, Input, 6T
(Superseded to 911-04140)

$

$

Not available

12

Cub Cadet 711-04384

Shaft, Cross
(Superseded to 911-04384)

$

$

Not available

13

Cub Cadet 711-04107

Shaft, Axle
(Superseded to 911-04107)

$233.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-04043

Nut, Special, 24mm

$36.99

$

In Stock, only 1 left!

0

15

Cub Cadet 715-04014

Pin, Dowel, 8mm x 20mm
(Superseded to 915-04014)

$

$

Not available

16

Cub Cadet 716-04045

Ring, Internal Retaineng, 14mm

$

$

Not available

17

Cub Cadet 717-04064

Gear, Bevel, 34T
(Superseded to 917-04064)

$

$

Not available

18

Cub Cadet 717-04046

Gear, Miter, 10T
(Superseded to 917-04046)

$81.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 717-04047

Gear, Miter, 16T
(Superseded to 917-04047)

$

$

Not available

20

Cub Cadet 721-04056

Seal, Oil, 52mm x 35mm x 10mm
(Superseded to 921-04056)

$

$

Not available

21

Cub Cadet 721-04067

O-Ring, 19mm x 3mm
(Superseded to 921-04067)

$10.99

$

In Stock, only 1 left!

0

22

Cub Cadet 731-04336

Dipstick, Front Axle
(Superseded to 931-04336)

$

$

Not available

22

Cub Cadet 721-04058

Seal, Washer

Note: not shown

$

$

Not available

23

Cub Cadet 736-0264

Washer, Flat, .33 x .63 x .0635

$6.99

$

In Stock, only 2 left!

0

24

Cub Cadet 736-0287

Washer, Flat, .793 x 1.24 x .06 Hdn.

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 736-04098

Washer, Special Spherical
(Superseded to 936-04098)

$

$

Not available

26

Cub Cadet 736-0562

Washer, Flat, .793 x 1.37 x .005
(Superseded to 936-0562)

Note: AR

$8.49

$

In Stock, only 3 left!

0

26

Cub Cadet 736-0563

Washer, Flat, .793 x 1.37 x .010

Note: AR

$13.99

$

In Stock, only 1 left!

0

26

Cub Cadet 736-0564

Washer, Flat, .793 x 1.37 x .015

Note: AR

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-0565

Washer, Flat, .793 x 1.37 x .020

Note: AR

$

$

Not available

26

Cub Cadet 736-0566

Washer, Flat, .793 x 1.37 x .025

Note: AR

$6.99

$

In Stock, Qty 13

0

27

Cub Cadet 741-04038

Washer, Thrust, 1.66 x 2.59 x .059
(Superseded to 941-04038)

$

$

Not available

28

Cub Cadet 741-04039

Washer, Thrust, 1.03 x 1.73 x .059
(Superseded to 941-04039)

$

$

Not available

29

Cub Cadet 741-04042

Bearing, Tapered Roller w/ Race
(Superseded to 941-04042)

$

$

Not available

30

Cub Cadet 741-04044

Bearing, Ball
(Superseded to 941-04044)

$30.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 741-04045

Bearing, Ball
(Superseded to 941-04045)

$

$

Not available

32

Cub Cadet 741-04046

Bearing, Ball
(Superseded to 941-04046)

$

$

Not available

33

Cub Cadet 750-04133

Spacer, 20 x 25 x 16mm
(Superseded to 950-04133)

$

$

Not available

34

Cub Cadet 750-04164A

Spacer, 25 x 35 x 12mm
(Superseded to 950-04164A)

$

$

Not available

35

Cub Cadet 750-0750

Spacer, .5 x .75 x .86
(Superseded to 950-0750)

$

$

Not available

Cub Cadet 737-3065

Oil, 85W-140
(Superseded to 76935DX6US)

Note: 2.5 qt., not shown

$

$

Not available
