6284 (54AT64H-710) - Cub Cadet Compact Tractor Fender And Running Board Parts Diagram

Compact Tractor

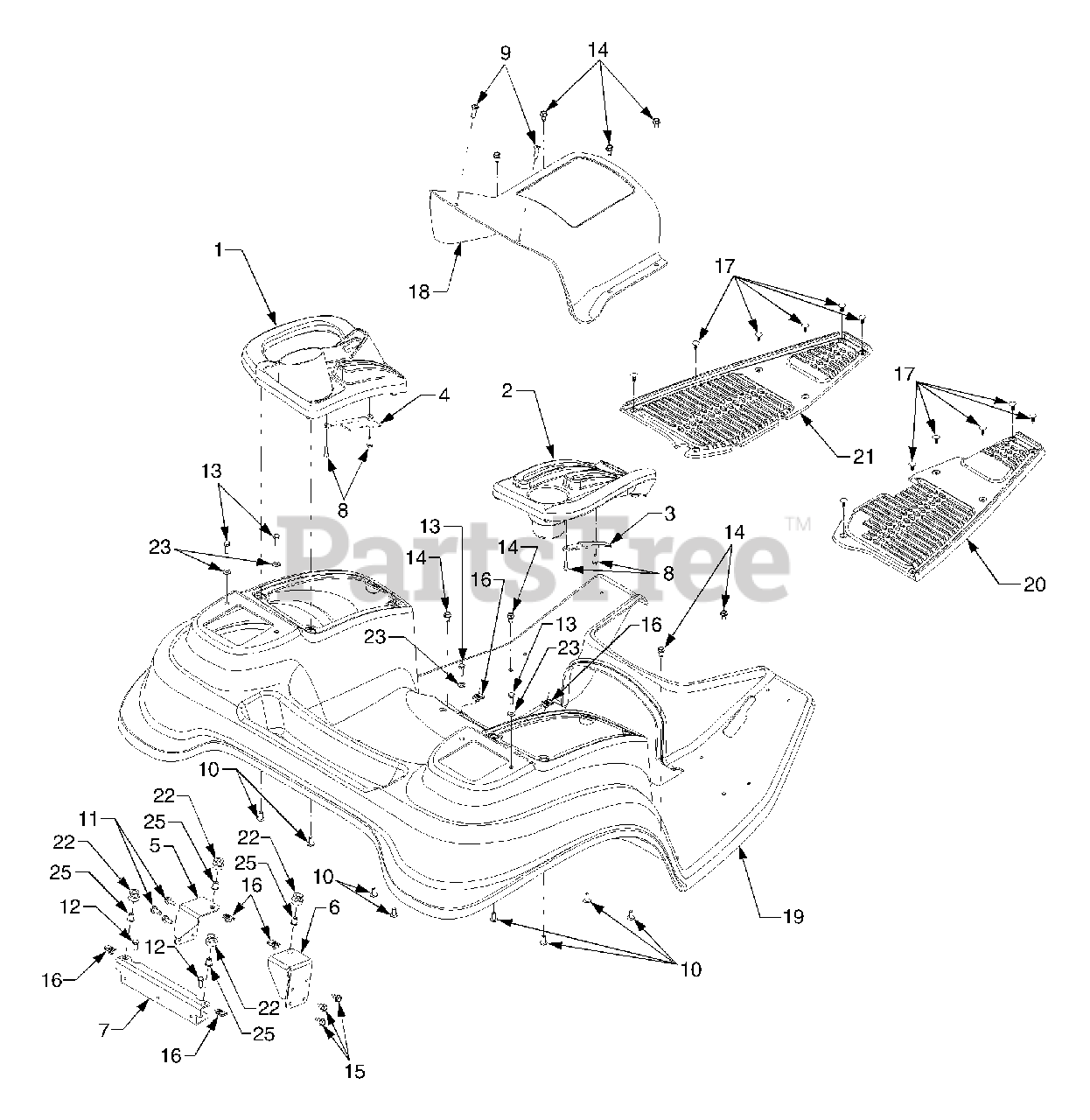

Fender And Running Board Parts Diagram

  • Title
1

Cub Cadet 631-04006A

Cover, Fender, LH
(Superseded to 931-04006A)

$

$

Not available

2

Cub Cadet 631-04169

Cover, Fender, RH
(Superseded to 931-04169)

$

$

Not available

3

Cub Cadet 703-05296

Bracket, Shift Gate (Hi-Lo)
(Superseded to 703-05296-0637)

Variations

Cub Cadet 703-05296-0637

GATE-HI LO SHIFT - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-05297

Bracket, Shift Gate (PTO)

Variations

Cub Cadet 703-05297-0637

GATE-PTO SHIFT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-3451

Bracket, Seat Mtg. LH

$

$

Not available

6

Cub Cadet 703-3572

Bracket, Seat Mtg. RH

$

$

Not available

7

Cub Cadet 703-3754

Bracket, Rear Seat Support

$

$

Not available

8

Cub Cadet 710-0895

Screw, Hex Wash Hd Tapp, 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0971

Screw, Pan Hd. 5/16-18 x 1.0

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-1242

Screw, Truss Phillips Hd. 5/16-14 x .75

$4.99

$

In Stock, Qty 19

0

11

Cub Cadet 710-1260A

Screw, Hex Wash Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3008

Screw, Hex Cap 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3038

Screw, Hex Cap 5/16-18 x .875 GR5

$4.99

$

In Stock, only 3 left!

0

14

Cub Cadet 710-0604A

Screw, Hex Wash Hd. Tapp 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3021

Screw, Hex Wash Hd. Tapp 5/16-18 x .625

$

$

Not available

16

Cub Cadet 726-0211

Speed Nut, 'U' Type, 5/16-18

$4.49

$

In Stock, only 1 left!

0

17

Cub Cadet 726-3046

Clip, Ratchet Fastener

$3.99

$

In Stock, Qty 16

0

18

Cub Cadet 731-3324A

Cover, Fender

$

$

Not available

Cub Cadet 777S30630

Graphic, Warning

$

$

Not available

$

$

Not available

Cub Cadet 777S30635

Graphic, Warning

$

$

Not available

Cub Cadet 777D08740

Graphic, Series 6000

$

$

Not available

Cub Cadet 777D07973

Graphic, PosiTrak

$

$

Not available

Cub Cadet 777D08642

Graphic, Reflector LH

$

$

Not available

Cub Cadet 777D08643

Graphic, Reflector RH

$

$

Not available

20

Cub Cadet 735-0669

Pad, Floor, RH

$

$

Not available

21

Cub Cadet 735-0670

Pad, Floor, LH

$

$

Not available

22

Cub Cadet 735-0690

Grommet, .4375 ID x .75

$11.99

$

In Stock, only 1 left!

0

23

Cub Cadet 736-3089

Washer, Flat, .345 x 1.0 x .100

$

$

Not available

24

Cub Cadet 750-3310

Spacer, Flange, .3125 x .4375 x .625

$5.49

$

Usually ships in 3-6 days

0
