6284 (54AT64H-710) - Cub Cadet Compact Tractor Dash Panel And Steering Wheel Parts Diagram

Compact Tractor

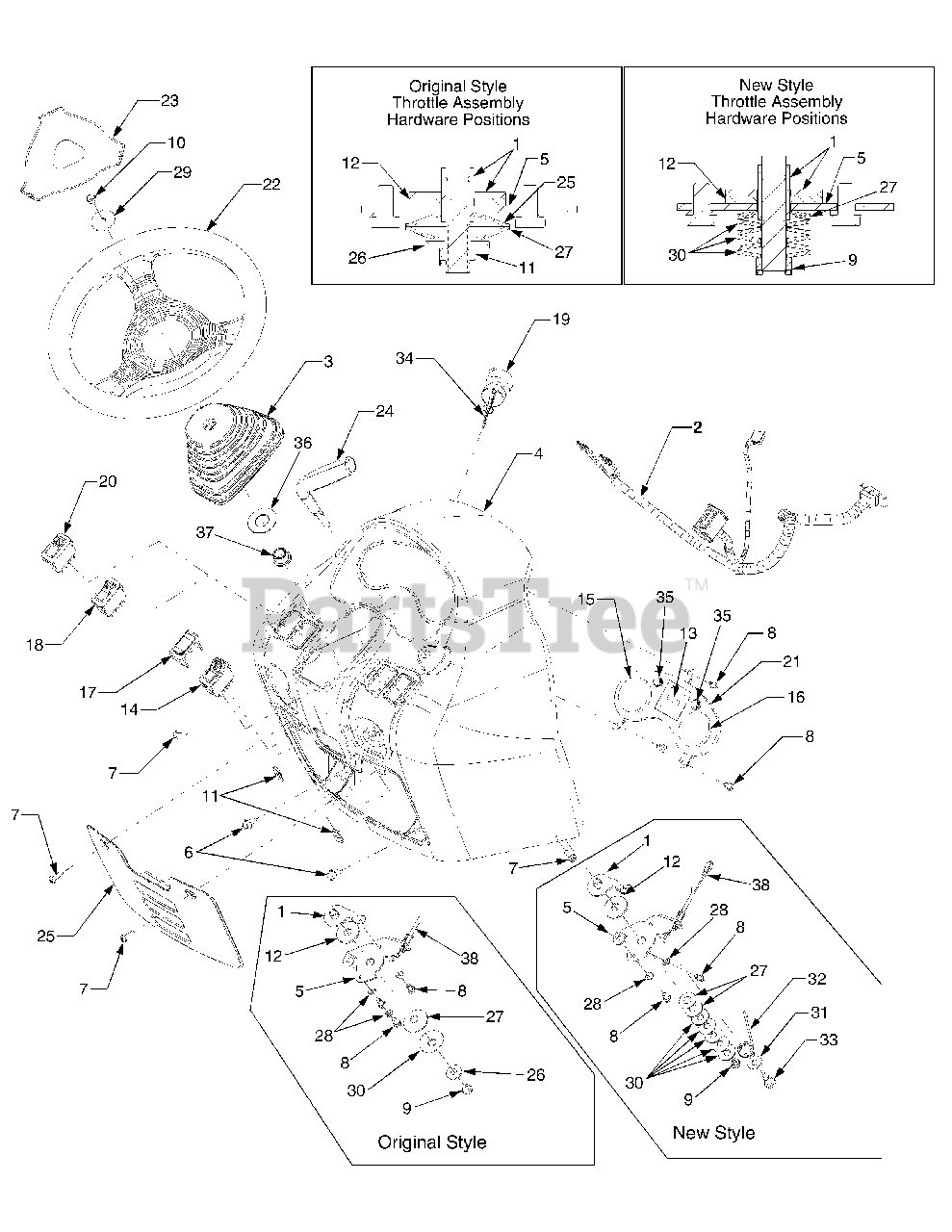

Dash Panel And Steering Wheel Parts Diagram

  • Title
1

Cub Cadet 603-0711A

Bracket, Throttle Cable - Original Style
(Superseded to 603-04305)

Variations

Cub Cadet 603-0711A-0637

USE 603-04305 TAB ASM-THROTTL - POWDER BLACK (0637)

$

$

Not available

$

$

1

Cub Cadet 603-04305

Bracket, Throttle Cable - New Style

$

$

Not available

2

Cub Cadet 629-04112

Wire Harness, Dash

$

$

Not available

3

Cub Cadet 631-0076

Boot, Steering Shaft

$

$

Not available

4

Cub Cadet 631-04007B

Dash
(Superseded to 931-04007B)

$

$

Not available

5

Cub Cadet 703-05132A

Bracket, Throttle Mounting

$34.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0604A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0924

Screw, Pan Hd., 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 x .5 GR5

$4.99

$

In Stock, Qty 11

0

9

Cub Cadet 712-0116

Nut, Hex Insert Jam Lock, 3/8-24 ..

$4.99

$

In Stock, Qty 6

0

10

Cub Cadet 712-0237

Nut, Hex Lock, 5/16-24

$4.99

$

In Stock, only 4 left!

0

11

Cub Cadet 712-0292

Nut, Speed, 1/4-20

$10.99

$

In Stock, only 2 left!

0

12

Cub Cadet 723-3013

Washer, Friction, .515 x 1.5 x .12
(Superseded to 923-3013)

$

$

Not available

13

Cub Cadet 725-04022B

Meter, Hour/Indicator
(Superseded to 925-04022B)

$146.99

$

In Stock, Qty 5

0

14

Cub Cadet 725-04076

Switch, PTO
(Superseded to 925-04076)

$111.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 725-04241

Gauge, Fuel

$

$

Not available

16

Cub Cadet 725-04242

Gauge, RPM

$

$

Not available

$

$

Not available

18

Cub Cadet 725-3274

Switch, Headlight

$68.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 725-3277

Switch, Ignition
(Superseded to 925-3277)

$103.99

$

In Stock, only 1 left!

0

20

Cub Cadet 725-3279B

Switch, Hazard

$65.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 731-05066

Panel, Meter

$

$

Not available

21

Cub Cadet 777I22460

Graphic, Panel

Note: not shown

$

$

Not available

22

Cub Cadet 731-3209

Steering Wheel, Soft Grip

$

$

Not available

23

Cub Cadet 731-3210

Cover, Steering Wheel
(Superseded to 731-06459)

$21.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 731-3298

Handle, Throttle

$54.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-3344

Panel, Dash Insert

$

$

Not available

26

Cub Cadet 736-3052

Washer, Flat, .406 x 1.0 x .105

Note: Used Only with original style throttle control assembly

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0112

Washer, Belleville, .531 x 1.62 x .045

Note: Used Only with original style throttle control assembly

$9.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0255

Washer, Belleville, .51 x 1.14 x .04

Note: Used Only with new style throttle control assembly

$4.99

$

In Stock, only 3 left!

0

28

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

Cub Cadet 736-04062

Washer, Flat, .344 x 1.5 x .1
(Superseded to 936-04062)

$

$

Not available

30

Cub Cadet 736-04164

Washer, Spher., .39 x 1.62 x .045

Note: Used Only with original style throttle control assembly

$

$

Not available

30

Cub Cadet 736-0331

Washer, Belleville, .39 x 1.13 x .062

Note: Used Only with new style throttle control assembly

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-3072

Washer, Flat, .38 x .93 x .110 Hdn

Note: Used Only with new style throttle control assembly

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 732-04288

Spring, Torsion

Note: Used Only with new style throttle control assembly

$9.49

$

In Stock, only 1 left!

0

33

Cub Cadet 738-04170

Screw, Shoulder, .374 x .56
(Superseded to 738-05034)

Note: Used Only with new style throttle control assembly

$7.49

$

In Stock, only 1 left!

0

34

Cub Cadet 759-3950

Key Set, Ingition
(Superseded to 959-3950)

$

$

Not available

35

Cub Cadet 725-04243

Lamp, Yellow Panel - Original Style
(Superseded to 925-04288)

$71.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 725-04288

Lamp, Yellow Panel - New Style
(Superseded to 925-04288)

$71.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0514

Washer, Flat, .885 x1.85 x .06

$

$

Not available

37

Cub Cadet 748-0176

Bearing, Flange, .63 ID x .62 LG

$9.99

$

In Stock, only 1 left!

0

38

Cub Cadet 746-04126

Cable, Throttle

$33.99

$

In Stock, only 1 left!

0

Cub Cadet 725-04218

Glow Timer Relay
(Superseded to 925-04218)

Note: not shown

$

$

Not available
