6284 (54AD64H-710) - Cub Cadet Compact Tractor Seat Assembly Parts Diagram

Compact Tractor

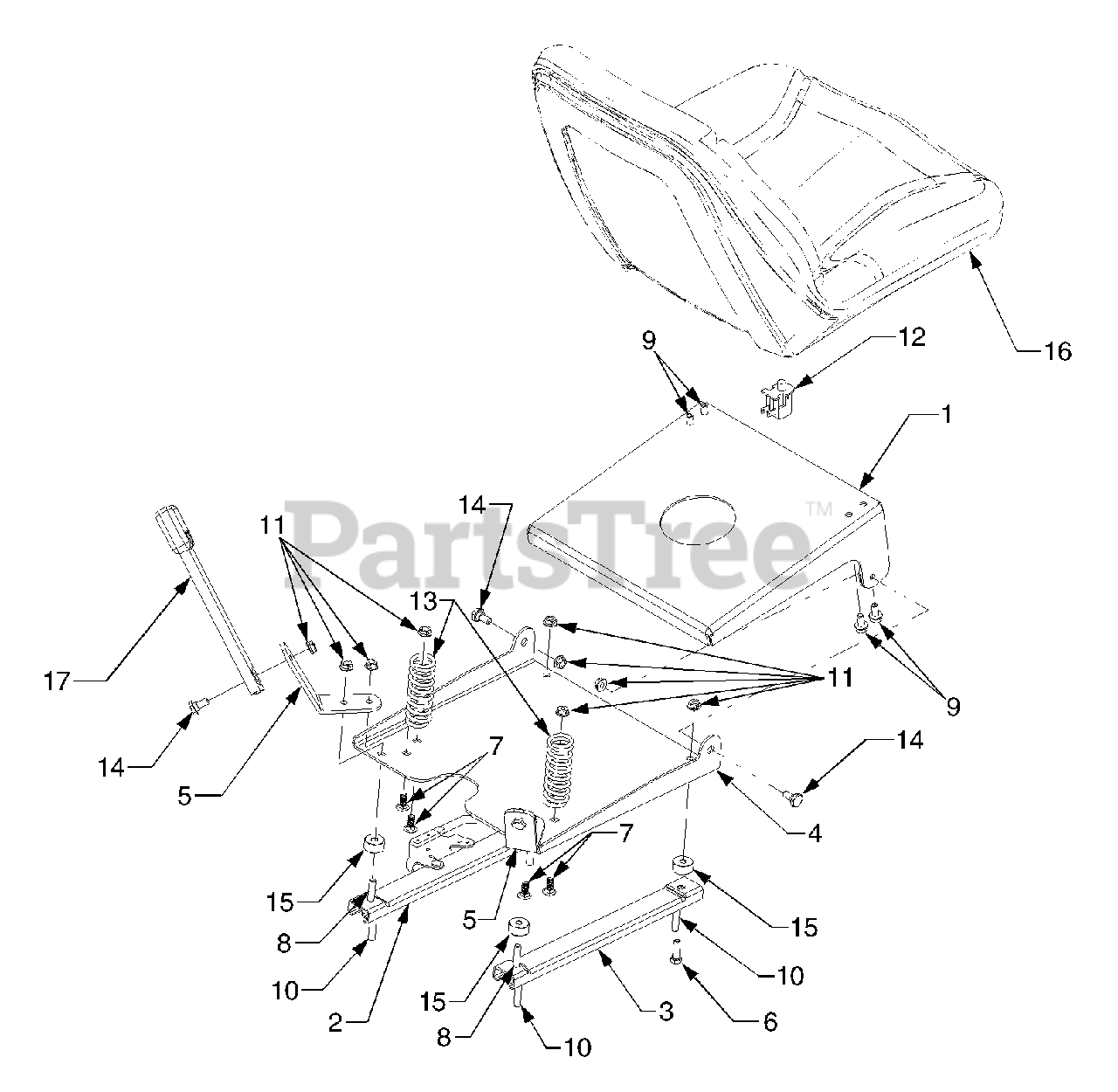

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0860-0637

Support, Seat - Upper

$

$

Not available

2

Cub Cadet 603-0866

Track Ass'y., Seat w/Latch

$

$

Not available

3

Cub Cadet 703-3208

Track Ass'y., Seat w/o Latch

$73.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-3681A

Tray, Lower Seat

$

$

Not available

5

Cub Cadet 703-3711

Bracket, Seat Belt

$

$

Not available

6

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 GR5

$3.99

$

In Stock, only 4 left!

0

7

Cub Cadet 710-0451

Screw, Carriage, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0528

Screw, Hex Cap, 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0759

Screw, Hex Flange, 5/16-18 x .625 GR5

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3250

Screw, Socket Hd Cap, 5/16-18 x 1.5

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 725-3167

Switch, Snap Mount (N.O.)
(Superseded to 925-3167)

$14.99

$

In Stock, only 2 left!

0

13

Cub Cadet 732-3080A

Spring, Compression, 1.28 x 3.5

$13.99

$

In Stock, Qty 12

0

14

Cub Cadet 738-0140

Screw, Shoulder, .435 x .178-5/16-18

$5.99

$

In Stock, Qty 15

0

15

Cub Cadet 750-0258

Spacer, .315 x .750 x .375

$11.99

$

In Stock, only 1 left!

0

16

Cub Cadet 757-04006

Seat, High Back
(Superseded to 957-04006)

$

$

Not available

Cub Cadet 777D06883

Graphic, Cub Cadet

$17.99

$

In Stock, only 2 left!

0

Cub Cadet 777D01782

Graphic, USA

$

$

Not available

17

Cub Cadet 757-3013

Belt Assembly, Seat

$

$

Not available
