6284 (54AD64H-710) - Cub Cadet Compact Tractor Hood, Grille & Side Panels 1C315G & Before Parts Diagram

Compact Tractor

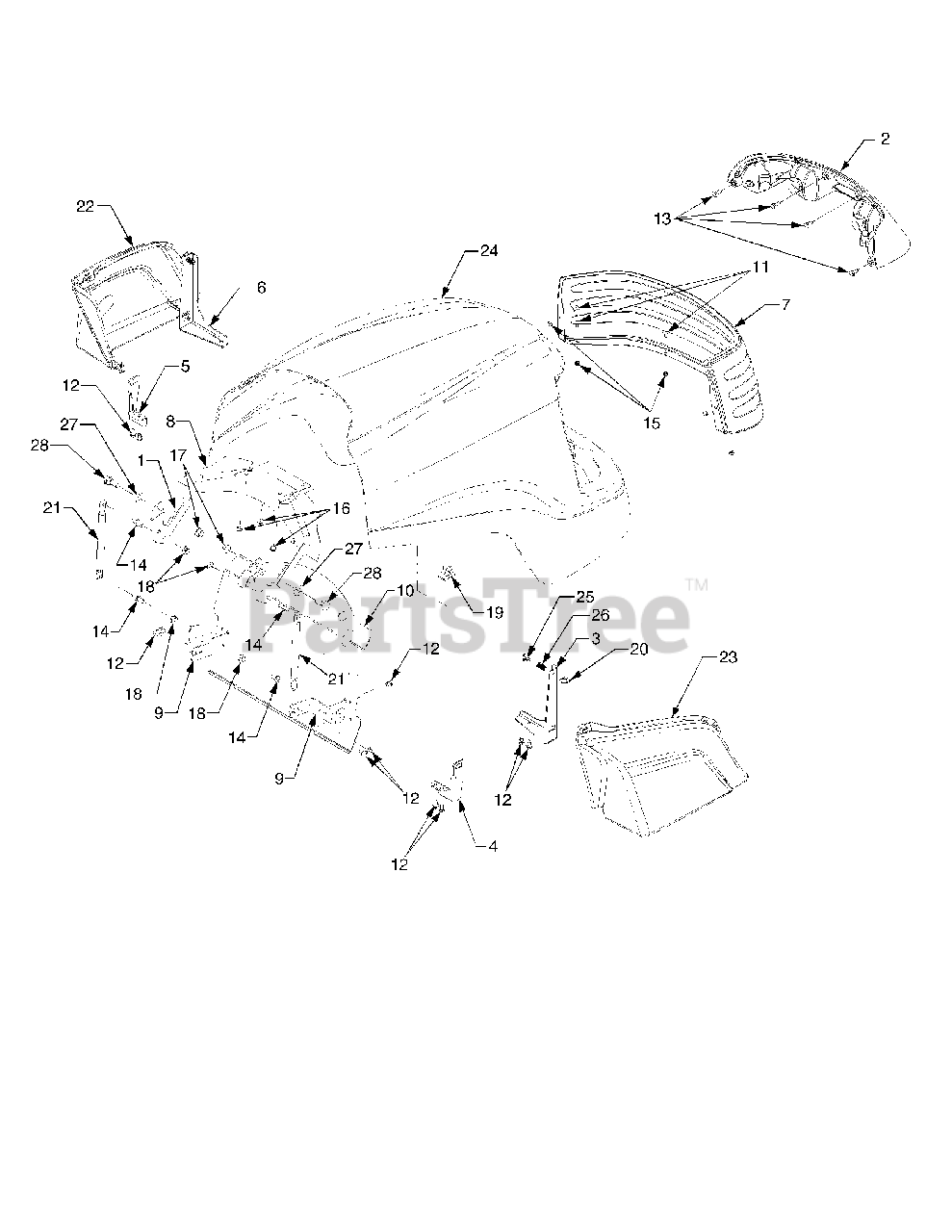

Hood, Grille & Side Panels 1C315G & Before Parts Diagram

  • Title

1

Cub Cadet 603-0719A-0637

Hinge Assembly, Hood

$

$

Not available

2

Cub Cadet 625-0052

Headlight Assembly

$

$

Not available

2

Cub Cadet 725-3161A

Bulb, Headlight
(Superseded to 925-3161A)

Note: Not shown

$52.99

$

In Stock, only 2 left!

0

3

Cub Cadet 703-05281-0637

Bracket, Side Panel Mtg. RH

$

$

Not available

4

Cub Cadet 703-05284-0637

Bracket, Side Panel Mtg. RH Rear

$

$

Not available

5

Cub Cadet 703-05293-0637

Bracket, Side Panel Mtg. LH Rear

$

$

Not available

6

Cub Cadet 703-05295-0637

Bracket, Side Panel Mtg. LH

$

$

Not available

7

Cub Cadet 703-3394

Screen, Intake
(Superseded to 703-3394-0637)

Variations

Cub Cadet 703-3394-0637

SCREEN-INTAKE - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 703-3712A

Shield, Upper Heat

Variations

Cub Cadet 703-3712A-0637

SHIELD-UPER HEAT - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 703-3764-0637

Bracket, Panel Mtg.

$

$

Currently unavailable

10

Cub Cadet 703-3765-0637

Shield, Lower Heat

$

$

Currently unavailable

11

Cub Cadet 710-0473

Screw, Truss Hd, 10-24 x .5

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0751

Screw, Hex Wash. Hd.1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3170

Stud, Cylinder, 5/16-18 Thrd

$13.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-0272

Nut, Hex Sems, 10-24

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet 712-0324

Nut, Hex Nylon Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

17

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 726-04010

Clip, Retaining

$

$

Not available

20

Cub Cadet 726-3056

Latch, 1/4 Turn Panel

$7.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 727-3194

Cylinder, Gas Spring

$120.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-04540

Panel, Side LH
(Superseded to 931-04540)

$

$

Not available

23

Cub Cadet 731-04541

Panel, Side RH
(Superseded to 931-04541)

$

$

Not available

24

Cub Cadet 759-04115A

Hood, Service Kit

Note: Replaces 731-3277 in this application, Refer to diagram Hood 759-04115A

$

$

Not available

24

Cub Cadet 731-6889

Hood

Note: Replaces 731-3277

$

$

Currently unavailable

24

Cub Cadet 777D07558

Graphic, Hood RH

$38.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 777D07559

Graphic, Hood LH

$

$

Not available

24

Cub Cadet 777D08742

Graphic, Model 6284 LH

$

$

Not available

24

Cub Cadet 777D08741

Graphic, Model 6284 RH

$

$

Not available

24

Cub Cadet 751C129A

Graphic, Cat

$

$

Currently unavailable

25

Cub Cadet 732-0936

Clip, Spring
(Superseded to 726-05561)

$

$

Not available

26

Cub Cadet 732-0937

Spring, Compression

$8.49

$

In Stock, only 2 left!

0

27

Cub Cadet 736-0272

Washer, Flat, .51 x 1.0 x .060

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 738-0380

Screw, Shoulder, .5 x .27 Lg 3/8-16

$7.99

$

In Stock, only 1 left!

0
