6284 (54AD64H-710) - Cub Cadet Compact Tractor Frame Parts Diagram

Compact Tractor

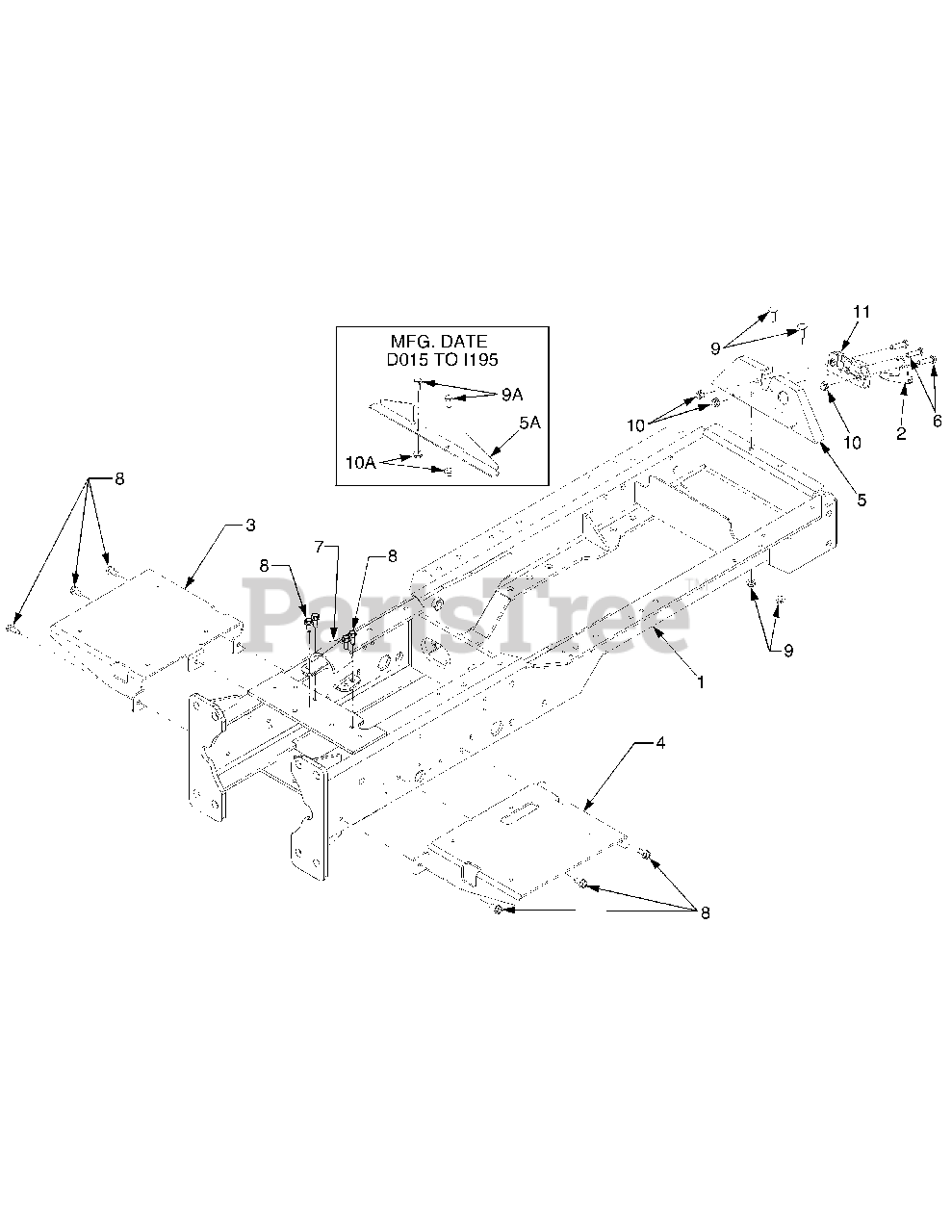

Frame Parts Diagram

  • Title

1

Cub Cadet 603-0666B

Frame Assembly

$1484.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-3503A

Lever, Hood Latch - Original Style

$

$

Not available

3

Cub Cadet 703-3497A

Bracket, Runng Brd Mtg. LH

$

$

Not available

4

Cub Cadet 703-3379A

Bracket, Runng Brd Mtg. RH

$

$

Not available

5

Cub Cadet 703-05137

Bracket, Hood Latch Mtg

Note: Used ONLY with Original Style Hood Latch

$

$

Not available

5A

Cub Cadet 703-05782

Bracket, Hood Latch

Note: Used ONLY with New Style Hood Latch and 603-0666A Frame Assembly

Variations

Cub Cadet 703-05782-0637

USE 703-05782 BRACKET-HOOD LA - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-3083

Screw, Hex Cap, 5/16-18 x 1.375 GR5

Note: Used ONLY with Original Style Hood Latch

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-05737

Shield, Drive Shaft

Variations

Cub Cadet 703-05737-0637

SHIELD-DRV SHAFT - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0451

Screw, Carriage, 5/16-18 x .75

Note: Used with Original Style hood latch and 703-05137 mounting bracket

$4.49

$

In Stock, Qty 20+

0

9A

Cub Cadet 710-3025

Screw, Hex Cap, 5/16-18 x .625 GR5

Note: Used only with New Style hood latch and 703-05782 bracket

$3.99

$

In Stock, Qty 8

0

10

Cub Cadet 712-3004A

Nut, Hx Flange Lck, 5/16-18

Note: Used with Original Style hood latch and 703-05137 mounting bracket

$3.99

$

In Stock, Qty 20+

0

10A

Cub Cadet 712-04063

Nut, Hx Flnge Insert Lk, 5/16-

Note: Used only with New Style hood latch and 703-05782 bracket

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 726-0455

Latch, Hood

Note: Original Style

$

$

Not available
