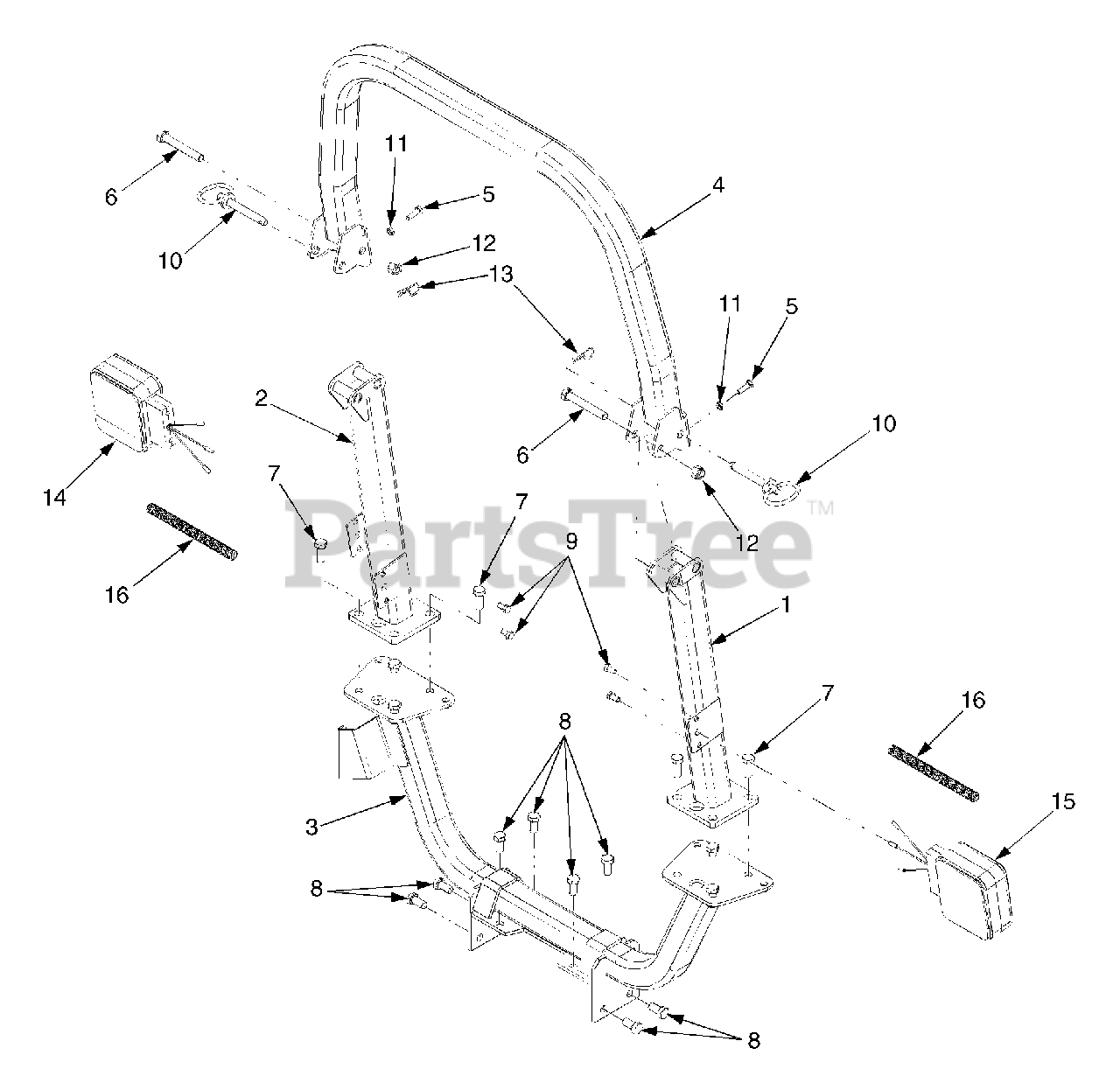

6284 (54AD64H-710) - Cub Cadet Compact Tractor Foldable ROPS Parts Diagram

Compact Tractor

Foldable ROPS Parts Diagram

  • Title

1

Cub Cadet 603-04131

Mounting Assembly, ROPS RH

$

$

Not available

2

Cub Cadet 603-04132

Mounting Assembly, ROPS LH

$

$

Not available

3

Cub Cadet 603-04218

ROPS Assembly, Lower

$

$

Not available

4

Cub Cadet 603-04283

ROPS Assembly, Upper

$

$

Not available

5

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0515

Screw, Hex Cap, 1/2-20 x 3.5 GR5

$11.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-3131

Screw, Hex Cap, 1/2-13 x 1.0 GR5

$5.49

$

In Stock, only 1 left!

0

9

Cub Cadet 710-3138

Screw, Hex Cap, M8-1.25 x 16 GR8

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 711-1610

Pin, Clevis, .5 x 3.5

$

$

Not available

11

Cub Cadet 712-3046

Nut, Hex Jam, 5/16-18

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-3058

Nut, Hex Nylon Insert Lock, 1/2-20
(Superseded to 912-3058)

$5.99

$

In Stock, Qty 16

0

13

Cub Cadet 714-3003

Pin, Internal Cotter
(Superseded to 914-3003)

$4.99

$

In Stock, only 1 left!

0

14

Cub Cadet 725-04248

Light Assembly, Hazard LH

$

$

Not available

15

Cub Cadet 725-04260

Light Assembly, Hazard RH

$

$

Not available

16

Cub Cadet 731-0757-16

Conduit

$

$

Not available

$

$

Not available
