6284 (54AD64H-710) - Cub Cadet Compact Tractor Differential And Final Drive Parts Diagram

Compact Tractor

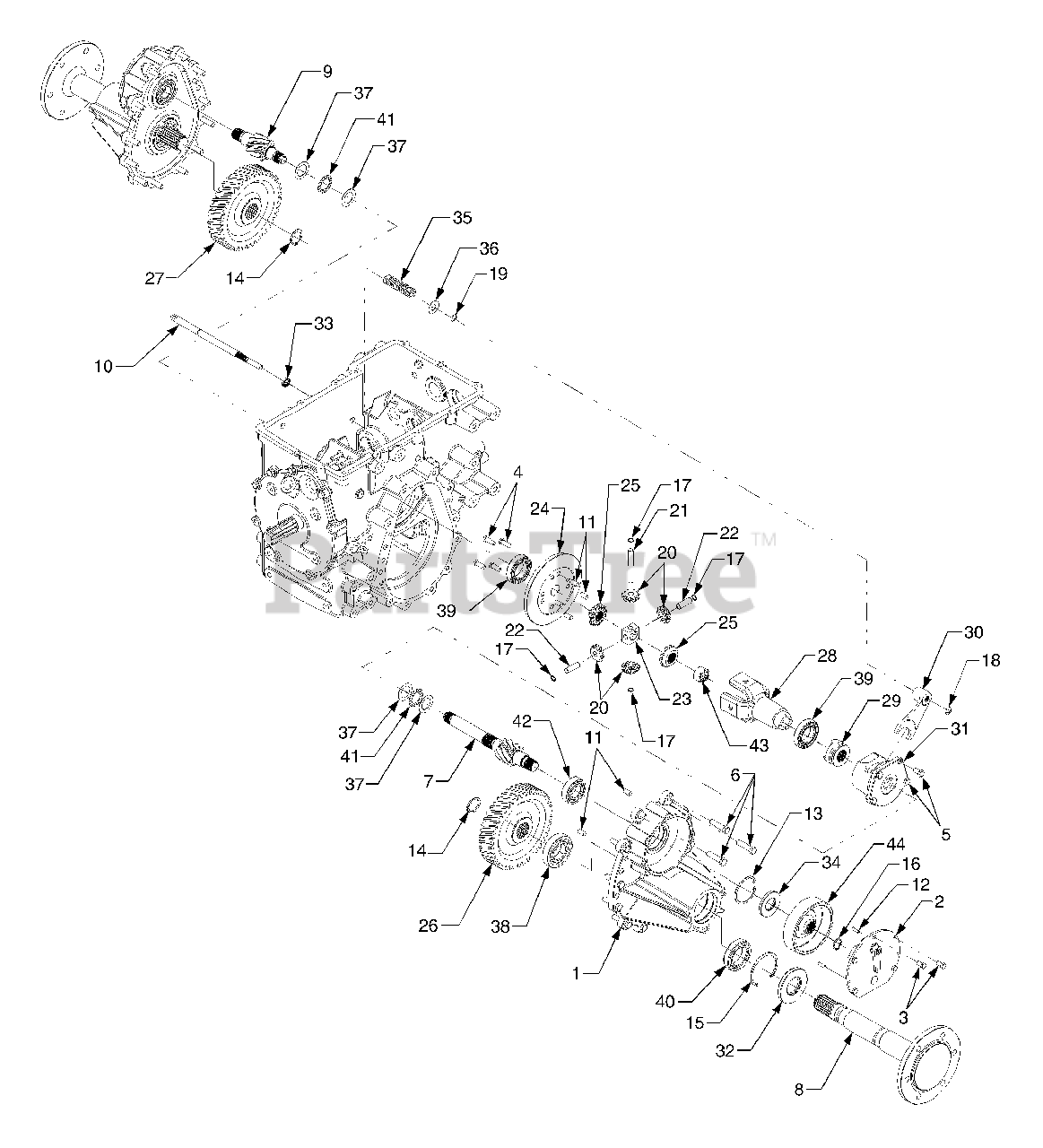

Differential And Final Drive Parts Diagram

  • Title

1

Cub Cadet 619-3060A

Housing, Axle
(Superseded to 919-3060A)

$

$

Not available

2

Cub Cadet 661-3014

Brake Assembly, Drum

$

$

Not available

3

Cub Cadet 710-0538

Screw, Hex Cap Lock, 5/16-18 x .625 GR5

$4.49

$

In Stock, Qty 9

0

4

Cub Cadet 710-1695B

Screw, Socket Hd. Cap, 3/8-16 x 1.0

$

$

Not available

5

Cub Cadet 710-3119

Screw, Hex Cap Lock, 3/8-16 x .75 GR5

$6.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-3238

Screw, Hex Cap Lock, 7/16-14 x 1.75 GR5

$

$

Not available

7

Cub Cadet 711-1326

Shaft, Axle Stub RH

$

$

Not available

8

Cub Cadet 711-1327

Shaft, Axle

$251.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-1358

Shaft, Axle Stub LH

$

$

Not available

10

Cub Cadet 711-1389A

Shaft, Differential Lock Actuator

$

$

Not available

11

Cub Cadet 715-0226

Pin, Dowel, .3752 x .75

$

$

Not available

12

Cub Cadet 715-3010

Pin, Dowel, .25 x .75

$

$

Not available

13

Cub Cadet 716-0180

Ring, Retaining

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 716-0195

Ring, Retaining

$

$

Not available

15

Cub Cadet 716-0196

Ring, Retaining

$

$

Not available

16

Cub Cadet 716-0390

Ring, Retaining

$

$

Not available

17

Cub Cadet 716-0391

Ring, Retaining

$

$

Not available

18

Cub Cadet 716-0396

Clip, Rotor

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 716-0397

Ring, Retaining

$

$

Not available

20

Cub Cadet 717-1120

Gear, Differential, 10T

$32.99

$

In Stock, only 4 left!

0

21

Cub Cadet 717-1173

Shaft, Cross

$38.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 717-1178

Shaft, Cross

$28.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 717-1180

Block, Differential Pinion

$33.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 717-3316

Gear, Bevel, 65T

$343.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 717-3317

Gear, Miter, 14T

$

$

Not available

26

Cub Cadet 717-3471

Gear, Drop Axle, 42T RH

$

$

Not available

27

Cub Cadet 717-3478

Gear, Drop Axle, 42T LH

$

$

Not available

28

Cub Cadet 718-0666

Carrier, Differential

$

$

Not available

29

Cub Cadet 718-3104

Collar, Differential Lock

$

$

Not available

30

Cub Cadet 718-3105

Yoke, Differential Lock

$

$

Not available

31

Cub Cadet 718-3112

Cover, Bearing

$

$

Not available

32

Cub Cadet 721-0495

Seal, Oil, 50mm x 75 mm x 10mm

$

$

Not available

33

Cub Cadet 721-0496

Seal, Oil

$10.99

$

In Stock, only 2 left!

0

34

Cub Cadet 721-3020A

Seal, Oil, 1.181 x 2.453 x .276
(Superseded to 921-3020A)

$12.99

$

In Stock, Qty 17

0

35

Cub Cadet 732-0187

Spring, Compression

$2.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0355

Washer, Flat, .56 x 1.0 x .04

$4.49

$

In Stock, Qty 12

0

37

Cub Cadet 736-0715

Washer, Thrust, 1.12 x 1.75 x .03

$

$

Not available

38

Cub Cadet 741-0721

Bearing, Ball

$

$

Not available

39

Cub Cadet 741-1104

Bearing, Ball

$51.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 741-1107

Bearing, Ball

$

$

Not available

41

Cub Cadet 741-1112

Bearing, Thrust

$

$

Not available

42

Cub Cadet 741-3033A

Bearing, Ball
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 7

0

43

Cub Cadet 741-3080

Bearing, Needle

$23.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 761-3071

Drum, Brake

$

$

Not available
