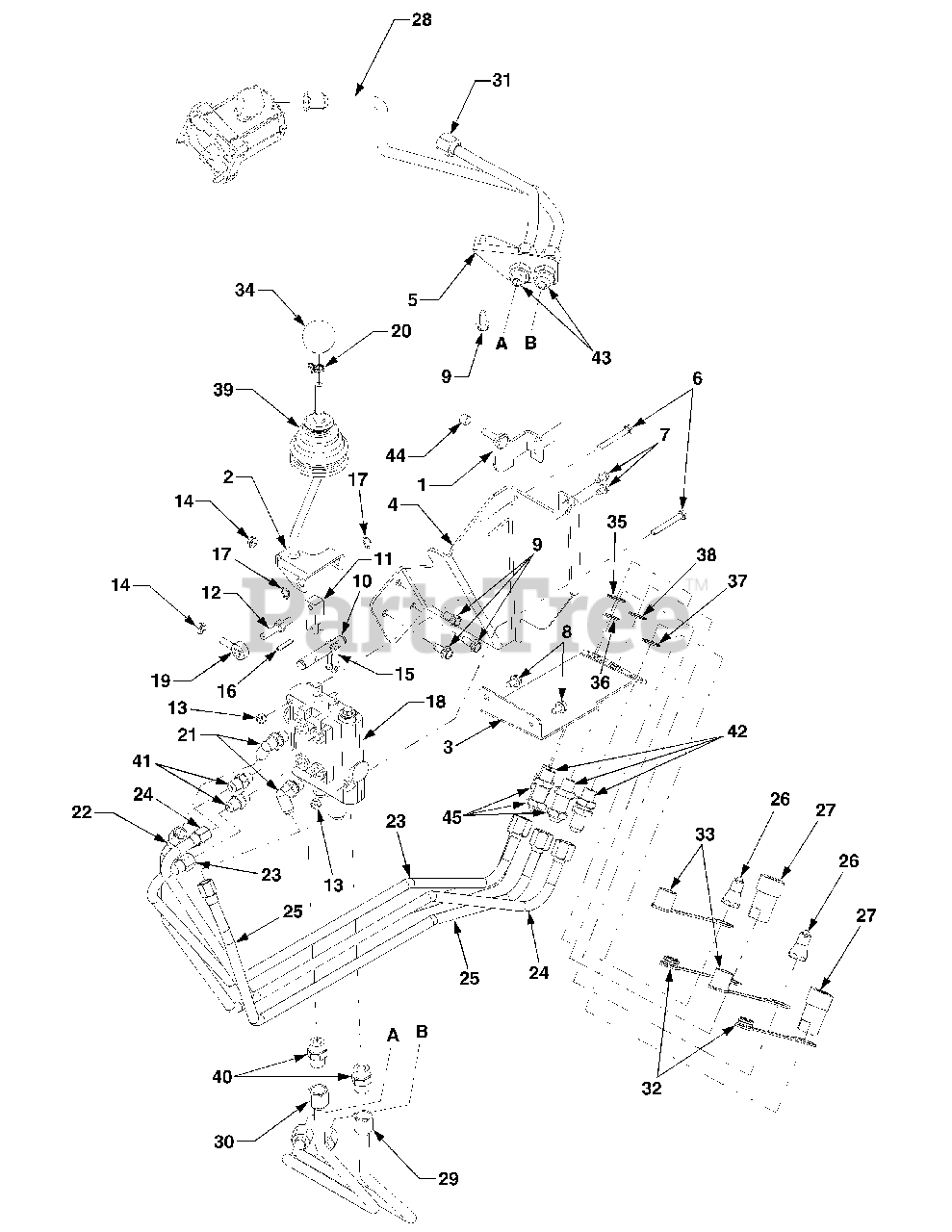

6284 (54AD64H-710) - Cub Cadet Compact Tractor Auxiliary Hydraulic Loader Valve Parts Diagram

Compact Tractor

Auxiliary Hydraulic Loader Valve Parts Diagram

  • Title

1

Cub Cadet 603-0813A

Pivot Bracket Assembly

$41.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0862

Valve Handle Assembly

$

$

Not available

3

Cub Cadet 703-05726

Fitting Mount Plate

Note: Original Style - Used with 727-04088, -04089, -04090, -04090 tubes and 737-3129 fittings

Variations

Cub Cadet 703-05726-0637

PLATE-HYD FTG MTG (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 703-05800

Fitting Mount Plate

Note: New Style - Used with 727-04121, -04122, -04123, 04124 tubes; 737-04108 fittings; and 712-3025 9/16-18 Jam Nuts

$

$

Currently unavailable

4

Cub Cadet 703-3598

Loader Valve Mount Bracket
(Superseded to 703-3598-0637)

Variations

Cub Cadet 703-3598-0637

BRACKET-VALVE MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-3973

Rear Fitting Mount Plate
(Superseded to 703-3973-0637)

Variations

Cub Cadet 703-3973-0637

PLATE-HYD FTG MTG - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 710-0501

Hex Screw, 1/4-20, 2.00, Gr5

$7.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0599

Hex Wash. Hd. Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0604A

Hex Wash. Hd. Tapp Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1260A

Hex Wash. Hd. Tapp Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-1611

Valve Pivot Shaft

$61.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-1624A

Valve Spool Link

$

$

Not available

12

Cub Cadet 711-1637

Ball Joint Pivot Stud

$33.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-04064

Hex Insert Flange Lock Nut 1/4-20, GrF

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3025

Jam Nut, 5/16-24, Gr5

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 713-3000

Chain Link
(Superseded to 913-3000)

$

$

Not available

16

Cub Cadet 715-0120

Spirol Pin, 3/16 x 1.0

$10.99

$

In Stock, only 1 left!

0

17

Cub Cadet 716-0865

Snap Ring, .5

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 718-3140

Loader Control Valve

$1039.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 723-0488

Ball Joint, .3125 ID x 5/16-24
(Superseded to WM-489089)

$

$

Not available

20

Cub Cadet 726-04046

Clamp, Hose

$

$

Not available

21

Cub Cadet 727-3012

Fitting, 90 6-6 Orb

$26.99

$

In Stock, only 4 left!

0

22

Cub Cadet 727-04088

Tube, Hydraulic - Boom Lift - Original Style
(Superseded to 927-04088)

$

$

Not available

22

Cub Cadet 727-04124

Tube, Hydraulic - Boom Lift - New Style

$

$

Currently unavailable

23

Cub Cadet 727-04089

Tube, Hydraulic - Boom Lower - Original Style
(Superseded to 927-04089)

$

$

Not available

23

Cub Cadet 727-04123

Tube, Hydraulic - Boom Lower - New Style

$

$

Currently unavailable

24

Cub Cadet 727-04090

Tube, Hydraulic - Bucket Rollback - Original Style

$

$

Not available

24

Cub Cadet 727-04121

Tube, Hydraulic - Bucket Rollback - New Style

$

$

Currently unavailable

25

Cub Cadet 727-04091

Tube, Hydraulic - Bucket Dump - Original Style

$

$

Not available

25

Cub Cadet 727-04122

Tube, Hydraulic - Bucket Dump New Style

$

$

Currently unavailable

26

Cub Cadet 727-3224

Coupling, Male Hydraulic, 3/8-18

$118.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 727-3225

Coupling, Female Hydr. 3/8-18

$89.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 727-3226

Tube, Auxiliary Pump Pressure

$

$

Not available

29

Cub Cadet 727-3227

Tube, Valve Pressure

$

$

Not available

30

Cub Cadet 727-3228

Tube, Valve Return

$68.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 727-3229

Tube, Valve Return

$

$

Not available

32

Cub Cadet 727-3261

Plug, Hydraulic Coupler - Male

$

$

Not available

33

Cub Cadet 727-3262

Plug, Hydraulic Coupler - Female

$

$

Not available

34

Cub Cadet 731-3353

Knob, 1.625 Dia x 3/8-16 Thd

$

$

Not available

35

Cub Cadet 731-3374

Washer, Indicator - Red

$11.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 731-3375

Washer, Indicator - Yellow

$

$

Not available

37

Cub Cadet 731-3376

Washer, Indicator - Green

$

$

Not available

38

Cub Cadet 731-3377

Washer, Indicator - Blue

$

$

Not available

39

Cub Cadet 735-0696

Joystick Boot

$

$

Not available

40

Cub Cadet 737-3112

Fitting, Straight - 8 Orb

$

$

Not available

41

Cub Cadet 737-3125

Fitting, Straight - 6 Orb

$

$

Not available

42

Cub Cadet 737-3129

Fitting, Bulkhead w/ Jam Nut, 3/4-16 x 3/8-18 - Original Style

$

$

Not available

42

Cub Cadet 737-04108

Fitting, Bulkhead 9/16-18 x 3/8-18 New Style

Note: used with Nut Jam, 712-3035 9/16-18 Gr5

$

$

Currently unavailable

43

Cub Cadet 737-3130

Fitting, Bulkhead 3/4-16 x 3/4-16

$

$

Not available

44

Cub Cadet 750-0845

Spacer, .34 ID x .5 OD x .31
(Superseded to 750-0808)

$

$

Not available

45

Cub Cadet 712-3035

Nut, Jam, 9/16-18 Gr5 - New Style

$6.99

$

Usually ships in 3-6 days

0
