62837 - Toro Shredder (SN: 004000001 - 004999999) (1974) ENGINE TECUMSEH PRODUCTS MODEL NO. LAV 35-40712K Parts Diagram

Shredder

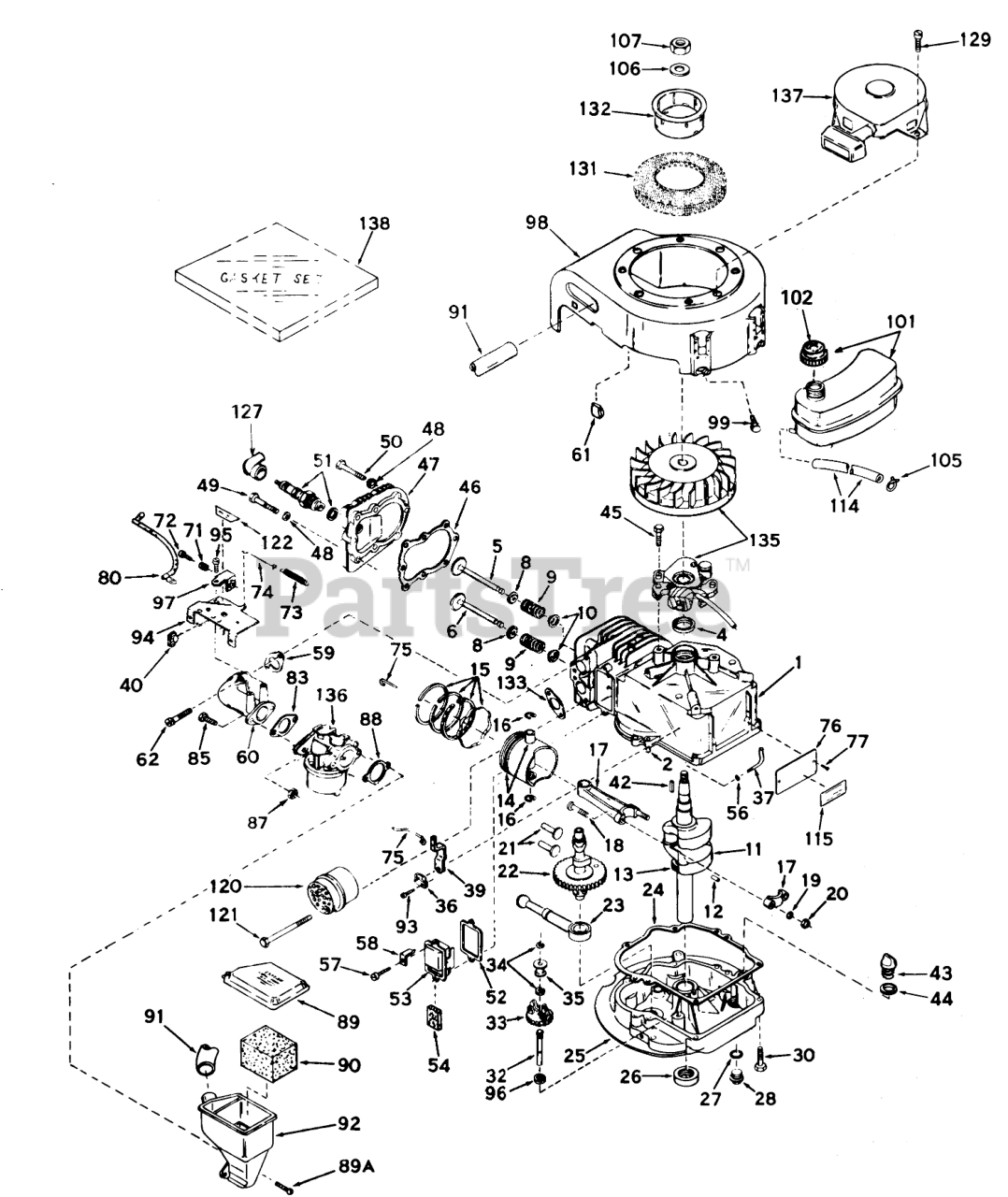

ENGINE TECUMSEH PRODUCTS MODEL NO. LAV 35-40712K Parts Diagram

  • Title

1

Tecumseh 32537B

Cylinder Assembly (Incl. Nos. 2 & 4)
(Superseded to 32537C)

$

$

Currently unavailable

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 29183

OIL SEAL

$7.49

$

In Stock, only 1 left!

0

5

Tecumseh 29314A

Valve, Intake (Standard) (Incl. Nos. 8, 9 & 10)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

5

Tecumseh 29315A

Valve, Intake (1/32" Oversize) (Incl. Nos. 8, 9 & 10)
(Superseded to 29315C)

$

$

Not available

6

Tecumseh 29313A

Valve, Exhaust (Standard) (Incl. Nos. 8, 9 & 10)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315A

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 & 10)
(Superseded to 29315C)

$

$

Not available

8

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

9

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

10

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 29385A

Crankshaft Assembly (Incl. Nos. 12 & 13)
(Superseded to 32936)

$

$

Currently unavailable

12

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27613

Gear, Crankshaft

$

$

Currently unavailable

14

Tecumseh 32538

Piston & Pin Assembly (Standard) (Incl. 2 of No. 16)
(Superseded to 32538B)

$

$

Not available

14

Tecumseh 32548

Piston & Pin Assembly (.010 Over size) (Incl. 2 of No. 16)
(Superseded to 32548B)

$

$

Not available

14

Tecumseh 32549

Piston & Pin Assembly (.020 Over size) (Incl. 2 of No. 16)
(Superseded to 32549B)

$50.99

$

Usually ships in 3-12 days

0

15

Tecumseh 28986

Piston Ring Set Std.

$

$

Not available

15

Tecumseh 28987

Piston Ring Set .010 O.S.

$

$

Not available

15

Tecumseh 28988

Piston Ring Set .020 O.S.

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963B

Rod Assembly, Connecting (Incl. Nos. 18, 19 & 20)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 26706

Bolt, Connecting

$

$

Currently unavailable

19

Tecumseh 20747

Washer

$

$

Currently unavailable

20

Tecumseh 27573

LOCKNUT

$

$

Currently unavailable

21

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

22

Tecumseh 33148A

Camshaft (Compression Release
(Superseded to 35990)

$39.99

$

Usually ships in 3-12 days

0

23

Tecumseh 29914

Oil Pump ASM

$9.49

$

Usually ships in 3-12 days

0

24

Tecumseh 26750A

Gasket, Mounting
(Superseded to 37609)

Note: Included In Gasket Set Num 33236

$2.99

$

Usually ships in 3-12 days

0

25

Tecumseh 30784B

Flange Assembly, Mounting (Incl. Nos. 26, 27, 28 & 32)
(Superseded to 37620)

$80.99

$

Usually ships in 3-12 days

0

26

Tecumseh 26208

Seal Oil

$8.49

$

In Stock, only 1 left!

0

27

Tecumseh 28833

Gasket-Oil Drain

Note: Included In Gasket Set Num 33236

$1.99

$

In Stock, only 1 left!

0

28

Tecumseh 27244

Plug Oil Drain
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

30

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

32

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

33

Tecumseh 30591

Gear Assembly, Governor (Incl. No. 96)

$13.99

$

In Stock, only 2 left!

0

34

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 6

0

35

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 5

0

36

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 30589

Rod, Governor (Incl. No. 56)

$5.49

$

In Stock, only 1 left!

0

39

Tecumseh 32651

Governor Lever

$

$

Not available

40

Tecumseh 32410

Knob-Control

$5.49

$

In Stock, only 4 left!

0

42

Tecumseh 27247

Key Flywheel
(Superseded to 610961)

$1.49

$

In Stock, Qty 20+

0

43

Tecumseh 27625

Plug, Oil Filler (Incl. No. 44)

$2.49

$

In Stock, Qty 8

0

44

Tecumseh 29673

Gasket

Note: Included In Gasket Set Num 33236

$1.99

$

In Stock, only 3 left!

0

45

Tecumseh 650489

Screw

$

$

Not available

46

Tecumseh 29953B

Gasket-Cylinder Head
(Superseded to 29953C)

Note: Included In Gasket Set Num 33236

$16.99

$

In Stock, only 1 left!

0

47

Tecumseh 30579

CYLINDER HEAD
(Superseded to 36438)

$

$

Not available

48

Tecumseh 26073

Washer

$

$

Not available

49

Tecumseh 6021

Screw
(Superseded to 6021A)

$1.99

$

In Stock, only 3 left!

0

50

Tecumseh 650694

Screw Hex Hd. Cap
(Superseded to 650694A)

$3.49

$

In Stock, Qty 20+

0

51

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 17

0

52

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Included In Gasket Set Num 33236

$7.49

$

In Stock, only 2 left!

0

53

Tecumseh 31337

Body Assembly, Breather (Incl. Nos. 52 & 54)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

54

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

56

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

57

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

58

Tecumseh 30593

Retainer Clip

$1.99

$

In Stock, only 1 left!

0

59

Tecumseh 30188

Gasket, Intake
(Superseded to 32649A)

Note: Included In Gasket Set Num 33236

$2.99

$

In Stock, Qty 18

0

60

Tecumseh 33004

Pipe, Intake
(Superseded to 33004A)

$23.99

$

Usually ships in 3-12 days

0

61

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 7

0

62

Tecumseh 650451

Screw (1/4-20 x 1)

$1.99

$

In Stock, only 4 left!

0

71

Tecumseh 32924

Spring

$1.99

$

In Stock, only 3 left!

0

72

Tecumseh 650688

Screw, Hex Hd.

$3.99

$

Usually ships in 3-12 days

0

73

Tecumseh 31386

Spring, Governor

$4.49

$

In Stock, Qty 15

0

74

Tecumseh 33151

Link Governor Spring

$1.99

$

In Stock, only 3 left!

0

75

Tecumseh 33133

Link Governor

$1.99

$

Usually ships in 3-12 days

0

76

Tecumseh 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

77

Tecumseh 28670

Stud

$

$

Currently unavailable

80

Tecumseh 31388

Wire, Ground
(Superseded to 35349)

$

$

Not available

83

Tecumseh 26756

Gasket

Note: Included In Gasket Set Num 33236

$2.99

$

In Stock, Qty 12

0

85

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

87

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 5

0

88

Tecumseh 33051

Gasket-Air Cleaner

Note: Included In Gasket Set Num 33236

$1.49

$

In Stock, Qty 9

0

89

Tecumseh 33007

Cover, Air Cleaner

$7.49

$

In Stock, only 1 left!

0

89A

Tecumseh 650707

Screw, Fil. Hd. Sems

$1.99

$

Usually ships in 3-12 days

0

90

Tecumseh 33006

Element, Air Cleaner

$8.49

$

In Stock, only 1 left!

0

91

Tecumseh 33008

Tube, Air Cleaner

$20.99

$

Usually ships in 3-12 days

0

92

Tecumseh 33005

Body, Air Cleaner

$18.99

$

Usually ships in 3-12 days

0

93

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

94

Tecumseh 33152

Control Assy., Speed
(Superseded to 33152A)

$28.99

$

Usually ships in 3-12 days

0

95

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

96

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

97

Tecumseh 33150

Brachet, Control

$1.99

$

In Stock, only 1 left!

0

98

Tecumseh 32455B

Housing, Blower

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 screws illustrated to attach replacement starter to replacement blower housing

$

$

Currently unavailable

99

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

101

Tecumseh 32170A

Tank Assembly, Fuel (Incl. No. 102)
(Superseded to 37947)

$

$

Not available

102

Tecumseh 410144B

Cap, Fuel
(Superseded to 33032)

$7.49

$

In Stock, only 1 left!

0

105

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 12

0

106

Tecumseh 650490

Washer
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

107

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

114

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

115

Tecumseh 31865

480B GIL SNWTHWR O/
(Superseded to 36261)

$

$

Not available

120

Tecumseh 27181A

Muffler (Incl. Nos. 121 & 133)
(Superseded to 27181C)

$10.99

$

Usually ships in 3-12 days

0

121

Tecumseh 650253

Screw, Hex hd. cap
(Superseded to 792020)

$4.49

$

Usually ships in 3-12 days

0

122

Tecumseh 31495

Decal
(Superseded to 36507)

$

$

Not available

127

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, Qty 5

0

129

Tecumseh 29716

Screw

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement, both will have to be ordered. Also order 4 screws illustrated to attach replacement starter to replacement blower housing

$1.49

$

In Stock, only 2 left!

0

131

Tecumseh 590417

Screen, Air

$7.49

$

In Stock, only 1 left!

0

132

Tecumseh 590416

Starter Cup

$9.99

$

Usually ships in 3-12 days

0

133

Tecumseh 26754

Gasket-Intake
(Superseded to 26754A)

Note: Included In Gasket Set Num 33236

$1.99

$

In Stock, Qty 9

0

135

Tecumseh 610794

Magneto

$

$

Currently unavailable

136

Tecumseh 631581

Carburetor

$

$

Not available

137

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

$68.99

$

In Stock, only 2 left!

0

138

Tecumseh 33236

Gasket Set (Incl. Items Marked )
(Superseded to 33238E)

Note: Included In Gasket Set Num 33236

$50.99

$

In Stock, only 1 left!

0
