62837 - Toro Shredder (SN: 004000001 - 004999999) (1974) ENGINE AND BASE ASSEMBLY Parts Diagram

Shredder

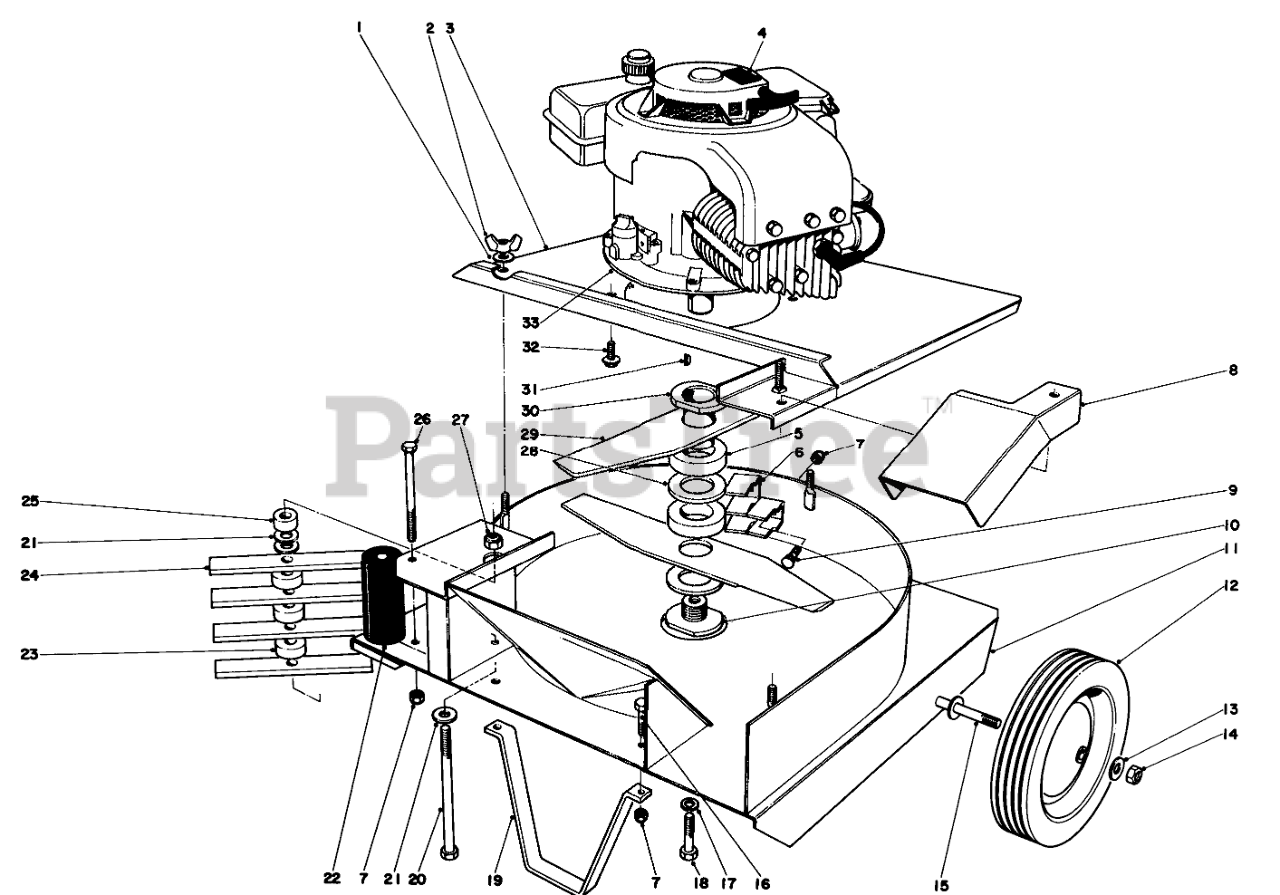

ENGINE AND BASE ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

2

Toro 32103-3

NUT-WING

$1.99

$

Usually ships in 3-6 days

0

3

Toro 19-9110

Engine Base W.A.

$

$

Currently unavailable

4

Toro 19-5530

Caution Decal

$

$

Currently unavailable

5

Toro 17-7180

Hub Spacer

$

$

Currently unavailable

6

Toro 17-7320

Secondary Finger

$

$

Not available

7

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

8

Toro 17-7930

Deflector

$

$

Currently unavailable

9

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 17-7170

Hub Keeper

$

$

Currently unavailable

11

Toro 17-7430

Body

$

$

Currently unavailable

12

Toro 7-0075

Wheel

$

$

Not available

13

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

15

Toro 17-7260

Axle

$

$

Currently unavailable

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

17

Toro 3253-29

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

18

Toro 3211-34

Capscrew

$

$

Currently unavailable

19

Toro 17-7250

Leg Stand

$

$

Currently unavailable

20

Toro 17-7570

Special Screw

$

$

Currently unavailable

21

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 17-7270

Shock Absorber

$

$

Not available

23

Toro 19-9090

Lower Finger Spacer

$

$

Currently unavailable

24

Toro 17-7160

Primary Finger

$

$

Not available

25

Toro 17-7190

SPACER-FINGER

$8.99

$

Usually ships in 3-6 days

0

26

Toro 322-29

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

27

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

28

Toro 17-7210

Blade Spacer

$

$

Currently unavailable

29

Toro 17-7410

Blade

$

$

Not available

30

Toro 17-7200

Hub

$

$

Currently unavailable

31

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

32

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

33

Toro 221-437

Engine

$

$

Currently unavailable

Toro 17-7660

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable

Toro 20-3530

Shredder Bagging Kit (optional)

Note: Not illustrated

$

$

Currently unavailable
