62835 - Toro Shredder (SN: 002000001 - 002999999) (1972) CARBURETOR AIR CLEANER & GAS TANK ASSEMBLY Parts Diagram

Shredder

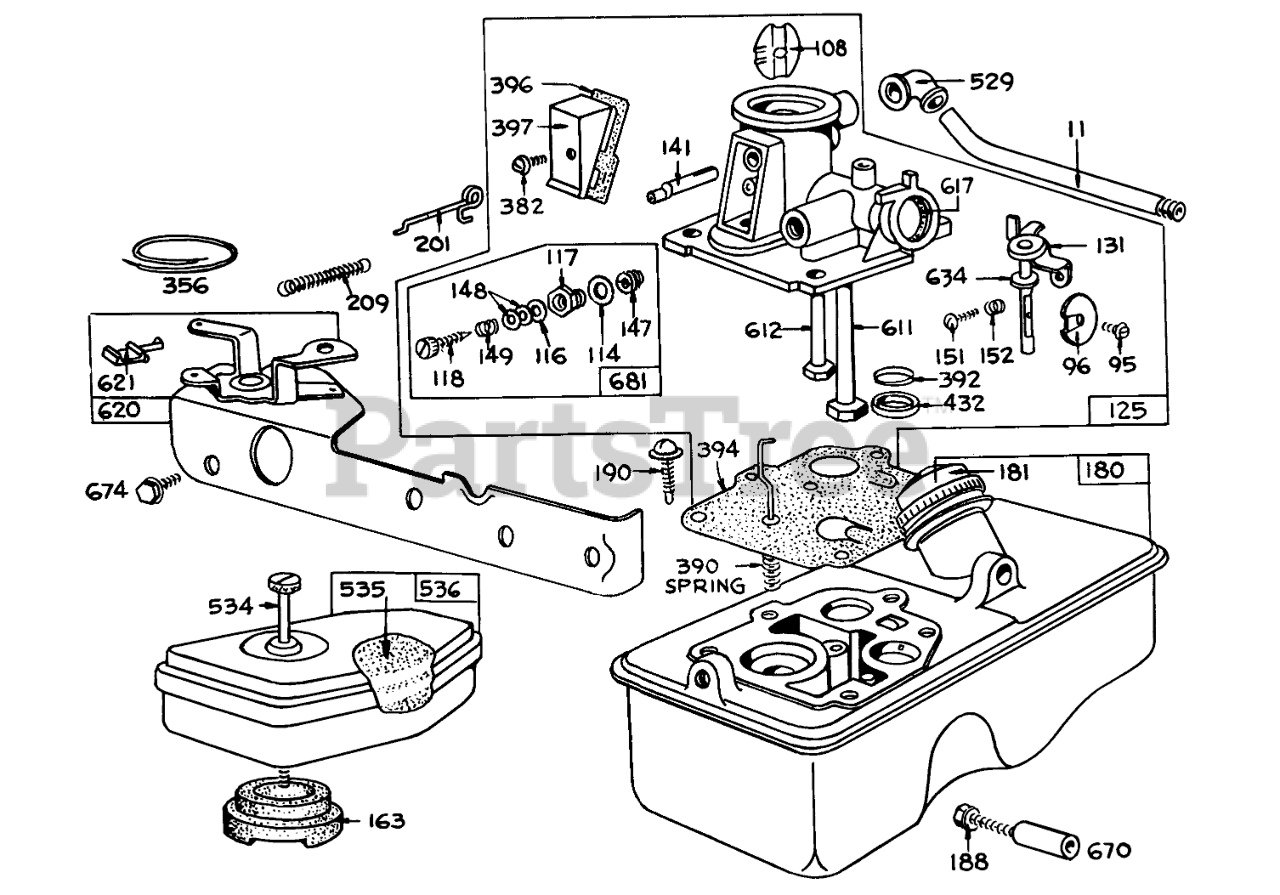

CARBURETOR AIR CLEANER & GAS TANK ASSEMBLY Parts Diagram

  • Title

11

Briggs & Stratton 230802

Tube Breather

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211237

Valve

$8.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 280024

Valve-Choke

$3.49

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 66594

Gasket Valve Nut
(Superseded to 691608)

$5.99

$

In Stock, Qty 20+

0

116

Briggs & Stratton 65978

Packing-Needle
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 230590

Nut-Needle Valve
(Superseded to 690504)

$3.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 23433

Valve-Needle
(Superseded to 690266)

Note: Included in Engine Repair Kit- Part No. 390132.

$9.49

$

In Stock, only 3 left!

0

125

Briggs & Stratton 390065

Carburetor Assembly
(Superseded to 395957)

$

$

Not available

131

Briggs & Stratton 299977

Shaft & Lever-Throttle

$15.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 68908

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 230591

Seat-Needle Valve
(Superseded to 692134)

$9.49

$

In Stock, only 4 left!

0

148

Briggs & Stratton 22235

Washer-Needle Valve
(Superseded to 690257)

$4.99

$

Usually ships in 2-12 days

0

149

Briggs & Stratton 26336

Spring Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

151

Briggs & Stratton 93524

Screw-Rd. Hd

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260746

Spring-Throttle Adj
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

163

Briggs & Stratton 270621

Gasket-Air Cleaner Mtg.

Note: Included in Engine Repair Kit- Part No. 390132.

$5.99

$

Usually ships in 2-12 days

0

180

Toro 299972

Tank Assembly-Fuel

$

$

Currently unavailable

181

Briggs & Stratton 298425

Cap-Fuel Tank
(Superseded to 493982S)

$

$

Not available

188

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

190

Briggs & Stratton 93440

Screw-Fuel Tank
(Superseded to 692200)

$

$

Not available

201

Briggs & Stratton 260878

Link-Governor

Note: Included in Engine Repair Kit- Part No. 390132.

$5.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260877

Spring-Governor

$7.99

$

Usually ships in 2-12 days

0

356

Toro 98479

Wire-Ground

$

$

Currently unavailable

382

Briggs & Stratton 93545

Screw-Choke Link Cover

$3.49

$

In Stock, only 1 left!

0

390

Briggs & Stratton 261015

Spring
(Superseded to 261249)

$5.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 260455

Spring-Fuel Pump
(Superseded to 692206)

$4.49

$

In Stock, Qty 10

0

394

Toro 299636

Diaphragm-Carburetor

$

$

Currently unavailable

396

Briggs & Stratton 270571

Gasket-Choke Link Cover

$6.99

$

In Stock, Qty 12

0

397

Briggs & Stratton 211678

Cover-Choke Link

$3.49

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, Qty 5

0

529

Briggs & Stratton 67838

Grommet
(Superseded to 692189)

$4.49

$

In Stock, Qty 16

0

534

Briggs & Stratton 93374

Srew-Air Cleaner

$5.99

$

In Stock, only 1 left!

0

535

Briggs & Stratton 270579

Element Air Cleaner
(Superseded to 270579S)

$5.99

$

In Stock, Qty 20+

0

536

Briggs & Stratton 390055

Cleaner Assembly-Air

$16.99

$

Usually ships in 2-12 days

0

611

Briggs & Stratton 297219

Pipe Fuel (long)
(Superseded to 297219S)

Note: Included in Engine Repair Kit- Part No. 390132.

$8.99

$

Usually ships in 2-12 days

0

612

Briggs & Stratton 296811

Pipe-Fuel
(Superseded to 497413S)

Note: Included in Engine Repair Kit- Part No. 390132.

$7.49

$

In Stock, Qty 9

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Engine Repair Kit- Part No. 390132.

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 299974

Plate Carburetor Control

$38.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

634

Toro 770167

Throttle Shaft-Washer (Felt)

$

$

Currently unavailable

670

Toro 93447

Spacer-Fuel Tank

$

$

Currently unavailable

674

Toro 211740

Spacer-Fuel Tank

$

$

Currently unavailable

681

Briggs & Stratton 299060

Kit-Needle Valve

$21.99

$

In Stock, only 3 left!

0
