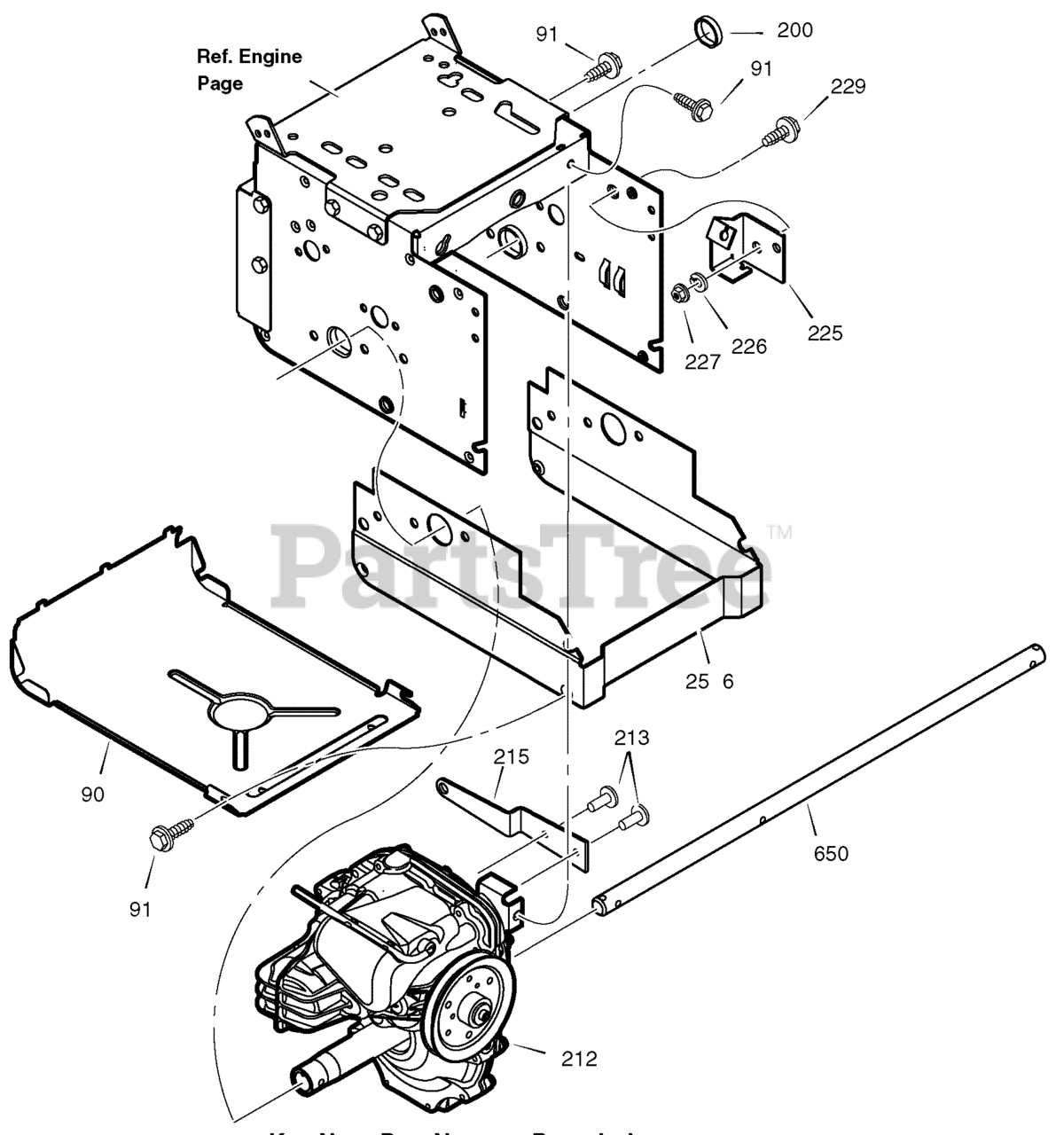

627859x43B - Yard King 27" Snow Thrower (2004) Hydro Drive Parts Diagram

27" Snow Thrower

Hydro Drive Parts Diagram

  • Title
90

Murray 1501311E701

COVER, BOTTOM

$

$

Not available

91

Murray 310169

SCREW, 1/4-20 X 0.62
(Superseded to 310169MA)

$4.49

$

In Stock, Qty 5

0

25?6

Murray 1501334E549

FRAME, EXTENSION - HYDRO

$210.99

$

Usually ships in 2-12 days

0

200

Murray 1501496

PLUG, HEYCO
(Superseded to 1501496MA)

$3.99

$

Usually ships in 2-12 days

0

212

TRANSMISSION, HYDRO (314-0410) *

$

$

Not available

213

Murray 021X11

RIVET, BLIND

$3.99

$

Usually ships in 2-12 days

0

215

Murray 1501366

ARM, CONTROL EXTENSION
(Superseded to 1501366MA)

$12.99

$

Usually ships in 2-12 days

0

225

Murray 1501361

BRACKET, DRIVE CABLE
(Superseded to 703236)

$44.99

$

Usually ships in 2-12 days

0

226

Murray 71063

WASHER

$3.99

$

Usually ships in 2-12 days

0

227

Murray 71045

NUT, HEX JAM 3/8-16

$

$

Not available

229

Murray 025X19

SCREW
(Superseded to 025X19MA)

$5.99

$

Usually ships in 2-12 days

0

650

Murray 1501566

AXLE, WHEEL

$69.99

$

Usually ships in 2-12 days

0
