627859x43B - Yard King 27" Snow Thrower (2004) Discharge Chute Parts Diagram

27" Snow Thrower

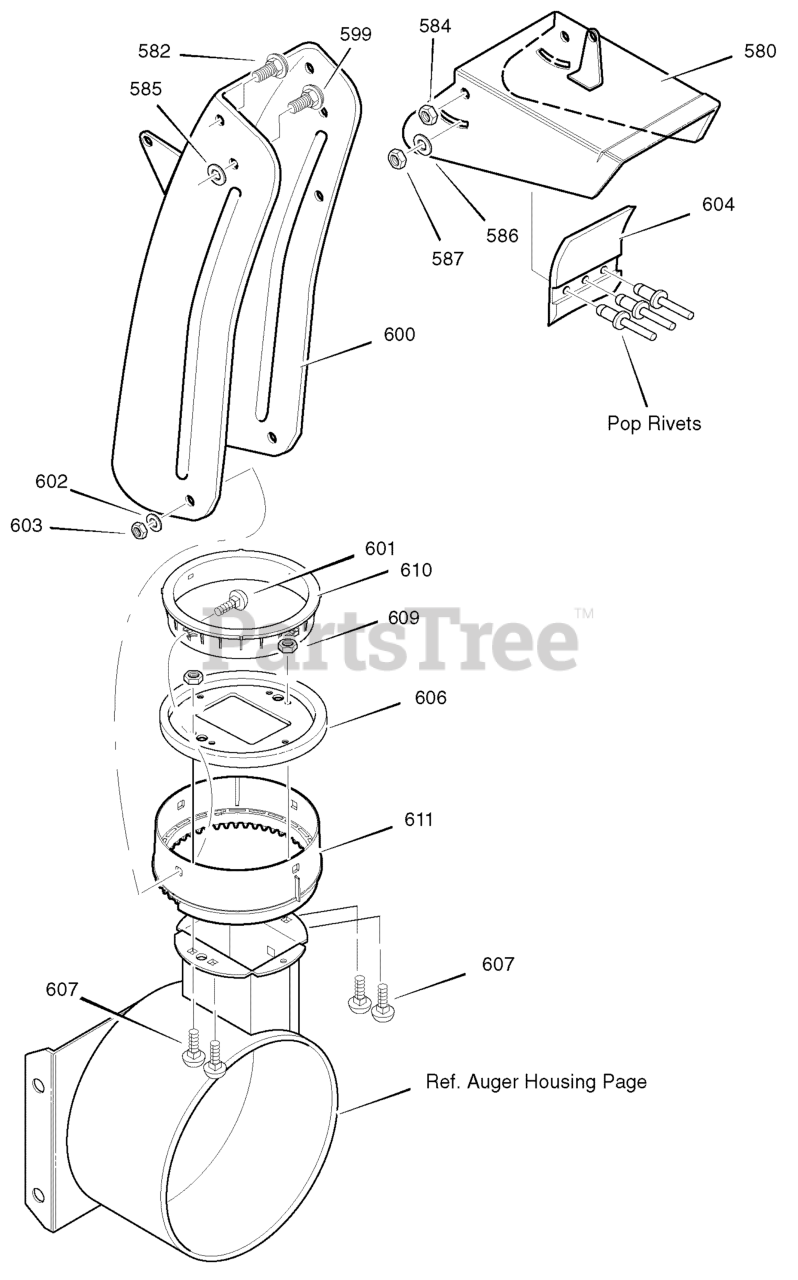

Discharge Chute Parts Diagram

  • Title

580

Murray 761168E701

CHUTE, UPPER W/REMOTE

$34.99

$

In Stock, only 1 left!

0

582

Murray 578088

SCREW, 5/16-18 x 0.75
(Superseded to 578088MA)

$4.99

$

In Stock, only 1 left!

0

584

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

585

Murray 12021

WASHER, PLASTIC
(Superseded to 12021MA)

$3.99

$

In Stock, only 4 left!

0

586

Murray 6711

WASHER, PLASTIC

$3.99

$

Usually ships in 2-12 days

0

587

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

599

Murray 002X97

SCREW, 5/16-18 x 1.50
(Superseded to 1501884E701MA)

$120.99

$

Usually ships in 2-12 days

0

600

Murray 761169E701

CHUTE, LOWER W/REMOTE

$250.99

$

Usually ships in 2-12 days

0

601

Murray 2X100

BOLT
(Superseded to 1501884E701MA)

$120.99

$

Usually ships in 2-12 days

0

602

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

603

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

Murray 762322

FLAP

$6.49

$

Usually ships in 2-12 days

0

606

Murray 1501932 YZ

CHUTE COLLAR
(Superseded to 1501932YZMA)

$28.99

$

In Stock, only 1 left!

0

607

Murray 02X101

BOLT

$3.99

$

In Stock, Qty 8

0

609

Murray 15X145

NUT

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227

RETAINER, RING INNER
(Superseded to 337227MA)

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501282

RETAINER, RING OUTER
(Superseded to 1501282MA)

$26.99

$

In Stock, only 2 left!

0
