627852x85A - Murray 27" Snow Thrower (2005) Wheels Parts Diagram

27" Snow Thrower

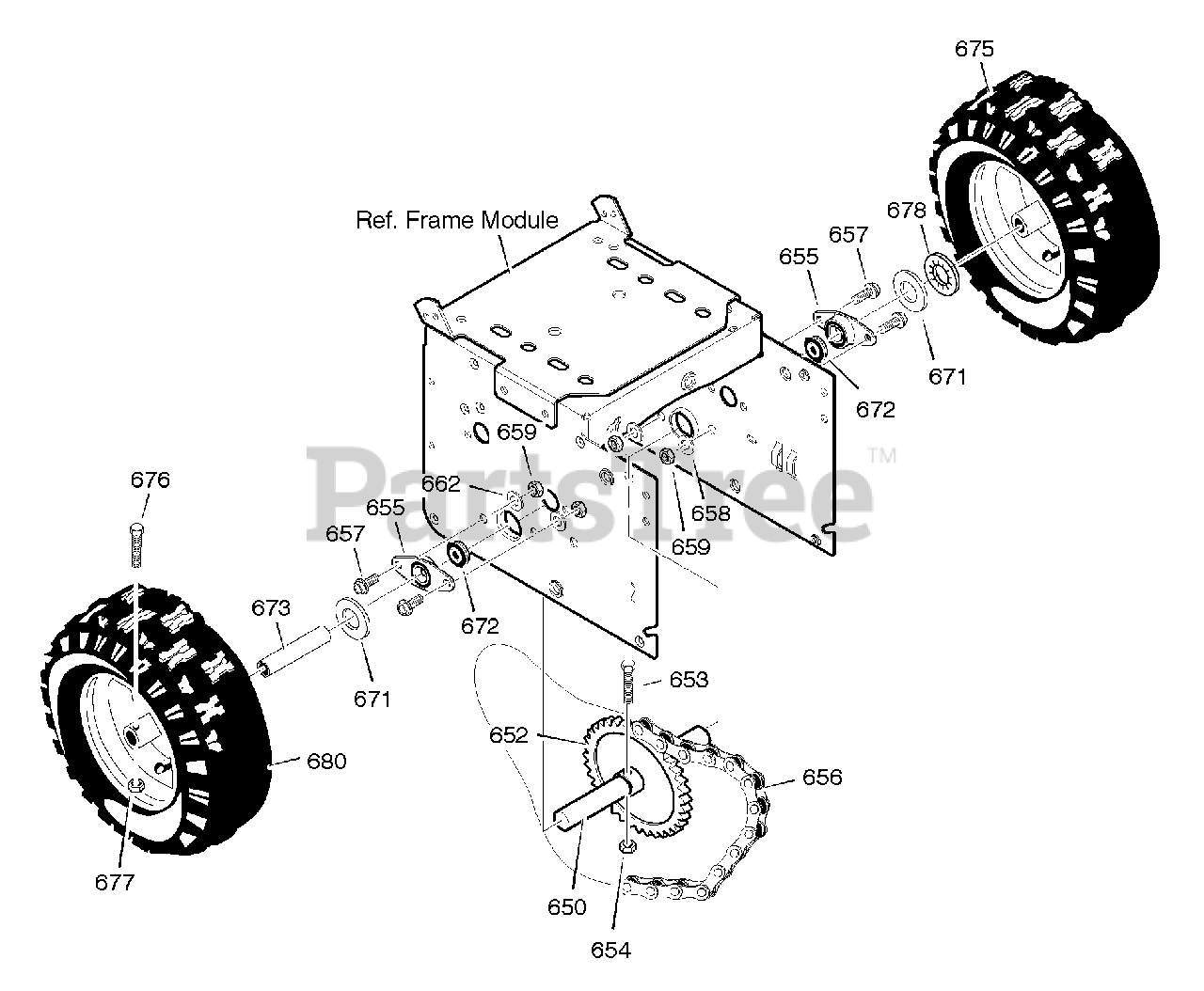

Wheels Parts Diagram

  • Title
650

Murray 1501564 YZ

SHAFT, AXLE

$59.99

$

Usually ships in 2-12 days

0

652

Murray 1501089

SPROCKET, AXLE
(Superseded to 1501089MA)

$42.99

$

In Stock, Qty 8

0

653

Murray 01X193MA

SCREW, 1/4-20X1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

654

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

655

Murray 50648MA

RETAINER, BEARING

$

$

Not available

657

Murray 001X85MA

SCREW, .38-16x0.75

$3.99

$

Usually ships in 2-12 days

0

658

Murray 71062

WASHER, LOCK

$

$

Not available

659

Murray 71044

NUT, 3/8"-16

$3.49

$

Usually ships in 2-12 days

0

671

Murray 017X83MA

WASHER, FLAT

$4.49

$

Usually ships in 2-12 days

0

672

Murray 53263MA

BEARING, BALL

$38.99

$

In Stock, only 2 left!

0

673

Murray 1501138MA

BUSHING, WHEEL

$

$

Not available

675

Murray 583384MA

TIRE & RIM, LEFT

$

$

Not available

676

Murray 577015MA

BOLT, .25-20x1.75

$4.99

$

In Stock, Qty 5

0

677

Murray 15X116MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

678

Murray 239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

680

Murray 583384MA

TIRE & RIM, RIGHT

$

$

Not available
