627850x0A - Briggs & Stratton 27" Snow Thrower, Single Stage (2003) (Northern Tool) Auger Housing Parts Diagram

27" Snow Thrower, Single Stage

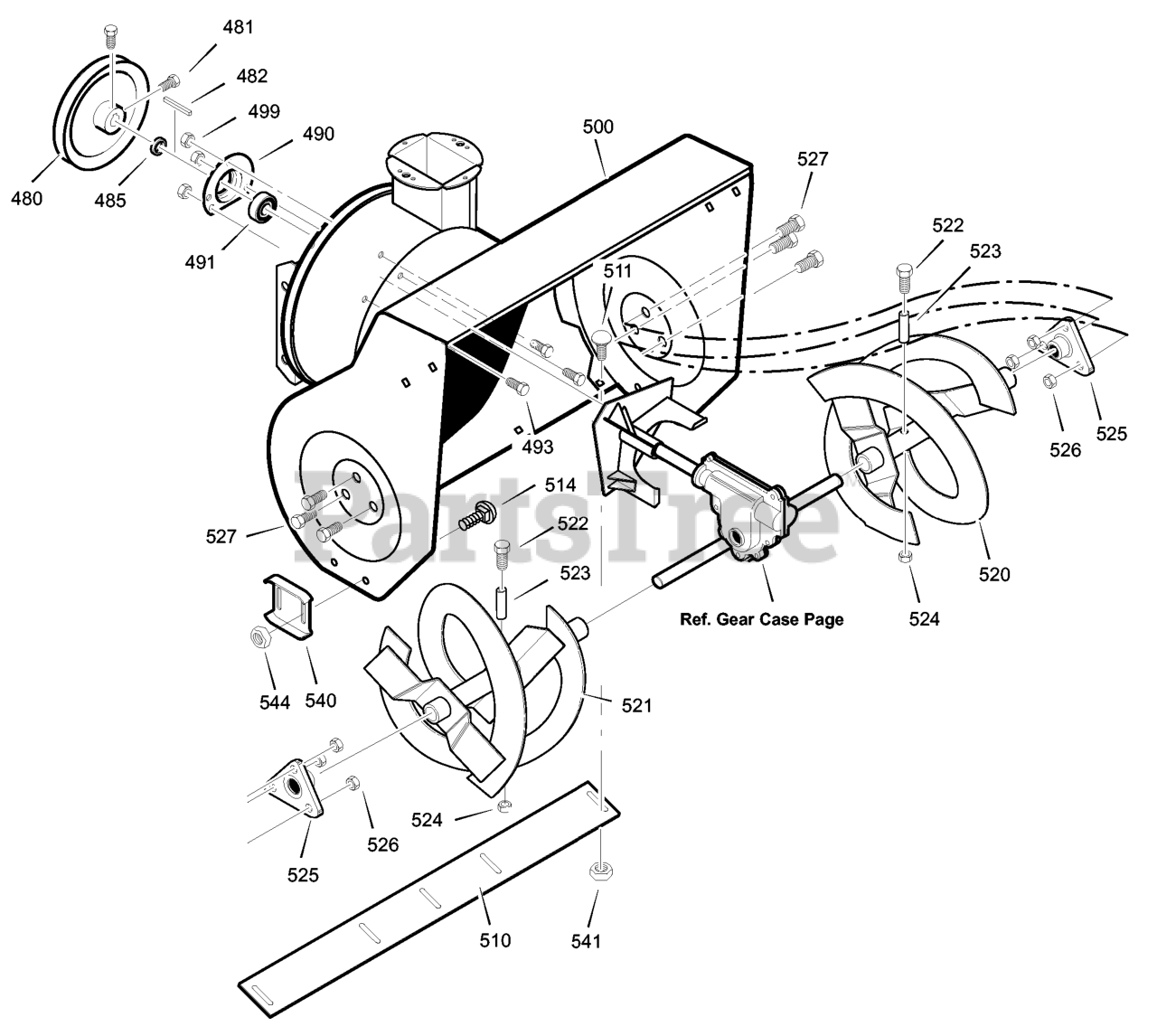

Auger Housing Parts Diagram

  • Title
480

Murray 1501211MA

PULLEY, 4L 6.12X .67

$71.99

$

In Stock, only 3 left!

0

481

Murray 577400MA

SCREW, 5/16-18 x 0.63

$4.99

$

Usually ships in 2-12 days

0

482

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.49

$

In Stock, Qty 12

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

490

Murray 582957 YZ

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 43846

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X92MA

BOLT, HEX 5/16-18X .50

$5.49

$

In Stock, only 3 left!

0

499

Murray 710026

NUT, 5/16-18 HEX

$

$

Not available

500

Murray 1501437E245

HOUSING, ASSY

$

$

Currently unavailable

510

Murray 760656E701MA

BLADE, SCRAPER
(Superseded to 1740745BMYP)

$

$

Not available

511

Murray 340714MA

BOLT, 1/4-20X.75
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

514

Murray 780285MA

NUT, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

520

Murray 1501445E701

AUGER, ASSY, LH

$170.99

$

Usually ships in 2-12 days

0

521

Murray 1501444E701

AUGER, ASSY, RH

$

$

Not available

522

Murray 9524MA

SCREW, 1/4-20X1.75
(Superseded to 703057)

$5.99

$

In Stock, Qty 5

0

523

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 3 left!

0

524

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

525

Murray 9517MA

BEARING,FLANGE

$5.99

$

In Stock, Qty 20+

0

526

Murray 711862MA

NUT, 5/16-18

$4.99

$

In Stock, Qty 5

0

527

Murray 9357MA

SCREW, 5/16-18 x 0.75
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

540

Murray 762377E701

SKID, HEIGHT ADJUST

$13.99

$

In Stock, Qty 12

0

541

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

544

Murray 710026

NUT, 5/16-18

$

$

Not available

--

Murray 1501216MA

KIT, SHEAR BOLT

$4.99

$

In Stock, Qty 20+

0
