627850x0A - Briggs & Stratton 27" Snow Thrower, Dual Stage (2003) Remote Control Parts Diagram

27" Snow Thrower, Dual Stage

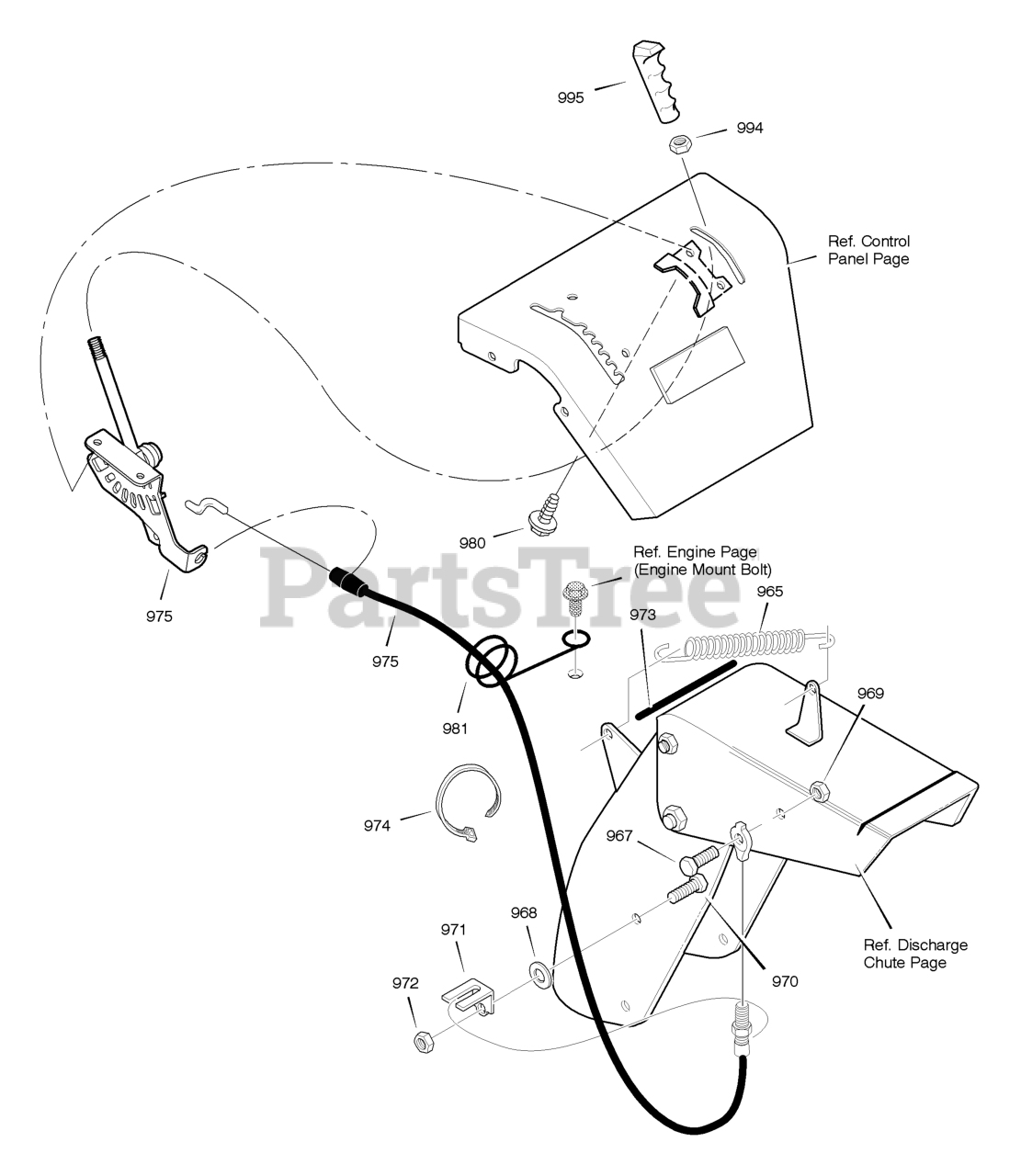

Remote Control Parts Diagram

  • Title

965

Murray 318468MA

TENSION SPRING

$8.49

$

In Stock, only 1 left!

0

967

Murray 310088MA

BOLT

$4.99

$

Usually ships in 2-12 days

0

968

Murray 73787MA

FLATWASHER

$6.99

$

Usually ships in 2-12 days

0

969

Murray 15X143MA

NUT

$4.99

$

In Stock, Qty 13

0

970

Murray 313676

SCREW

$1.49

$

Usually ships in 2-12 days

0

971

Murray 306447 YZ

BRACKET, CABLE CHUTE

$15.99

$

Usually ships in 2-12 days

0

972

Murray 71391

NUT
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

973

Murray 1001221MA

TRIM STRIP

$5.99

$

Usually ships in 2-12 days

0

974

Murray 760113MA

TIE, CABLE

$5.49

$

Usually ships in 2-12 days

0

975

Murray 1501393MA

ASSY, CHUTE DEF. CONTROL

$

$

Not available

980

Murray 760858MA

SCREW
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

981

Murray 780220MA

WIRE FORM, REMOTE CHUTE CABLE

$6.99

$

Usually ships in 2-12 days

0

994

Murray 71045

NUT

$

$

Not available

995

Murray 306689MA

GRIP

$14.99

$

Usually ships in 2-12 days

0
