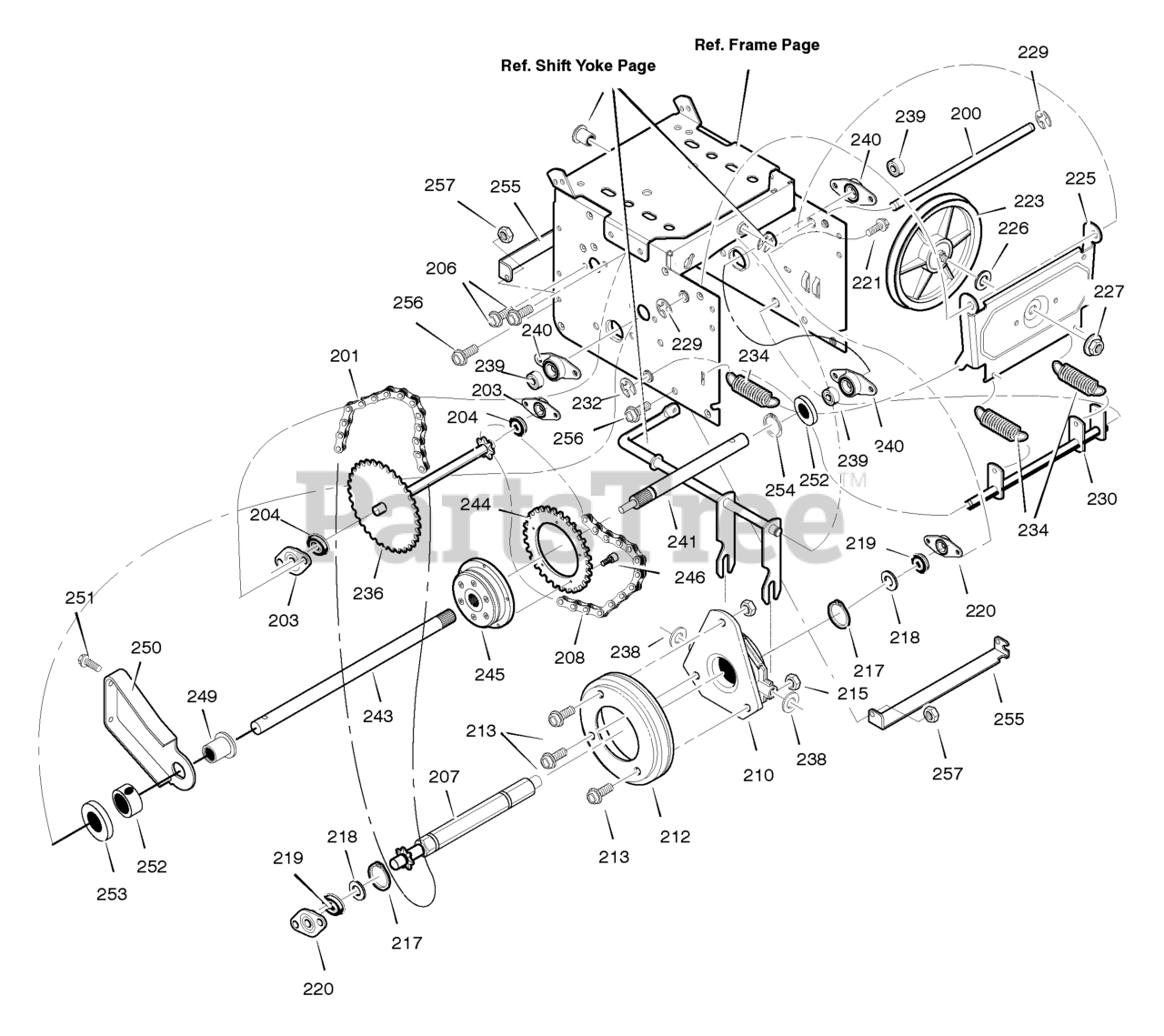

627815x85A - Murray 27" Snow Thrower (2004) Drive Parts Diagram

27" Snow Thrower

Drive Parts Diagram

  • Title
200

Murray 1501092 YZ

LF AXLE, SWING PLATE YZ
(Superseded to 703328)

$21.99

$

Usually ships in 2-12 days

0

201

Murray 579851MA

CHAIN, ROLLER #420 x 19.00

$21.99

$

In Stock, Qty 16

0

203

Murray 579850MA

RETAINER ASSY, BEARING

$8.49

$

Usually ships in 2-12 days

0

204

Murray 579863MA

BEARING

$14.99

$

In Stock, only 2 left!

0

206

Murray 25X020MA

SCREW, TAP 5/16-18 x 0.5

$4.99

$

In Stock, Qty 6

0

207

Murray 1502032

ASSY, HEX SHAFT
(Superseded to 1502032MA)

$47.99

$

Usually ships in 2-12 days

0

208

Murray 579868MA

CHAIN, ROLLER #420x18.00 LG

$20.99

$

In Stock, Qty 17

0

210

Murray 337029MA

BEARING, TRUNION CLUTCH R
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 5

0

212

Murray 1501435MA

WHEEL, FRICTION DISC

$27.99

$

In Stock, Qty 9

0

213

$4.49

$

In Stock, Qty 18

0

215

Murray 303008MA

NUT, KEPS HEX 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

217

Murray 579859MA

RING, RETEXT

$4.49

$

Usually ships in 2-12 days

0

218

$4.49

$

In Stock, Qty 20+

0

219

Murray 579863MA

BEARING, BALL

$14.99

$

In Stock, only 2 left!

0

220

Murray 579850MA

RETAINER, BEARING

$8.49

$

Usually ships in 2-12 days

0

221

Murray 25X020MA

SCREW, TAP 5/16-18 x .5

$4.99

$

In Stock, Qty 6

0

223

Murray 1501115MA

FRICTION PULLEY

$

$

Not available

225

Murray 1501057 YZ

LF PLATE, SWINGING YZ
(Superseded to 1501057YZMA)

$37.99

$

In Stock, only 1 left!

0

226

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

227

Murray 15X114

NUT, FLANGE LOCK 3/8-24
(Superseded to 15X114MA)

$4.49

$

Usually ships in 2-12 days

0

229

Murray 11X30MA

RETAINER, RING

$4.49

$

In Stock, Qty 12

0

230

Murray 1501626 YZ

ASSY., SPRING LINK -STEERABLE

$45.99

$

Usually ships in 2-12 days

0

232

Murray 11X30MA

RETAINER, RING

$4.49

$

In Stock, Qty 12

0

234

Murray 165X112MA

SPRING, EXTENSION
(Superseded to 1736469YP)

$6.99

$

In Stock, Qty 20+

0

236

Murray 1501102

SPROCKET SET 33T/7
(Superseded to 1501102MA)

$80.99

$

Usually ships in 2-12 days

0

238

Murray 71074

WASHER, FLAT
(Superseded to 71074MA)

$

$

Not available

239

Murray 53263MA

BEARING, BALL

$38.99

$

In Stock, only 2 left!

0

240

Murray 50648MA

RETAINER, BEARING

$

$

Not available

241

Murray 1502044MA

AXLE & PIN ASSY. -STEER BB LEFT

$74.99

$

Usually ships in 2-12 days

0

243

Murray 1502040MA

AXLE & BUSHING ASSY. STEER BB RH
(Superseded to 1502047MA)

$143.99

$

Usually ships in 2-12 days

0

244

Murray 1501623MA

SPROCKET

$18.99

$

Usually ships in 2-12 days

0

245

Murray 1501619MA

CLUTCH, AUTO LOCK

$

$

Not available

246

$3.49

$

Usually ships in 2-12 days

0

249

Murray 1501114MA

BEARING, AXLE

$11.99

$

In Stock, Qty 20+

0

250

Murray 1501618 YZ

BRACKET, AXLE SUPPORT
(Superseded to 1501618YZMA)

$30.99

$

Usually ships in 2-12 days

0

251

Murray 25X021MA

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

252

Murray 1501620MA

COLLAR, LOCKING

$16.99

$

Usually ships in 2-12 days

0

253

$4.99

$

In Stock, only 4 left!

0

254

Murray 011X32MA

RETAINER, RING

$3.99

$

Usually ships in 2-12 days

0

255

Murray 1502030 YZ

BRACKET, SUPPORT
(Superseded to 704216)

$9.49

$

Usually ships in 2-12 days

0

256

$4.49

$

In Stock, Qty 18

0

257

Murray 780285MA

NUT
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0
