627809x54B - Murray 27" Snow Thrower (2001) Handle Assembly Parts Diagram

27" Snow Thrower

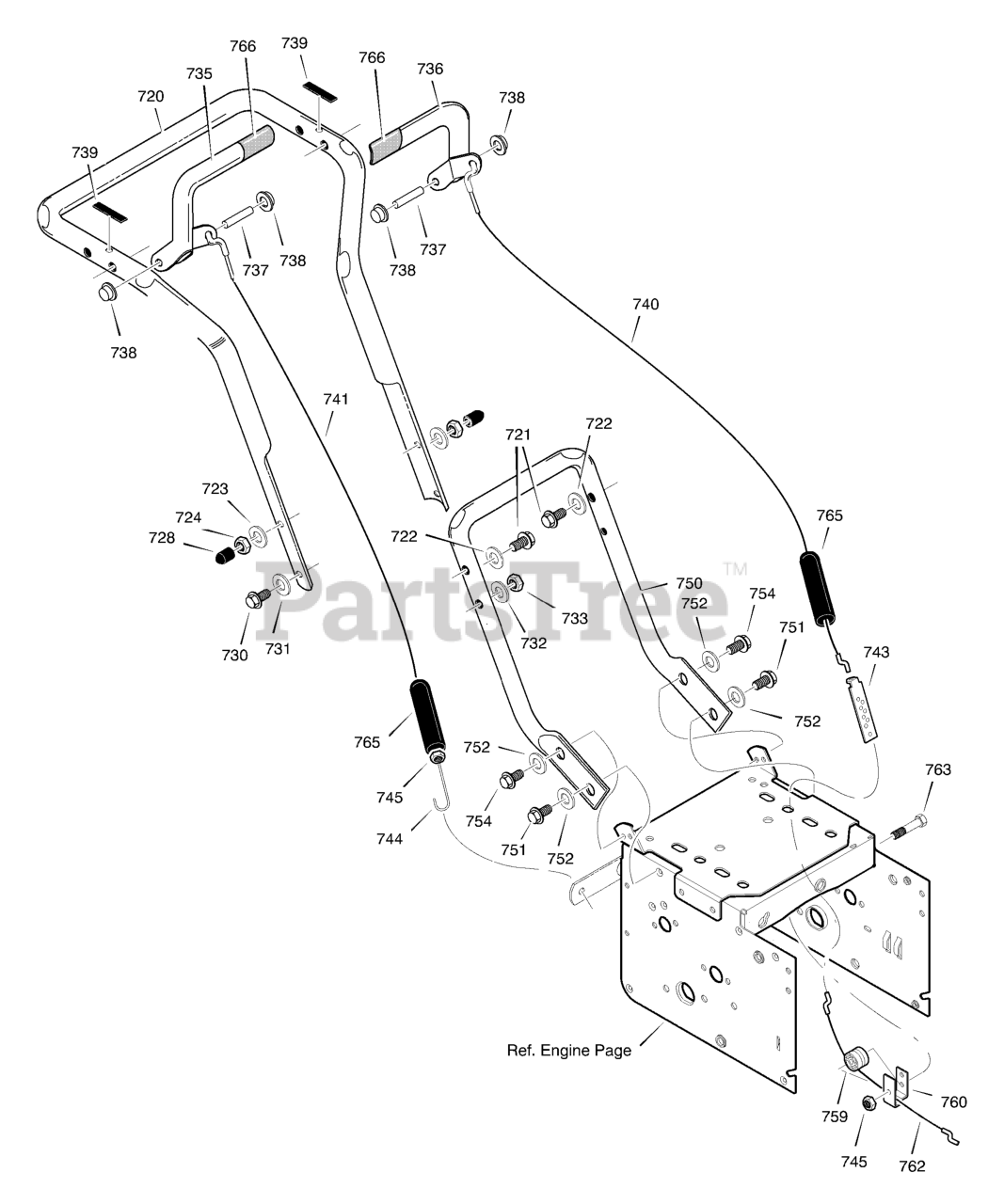

Handle Assembly Parts Diagram

  • Title
720

Murray 310614E717

HANDLE, UPPER

$

$

Currently unavailable

721

Murray 7288MA

SCREW, 3/8-16 x 3.00

$4.49

$

Usually ships in 2-12 days

0

722

Murray 71072

WASHER, FLAT

$

$

Not available

723

Murray 71062

WASHER

$

$

Not available

724

Murray 71044

NUT, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

728

Murray 7289MA

STOP, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

730

Murray 71007

SCREW, 3/8-16 X 2

$

$

Not available

731

Murray 71072

WASHER, FLAT

$

$

Not available

732

Murray 71062

WASHER

$

$

Not available

733

Murray 71044

NUT, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

735

Murray 5146E717

HANDLE, RIGHT

$

$

Currently unavailable

736

Murray 5142E717

HANDLE, LEFT

$

$

Currently unavailable

737

Murray 760074MA

PIN, PIVOT CLUTCH

$10.99

$

Usually ships in 2-12 days

0

738

Murray 3535MA

NUT, PUSH ON CAP

$4.99

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER, RECTANGLE

$

$

Not available

740

Murray 1501123MA

CABLE, DRIVE

$12.99

$

In Stock, Qty 20+

0

741

Murray 761872MA

CABLE, AUGER CLUTCH

$15.99

$

In Stock, Qty 10

0

743

Murray 313441MA

BRACKET, CABLE ADJUSTER

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 13

0

745

Murray 780029

NUT, 1/4-20

$

$

Not available

750

Murray 5543E717

HANDLE, LOWER

$

$

Not available

751

Murray 70984

SCREW, TAP 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

752

Murray 071060

WASHER, SPTLK

$3.49

$

In Stock, Qty 20+

0

754

Murray 70984

SCREW, TAP 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

759

Murray 579860MA

SPOOL-CABLE, AUGRT CLUTCH

$5.99

$

In Stock, Qty 10

0

760

Murray 1501059 YZ

BRACKET, CABLE SPOOL YZ
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

762

Murray 1501122MA

CABLE, LOWER DRIVE 12

$8.49

$

In Stock, Qty 20+

0

763

Murray 01X186MA

BOLT, HEX 1/4-20 X 1.75 YZ

$4.49

$

Usually ships in 2-12 days

0

765

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

In Stock, only 3 left!

0

766

$4.49

$

Usually ships in 2-12 days

0
