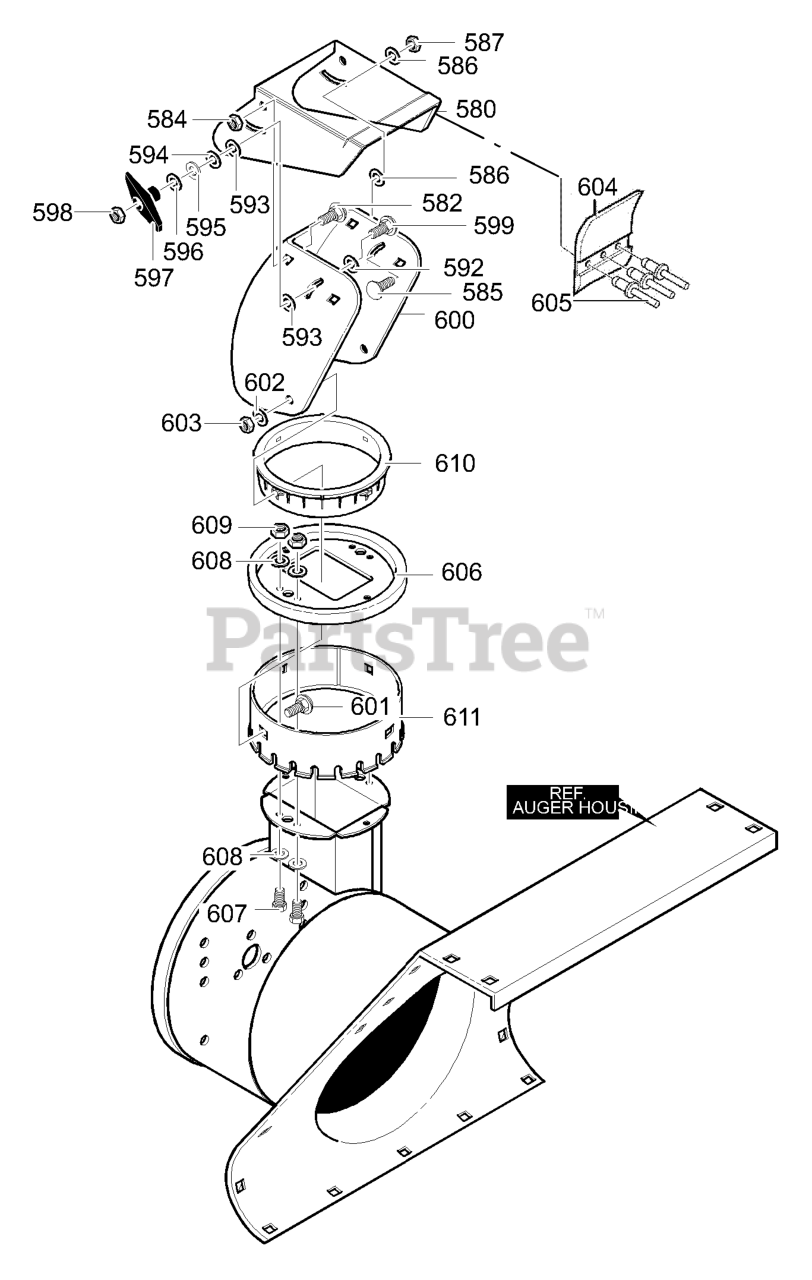

627809x54A - Murray 27" Snow Thrower (2001) Discharge Chute Assembly Parts Diagram

27" Snow Thrower

Discharge Chute Assembly Parts Diagram

  • Title
580

Murray 761070-853

CHUTE, UPPER RH CONTROL

$9.99

$

Usually ships in 2-12 days

0

582

$4.99

$

In Stock, only 1 left!

0

584

Murray 71038

LOCKNUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

585

$4.99

$

In Stock, only 1 left!

0

586

Murray 6711MA

WASHER, PLASTIC

$3.99

$

Usually ships in 2-12 days

0

587

Murray 71038

LOCKNUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

592

Murray 12021

WASHER, PLASTIC
(Superseded to 12021MA)

$3.99

$

In Stock, only 4 left!

0

593

Murray 6711MA

WASHER, PLASTIC

$3.99

$

Usually ships in 2-12 days

0

594

Murray 120393

WASHER, FLAT

$

$

Not available

595

Murray 120638

WASHER

$

$

Not available

596

Murray 120393

WASHER, FLAT

$

$

Not available

597

Murray 13527

T-KNOB

$

$

Not available

598

Murray 71037

HEXNUT
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

599

$

$

Not available

600

Murray 761328-821

ASSEMBLY, CHUTE

$

$

Currently unavailable

601

$

$

Not available

602

Murray 120393

WASHER, FLAT

$

$

Not available

603

Murray 71038

LOCKNUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

Murray 762322MA

FLAP, CHUTE INSERT

$6.49

$

Usually ships in 2-12 days

0

605

Murray 760987MA

RIVET, POP ALM .125 X .23

$3.99

$

In Stock, only 1 left!

0

606

$

$

Currently unavailable

607

$4.49

$

In Stock, Qty 7

0

608

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

609

Murray 780029

LOCKNUT

$

$

Not available

610

Murray 337227MA

RETAINER RING, INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 585193MA

RETAINER RING, OUTER

$29.99

$

In Stock, Qty 20+

0
