627808x61A - Murray 27" Snow Thrower (2000) Panel Assembly Parts Diagram

27" Snow Thrower

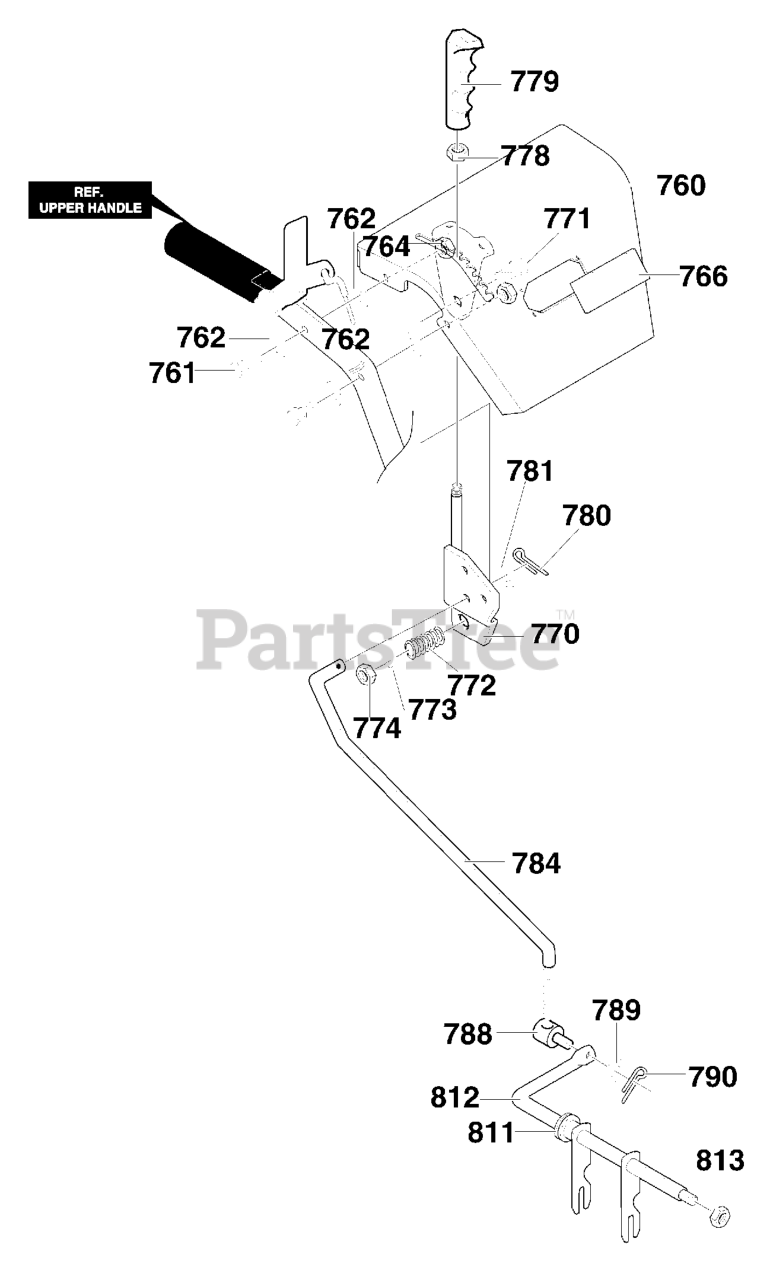

Panel Assembly Parts Diagram

  • Title
760

Murray 760328-850

ASSY, PANEL

$

$

Currently unavailable

761

Murray 302900MA

SCREW 5/16-18X1.75

$4.49

$

Usually ships in 2-12 days

0

762

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

764

Murray 710026

NUT 5/16-18 HEXWDFLLK

$

$

Not available

766

Murray 578978

PLATE, PANEL

$6.49

$

Usually ships in 2-12 days

0

770

Murray 85031

HANDLE ASSY SPD CTRL

$11.99

$

Usually ships in 2-12 days

0

771

Murray 71007

SCREW 3/8-16X2.00

$

$

Not available

772

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71072

FLATWASHER

$

$

Not available

774

Murray 71046

NUT, 3/8-16 HEXNYL
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

778

Murray 71044

NUT, 3/8-16 REGHEX

$3.49

$

Usually ships in 2-12 days

0

779

Murray 306689MA

HANDLE 3/8-16

$14.99

$

Usually ships in 2-12 days

0

780

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

781

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

784

Murray 330635MA

ROD, SPEED CONTROL

$

$

Not available

788

Murray 584593

NUT, TRUNNION

$5.49

$

Usually ships in 2-12 days

0

789

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

790

Murray 071081

COTTER PIN

$3.49

$

Usually ships in 2-12 days

0

811

Murray 579944MA

BEARING, FLANGE

$15.99

$

Usually ships in 2-12 days

0

812

Murray 337436

ROD, ASSY YOKE

$

$

Not available

813

Murray 071111

NUT, 3/8-16 HXCTRLK

$3.99

$

Usually ships in 2-12 days

0
