627808x61A - Murray 27" Snow Thrower (2000) Chute Rod Assembly Parts Diagram

27" Snow Thrower

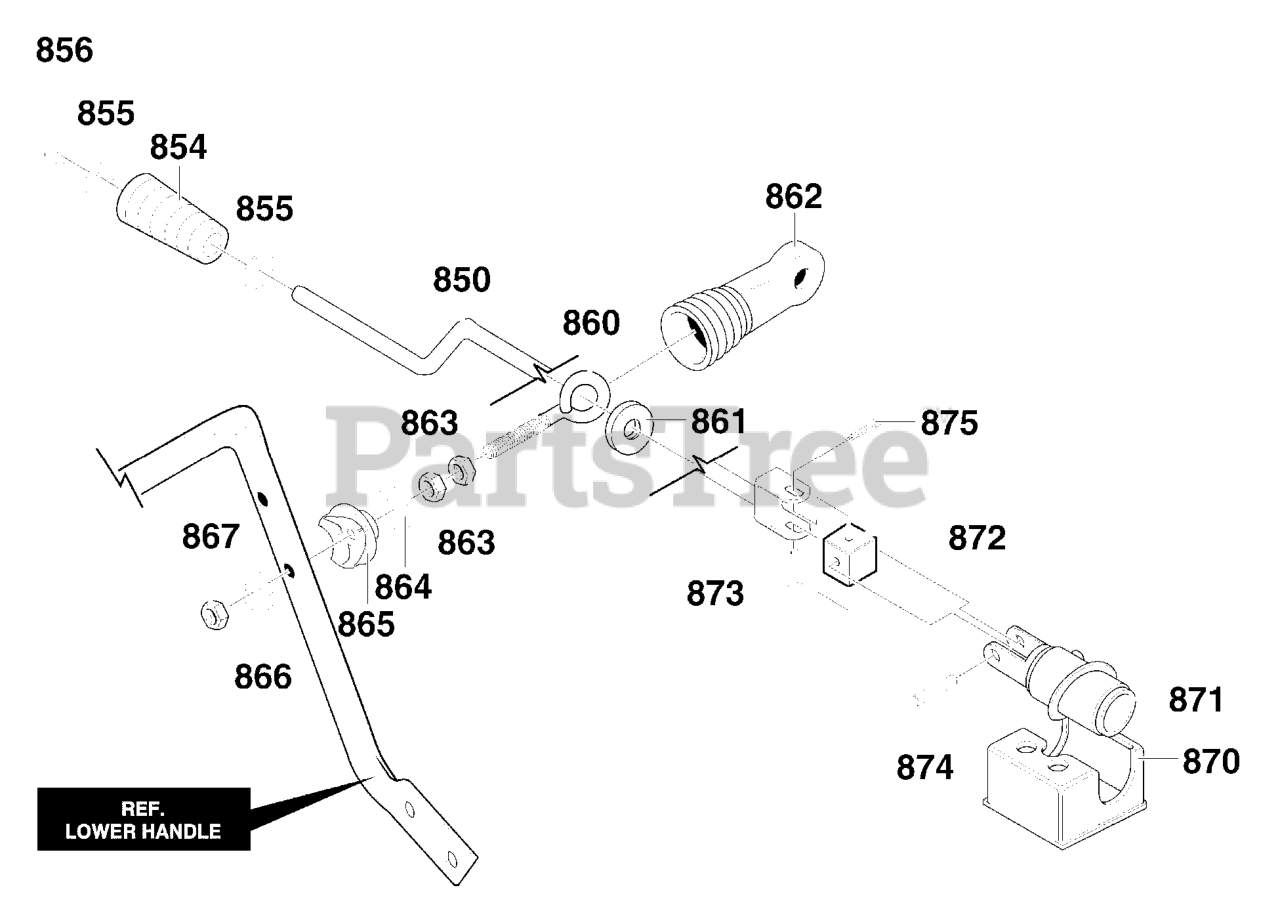

Chute Rod Assembly Parts Diagram

  • Title

850

Murray 585426MA

CRANK, ASSY

$54.99

$

Usually ships in 2-12 days

0

854

Murray 307399MA

HANDLE

$9.99

$

In Stock, only 1 left!

0

855

Murray 309312MA

WASHER, FLAT .406X .81X.066

$4.49

$

In Stock, only 3 left!

0

856

Murray 578159MA

RING, RETAINER

$3.99

$

Usually ships in 2-12 days

0

860

Murray 581618MA

BOLT, EYE 3/8-16X6.00

$5.49

$

Usually ships in 2-12 days

0

861

Murray 148MA

GROMMET, EYE BOLT

$

$

Not available

862

Murray 308145MA

BOOT
(Superseded to 1501457MA)

$8.99

$

Usually ships in 2-12 days

0

863

Murray 71045

NUT, 3/8-16 HEXJAM

$

$

Not available

864

Murray 71072

WASHER, FLAT .406X .81X.066

$

$

Not available

865

Murray 309344MA

ADAPTOR, BOOT TO HANDLE

$

$

Not available

866

Murray 71072

WASHER, FLAT .406X .81X.066

$

$

Not available

867

Murray 71046

NUT, 3/8-16 HEXNYL
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

870

Murray 585195MA

BRKT, WORM

$

$

Not available

871

Murray 585196MA

WORM, GEAR CHUTE

$11.99

$

In Stock, Qty 6

0

872

Murray 578063MA

BLOCK, UNIV PIV

$5.49

$

In Stock, only 3 left!

0

873

Murray 578309MA

PIN, CLEVIS

$5.49

$

In Stock, Qty 7

0

874

Murray 578060MA

PIN, UNIV JOINT

$7.49

$

Usually ships in 2-12 days

0

875

Murray 579493MA

PIN, COTTER

$4.49

$

Usually ships in 2-12 days

0
