627805x89A - Yard King 27" Snow Thrower (2000) Drive Components Assembly Parts Diagram

27" Snow Thrower

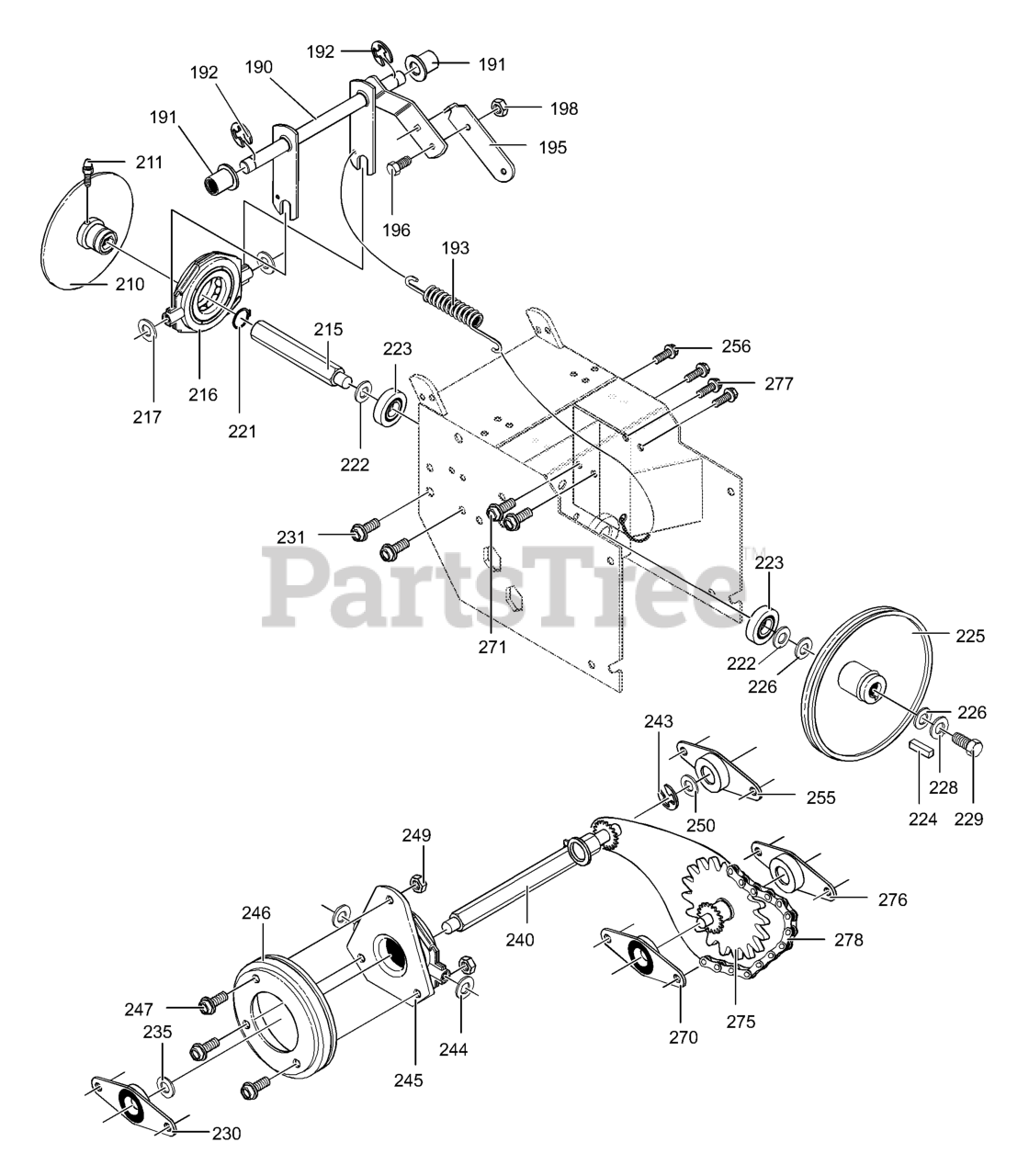

Drive Components Assembly Parts Diagram

  • Title

190

Murray 761820MA

LEVER, ASSY TRACTION CLUTCH

$136.99

$

Usually ships in 2-12 days

0

191

Murray 53703MA

BEARING, FLANGE

$4.49

$

Usually ships in 2-12 days

0

192

Murray 020864

RING, RET E

$3.99

$

Usually ships in 2-12 days

0

193

Murray 53818MA

SPRING, RETURN

$19.99

$

Usually ships in 2-12 days

0

195

Murray 579937MA

LEVER, SPRING

$5.49

$

Usually ships in 2-12 days

0

196

Murray 11871MA

SCREW, 1/4-20X .63

$3.99

$

Usually ships in 2-12 days

0

198

Murray 73826

NUT, 1/4-20 REGHEXCTRLK

$4.99

$

In Stock, Qty 20+

0

210

Murray 583163-821

DISC, ASSY

$17.99

$

Usually ships in 2-12 days

0

211

Murray 583206MA

ZERK, GREASE

$11.99

$

Usually ships in 2-12 days

0

215

Murray 583155MA

SHAFT, HEX TRACTION

$63.99

$

Usually ships in 2-12 days

0

216

Murray 85501MA

BEARING, TRUNION

$63.99

$

Usually ships in 2-12 days

0

217

Murray 71074

FLATWASHER, .53 X1.00X.063
(Superseded to 71074MA)

$

$

Not available

221

Murray 73811MA

RING, RETEX

$4.49

$

Usually ships in 2-12 days

0

222

Murray 580969MA

FLATWASHER, .680X1.12X.060

$4.49

$

Usually ships in 2-12 days

0

223

Murray 043846

BEARING, BALL

$34.99

$

In Stock, only 1 left!

0

224

Murray 2001022MA

KEY, SQUARE

$4.49

$

In Stock, Qty 11

0

225

Murray 580961MA

PULLEY, V3L 6.50X .56

$75.99

$

Usually ships in 2-12 days

0

226

Murray 580965MA

WASHER, WAVE

$2.99

$

Usually ships in 2-12 days

0

227

Murray 712123

FLATWASHER, .281X1.00X.063

$109.99

$

Usually ships in 2-12 days

0

228

Murray 071059MA

WASHER, SPLIT .26X.50X.06

$

$

Not available

229

Murray 01X176

SCREW, 1/4-20X .75 HHC

$3.49

$

Usually ships in 2-12 days

0

230

Murray 334163MA

BEARING & RETAINER

$11.99

$

In Stock, only 2 left!

0

231

Murray 780055MA

SCREW, 5/16-18 x 0.50
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

235

Murray 579858MA

WASHER,.502X .75X.0605

$4.49

$

In Stock, Qty 20+

0

240

Murray 762334

HEX, ASSY#40-8T W/PBRG

$

$

Currently unavailable

243

Murray 783002MA

RING, RETEX

$5.99

$

Usually ships in 2-12 days

0

244

Murray 71074

FLATWASHER, .53 X1.00X.063
(Superseded to 71074MA)

$

$

Not available

245

Murray 337029MA

BEARING, TRUNION
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 5

0

246

Murray 53830

WHEEL, ASSY FRICTION

$27.99

$

In Stock, Qty 20+

0

247

Murray 11871MA

SCREW, 1/4-20X .63

$3.99

$

Usually ships in 2-12 days

0

249

Murray 303008MA

NUT, 1/4-20 HEXKEPS
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

250

Murray 579858MA

WASHER,.502X .75X.0605

$4.49

$

In Stock, Qty 20+

0

255

Murray 334163MA

BEARING & RETAINER

$11.99

$

In Stock, only 2 left!

0

256

Murray 780055MA

SCREW, 5/16-18 x 0.50
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

270

Murray 334163MA

BEARING & RETAINER

$11.99

$

In Stock, only 2 left!

0

271

Murray 780055MA

SCREW, 5/16-18 x 0.50
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

275

Murray 761789MA

JACK, ASSY#41-36/7

$

$

Not available

276

Murray 334163MA

BEARING & RETAINER

$11.99

$

In Stock, only 2 left!

0

277

Murray 780055MA

SCREW
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

278

Murray 579867MA

CHAIN ROLLER

$24.99

$

In Stock, Qty 8

0
