627805x85C - Murray 27" Snow Thrower (2001) Handle Assembly Parts Diagram

27" Snow Thrower

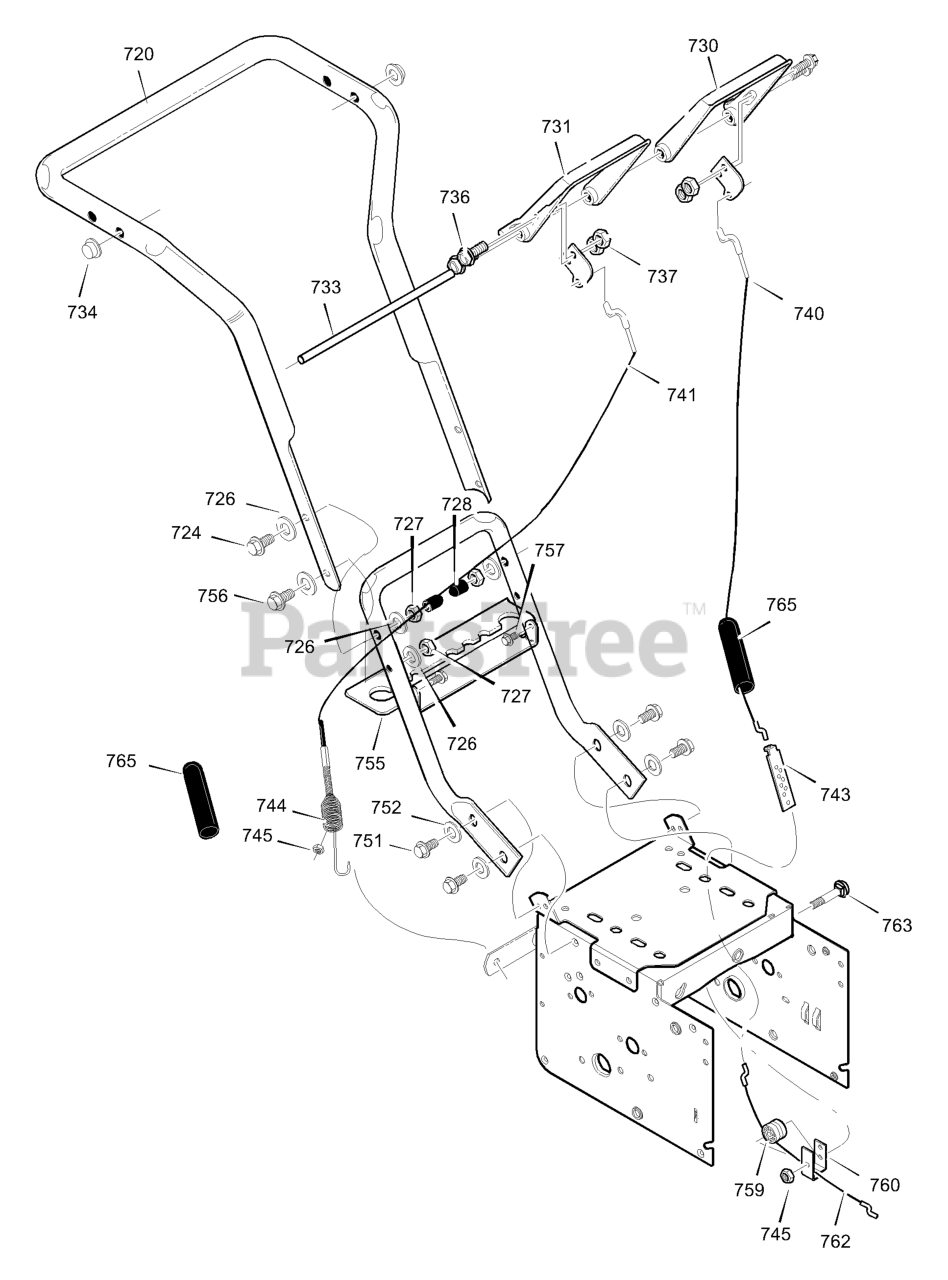

Handle Assembly Parts Diagram

  • Title
720

$114.99

$

Usually ships in 2-12 days

0

724

$5.99

$

Usually ships in 2-12 days

0

725

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

726

Murray 071060

WASHER

$3.49

$

In Stock, Qty 20+

0

727

Murray 71037

NUT
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

728

Murray 11261MA

PLASTIC-STOP

$4.49

$

Usually ships in 2-12 days

0

730

Murray 302557MA

CLUTCH, LEFT HANDLE CONTROL

$21.99

$

Usually ships in 2-12 days

0

731

Murray 302558MA

CLUTCH, RIGHT HANDLE CONTROL

$22.99

$

In Stock, only 1 left!

0

733

Murray 12621

ROD, PIVOT HANDLE

$

$

Not available

734

Murray 3535MA

PUSH ON CAP

$4.99

$

Usually ships in 2-12 days

0

735

Murray 302620E701

PLATE, CABLE PIVOT

$

$

Not available

736

$2.99

$

Usually ships in 2-12 days

0

737

$4.99

$

In Stock, Qty 20+

0

740

Murray 1501123MA

CABLE, CLUTCH

$12.99

$

In Stock, Qty 20+

0

741

Murray 761589MA

CABLE, AUGER CLUTCH

$15.99

$

In Stock, only 3 left!

0

743

Murray 313441MA

BRKT, CABLE ADJUST

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 13

0

745

Murray 780029

LOCKNUT

$

$

Not available

755

Murray 337407E701MA

BRACKET, GEAR SELECTOR

$23.99

$

Usually ships in 2-12 days

0

756

UNKNOWN

$

$

Not available

757

$4.49

$

In Stock, only 1 left!

0

750

Murray 339541E701MA

HANDLE, LOWER
(Superseded to 1740701ASM)

$140.99

$

Usually ships in 2-12 days

0

751

Murray 70984

SCREW

$4.49

$

In Stock, Qty 20+

0

752

Murray 071060

WASHER

$3.49

$

In Stock, Qty 20+

0

759

Murray 579860MA

SPOOL-CABLE, AUGRT CLUTCH

$5.99

$

In Stock, Qty 10

0

760

Murray 1501059 YZ

BRACKET, CABLE SPOOL YZ
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

762

Murray 1501122MA

CABLE, LOWER DRIVE 12"

$8.49

$

In Stock, Qty 20+

0

763

Murray 01X186MA

BOLT, HEX 1/4-20 X 1.75 YZ

$4.49

$

Usually ships in 2-12 days

0

765

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

In Stock, only 3 left!

0
