627805x85C - Murray 27" Snow Thrower (2001) Discharge Chute Assembly Parts Diagram

27" Snow Thrower

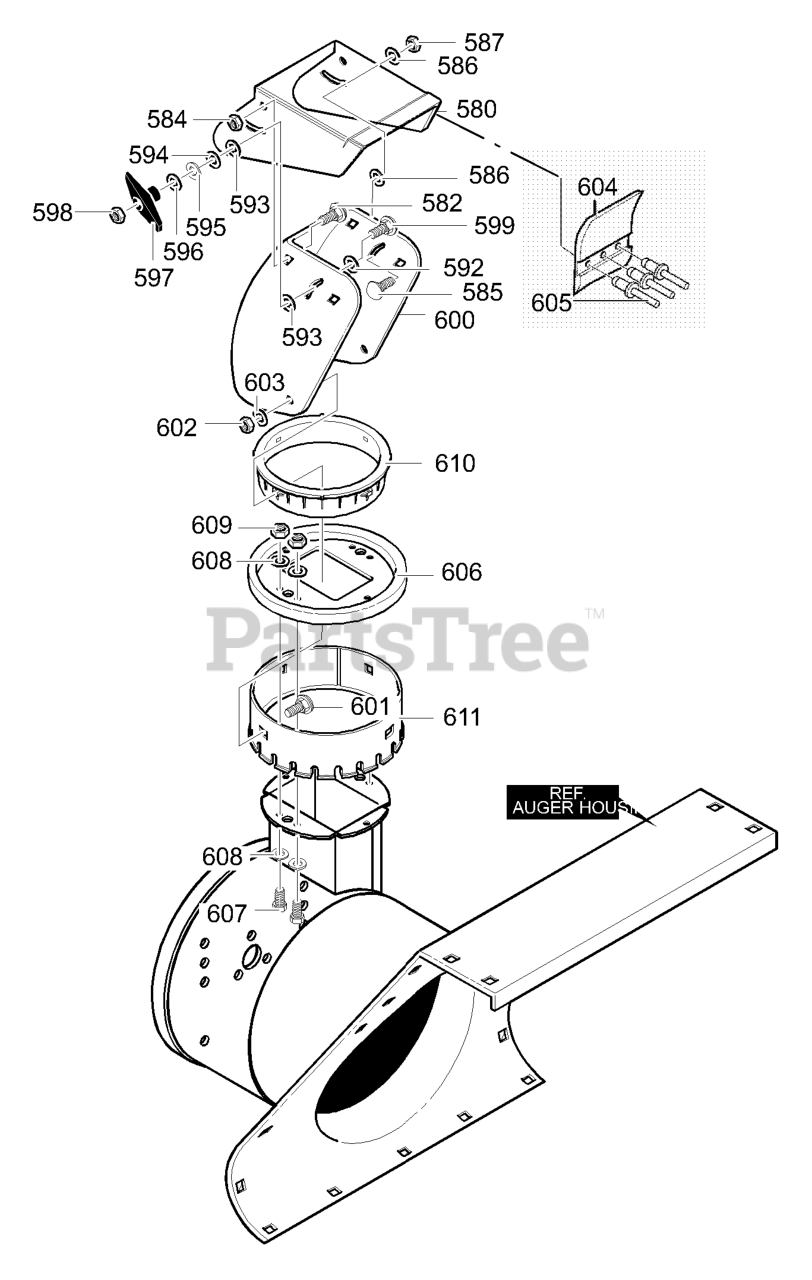

Discharge Chute Assembly Parts Diagram

  • Title

580

Murray 761070E701

CHUTE, UPPER RH CONTROL

$28.99

$

Usually ships in 2-12 days

0

582

Murray 578088MA

SCREW

$4.99

$

In Stock, only 1 left!

0

584

Murray 71038

LOCKNUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

585

Murray 578088MA

SCREW

$4.99

$

In Stock, only 1 left!

0

586

Murray 6711MA

WASHER, PLASTIC

$3.99

$

Usually ships in 2-12 days

0

587

Murray 71038

LOCKNUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

592

Murray 12021

WASHER, PLASTIC
(Superseded to 12021MA)

$3.99

$

In Stock, only 4 left!

0

593

Murray 6711MA

WASHER, PLASTIC

$3.99

$

Usually ships in 2-12 days

0

594

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

595

Murray 071060

WASHER

$3.49

$

In Stock, Qty 20+

0

596

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

597

Murray 57171

T-KNOB
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 8

0

598

Murray 71037

HEXNUT
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

599

Murray 3316MA

BOLT

$3.49

$

Usually ships in 2-12 days

0

600

Murray 761328E701

ASSEMBLY, CHUTE

$136.99

$

Usually ships in 2-12 days

0

601

Murray 586280

BOLT

$

$

Not available

602

Murray 71038

LOCKNUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

603

Murray 120393

WASHER, FLAT

$

$

Not available

604

Murray 762322MA

FLAP, CHUTE INSERT

$6.49

$

Usually ships in 2-12 days

0

605

Murray 760987MA

RIVET, POP ALM .125 X .23

$3.99

$

In Stock, only 1 left!

0

606

Murray 585214 YZ

COLLAR

$31.99

$

In Stock, only 3 left!

0

607

Murray 002X98MA

BOLT, CARR.1/4-20 x1.00
(Superseded to 703584)

$3.99

$

In Stock, Qty 9

0

608

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

609

Murray 780029

LOCKNUT

$

$

Not available

610

Murray 337227MA

RETAINER RING, INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501054MA

RETAINER RING, OUTER

$

$

Not available
