627804x89D - Yard King 27" Snow Thrower (2002) Control Panel Assembly Parts Diagram

27" Snow Thrower

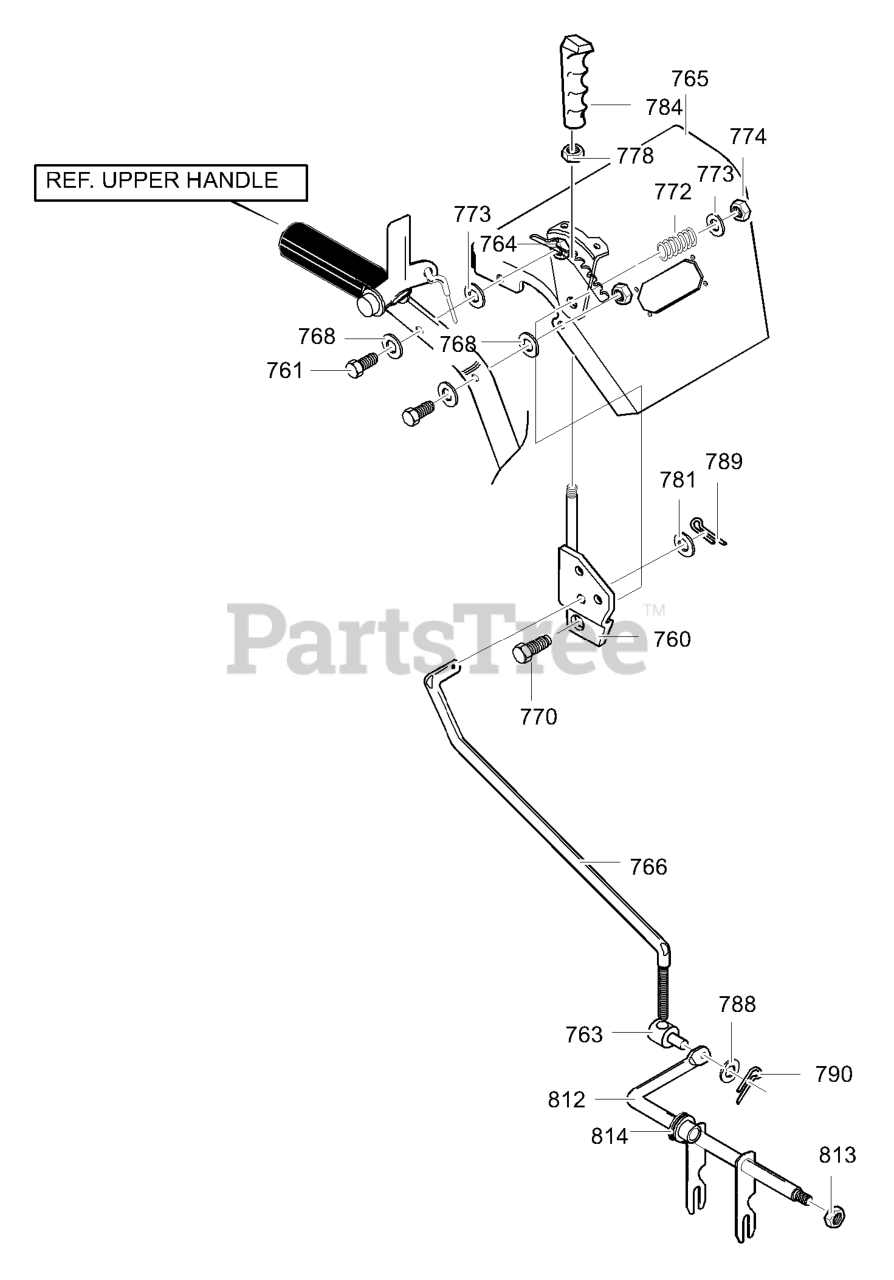

Control Panel Assembly Parts Diagram

  • Title

760

Murray 85030 YZ

HANDLE ASSY SPD CTRL

$14.99

$

In Stock, only 1 left!

0

761

Murray 302900MA

SCREW, 5/16-18 x 1.75

$4.49

$

Usually ships in 2-12 days

0

763

Murray 584593

NUT, TRUNNION

$5.49

$

Usually ships in 2-12 days

0

764

Murray 710026

NUT, 5/16-18 HEXWDFLLK

$

$

Not available

765

Murray 1501414E540

ASSY. BAY LT

$

$

Currently unavailable

766

Murray 330635MA

ROD, SPEED CONTROL

$

$

Not available

768

UNKNOWN

$

$

Not available

770

Murray 71007

SCREW 3/8-16X2.00

$

$

Not available

772

Murray 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71072

FLATWASHER

$

$

Not available

774

Murray 71046

NUT, 3/8-16 HEXNYL
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

778

Murray 71044

NUT, 3/8-16 REGHEX

$3.49

$

Usually ships in 2-12 days

0

781

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

784

Murray 306689MA

HANDLE 3/8-16

$14.99

$

Usually ships in 2-12 days

0

788

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

789

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

790

Murray 071081

COTTER PIN

$3.49

$

Usually ships in 2-12 days

0

812

Murray 1501110 YZ

ROD, ASSY YOKE
(Superseded to 1501110YZMA)

$50.99

$

In Stock, only 2 left!

0

813

Murray 11X30MA

RING, RETAINER

$4.49

$

In Stock, Qty 12

0

814

Murray 579944MA

BEARING, FLANGE

$15.99

$

In Stock, only 1 left!

0
