627804x89C - Yard King 27" Snow Thrower (2001) Auger Housing Parts Diagram

27" Snow Thrower

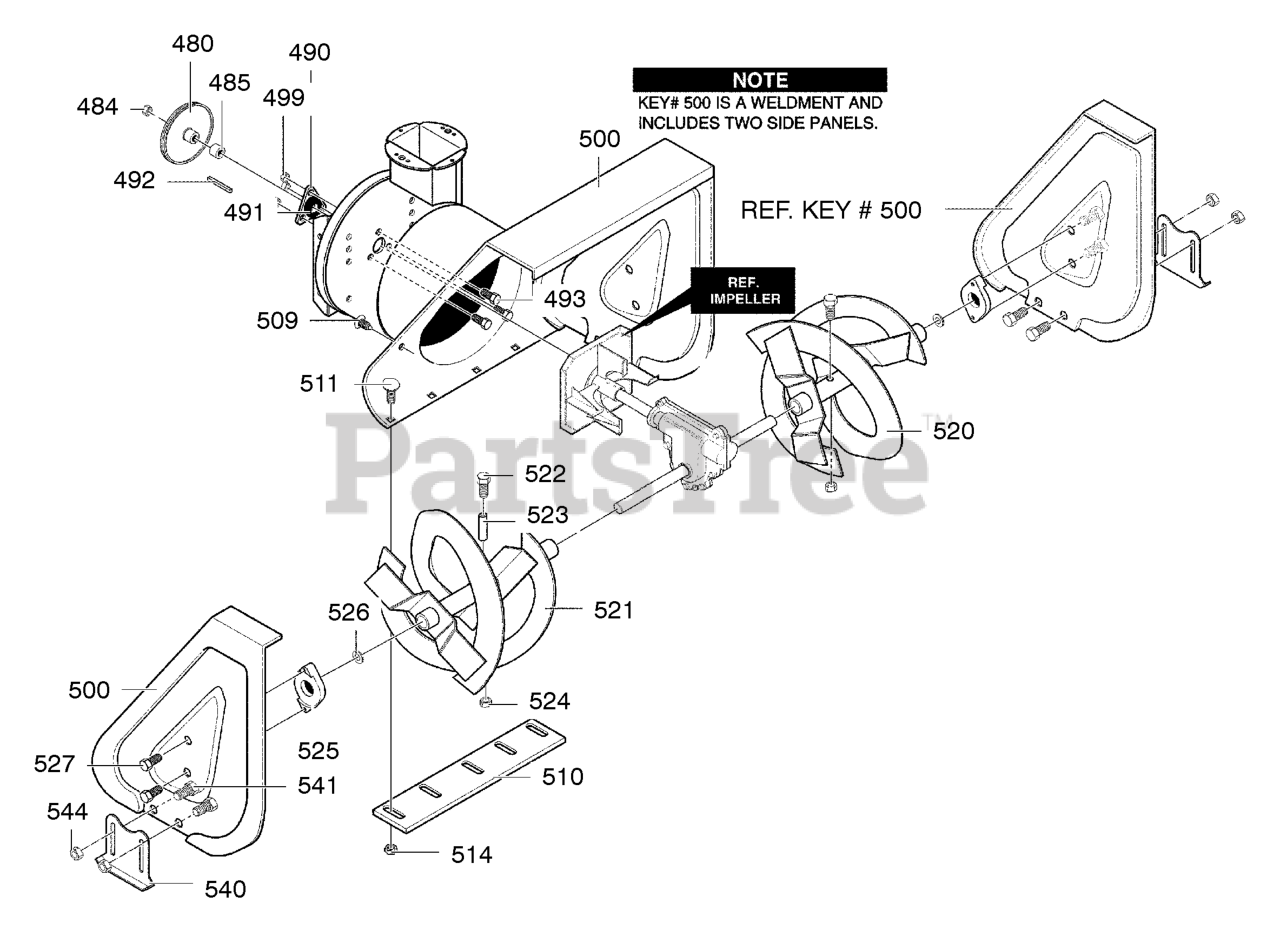

Auger Housing Parts Diagram

  • Title
480

$

$

Not available

484

Murray 15X112MA

NUT, 1/4-20

$5.49

$

In Stock, only 2 left!

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

490

Murray 582957 YZ

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 043846

BEARING, BALL

$34.99

$

Usually ships in 2-12 days

0

492

Murray 2001022MA

KEY, SQUARE

$4.49

$

In Stock, Qty 12

0

493

Murray 001X92MA

BOLT, HEX - 0.31-18X0.50

$5.49

$

In Stock, only 3 left!

0

499

Murray 710026

NUT, 5/16-18 HEXWDFLLK

$

$

Not available

500

Murray 1501120E020

HOUSING, ASSY

$144.99

$

Usually ships in 2-12 days

0

509

Murray 760040MA

PLUG, CHRISTMAS TREE

$4.49

$

Usually ships in 2-12 days

0

510

Murray 760656E717MA

BLADE, SCRAPER
(Superseded to 1740745BMYP)

$

$

Not available

511

Murray 340720MA

BOLT, 1/4-20X.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

514

$

$

Not available

520

Murray 760603E717

AUGER, ASSY, LH

$

$

Not available

521

Murray 760604E717

AUGER, ASSY, RH

$

$

Not available

522

Murray 9524MA

SCREW, 1/4-20X1.75
(Superseded to 703057)

$5.99

$

In Stock, Qty 6

0

523

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

524

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

525

Murray 53757MA

BEARING,FLANGE

$9.99

$

In Stock, only 2 left!

0

526

UNKNOWN

$

$

Not available

527

Murray 70984

SCREW, 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

540

Murray 762379E717MA

SKID, HEIGHT ADJUST
(Superseded to 762379E701MA)

$74.99

$

Usually ships in 2-12 days

0

541

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

544

Murray 710026

NUT, 5/16-18 REGHEX

$

$

Not available
