627804x54A - Murray 27" Snow Thrower (2004) Discharge Chute Parts Diagram

27" Snow Thrower

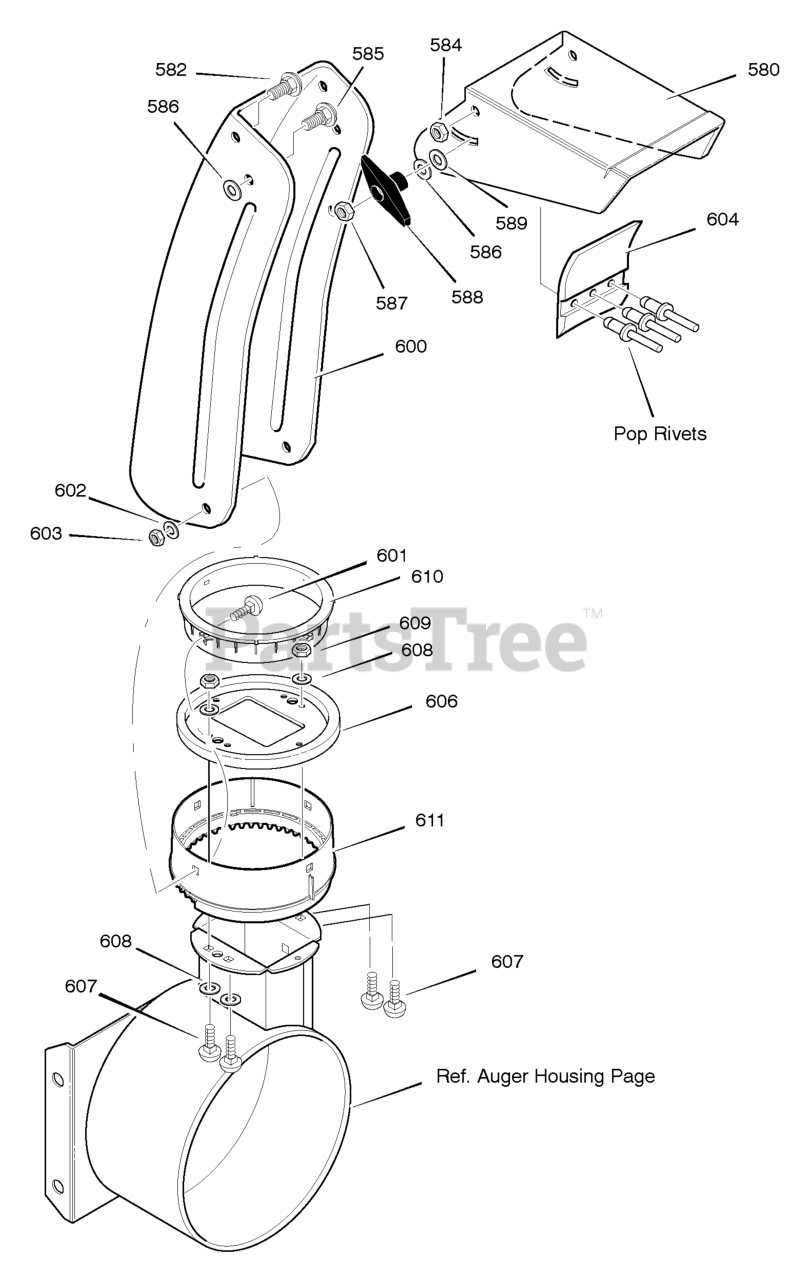

Discharge Chute Parts Diagram

  • Title
580

Murray 761070E717MA

CHUTE, UPPER

$35.99

$

Usually ships in 2-12 days

0

582

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

584

Murray 71038

NUT, 5/16-18 HEX NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

585

Murray 002X97MA

BOLT, CAR, 5/16-18 X1.5
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

586

Murray 6711MA

PLASTIC WASHER

$3.99

$

Usually ships in 2-12 days

0

587

Murray 15X144

NUT, 5/16-18 HEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

588

Murray 57171

KNOB, T
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 8

0

589

Murray 12021

PLASTIC WASHER
(Superseded to 12021MA)

$3.99

$

In Stock, only 4 left!

0

600

Murray 761328E717

CHUTE, LOWER

$136.99

$

Usually ships in 2-12 days

0

601

Murray 2X100MA

CARRIAGE BOLT, 5/16-18 x 1.00
(Superseded to 704217)

$

$

Not available

602

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

603

Murray 71038

NUT, 5/16-18 HEX NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

$6.49

$

Usually ships in 2-12 days

0

606

Murray 1501932 YZ

CHUTE COLLAR
(Superseded to 1501932YZMA)

$28.99

$

In Stock, only 1 left!

0

607

Murray 02X101MA

BOLT, 1/4-20 x .75
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

608

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

609

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227MA

RETAINER, RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501282MA

RING, OUTER CHUTE

$26.99

$

In Stock, only 2 left!

0
