627802x85B - Murray 27" Snow Thrower (2004) Wheels Parts Diagram

27" Snow Thrower

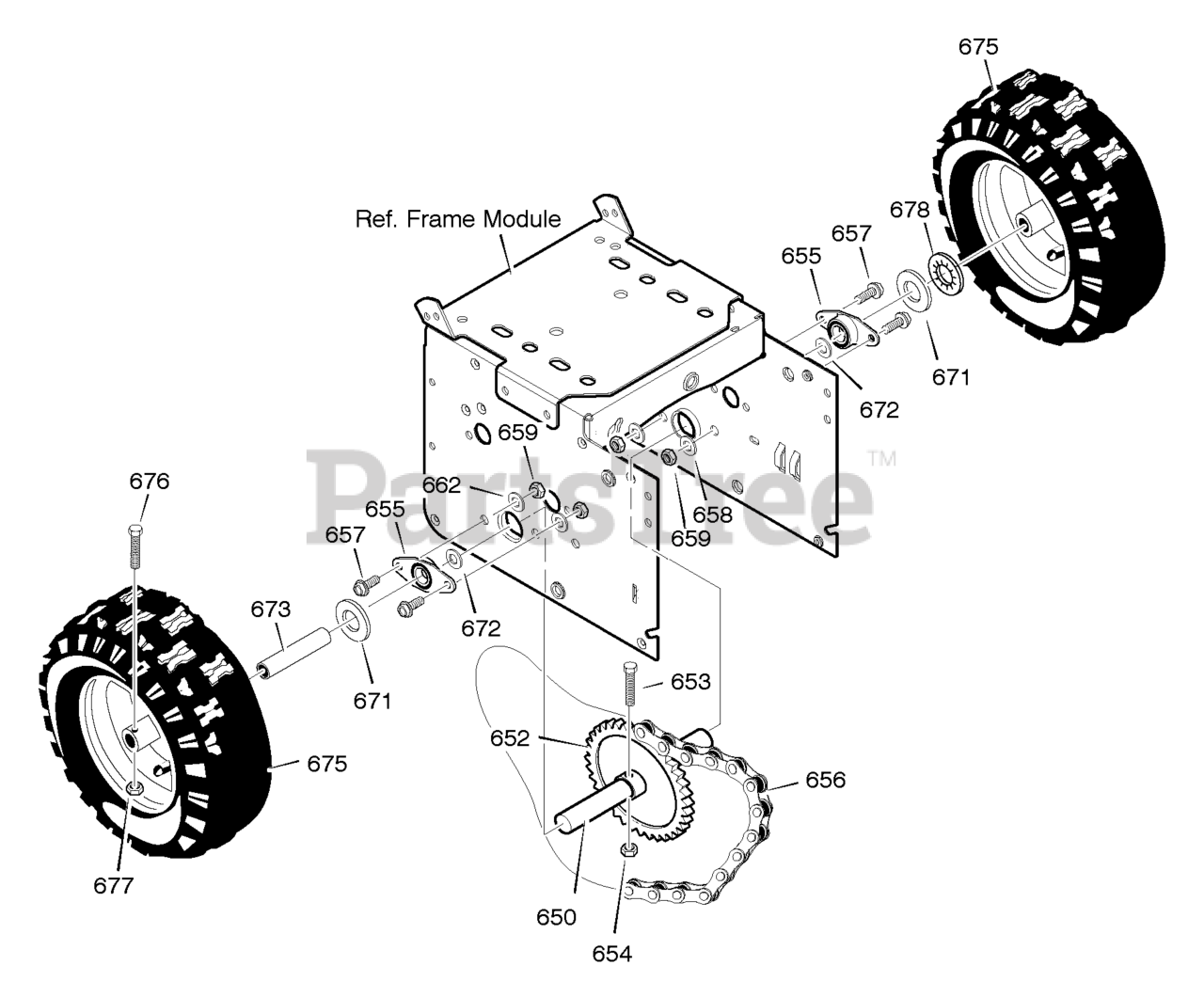

Wheels Parts Diagram

  • Title

650

Murray 1501564 YZ

SHAFT, AXLE

$59.99

$

Usually ships in 2-12 days

0

652

Murray 1501089

SPRKT & HUB
(Superseded to 1501089MA)

$42.99

$

In Stock, Qty 7

0

653

Murray 01X193MA

SCREW, 1/4-20X1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

654

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

655

Murray 53266MA

RETAINER & BEARING ASSY

$48.99

$

Usually ships in 2-12 days

0

657

Murray 71003

SCREW, 3/8"-16x.75

$

$

Not available

658

Murray 71062

WASHER, LOCK

$

$

Not available

659

Murray 71044

NUT, 3/8"-16

$3.49

$

Usually ships in 2-12 days

0

671

Murray 712120MA

WASHER, FLAT

$4.99

$

In Stock, Qty 20+

0

673

Murray 1501138MA

BUSHING, WHEEL

$

$

Not available

675

Murray 1501838MA

TIRE & RIM -Right
(Superseded to 770612)

$192.99

$

Usually ships in 2-12 days

0

676

Murray 577015MA

SCREW, 1/4-20X1.75 HH

$4.99

$

In Stock, only 3 left!

0

677

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

678

Murray 239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

680

Murray 1501839MA

TIRE & RIM -Left
(Superseded to 770611)

$167.99

$

Usually ships in 2-12 days

0
