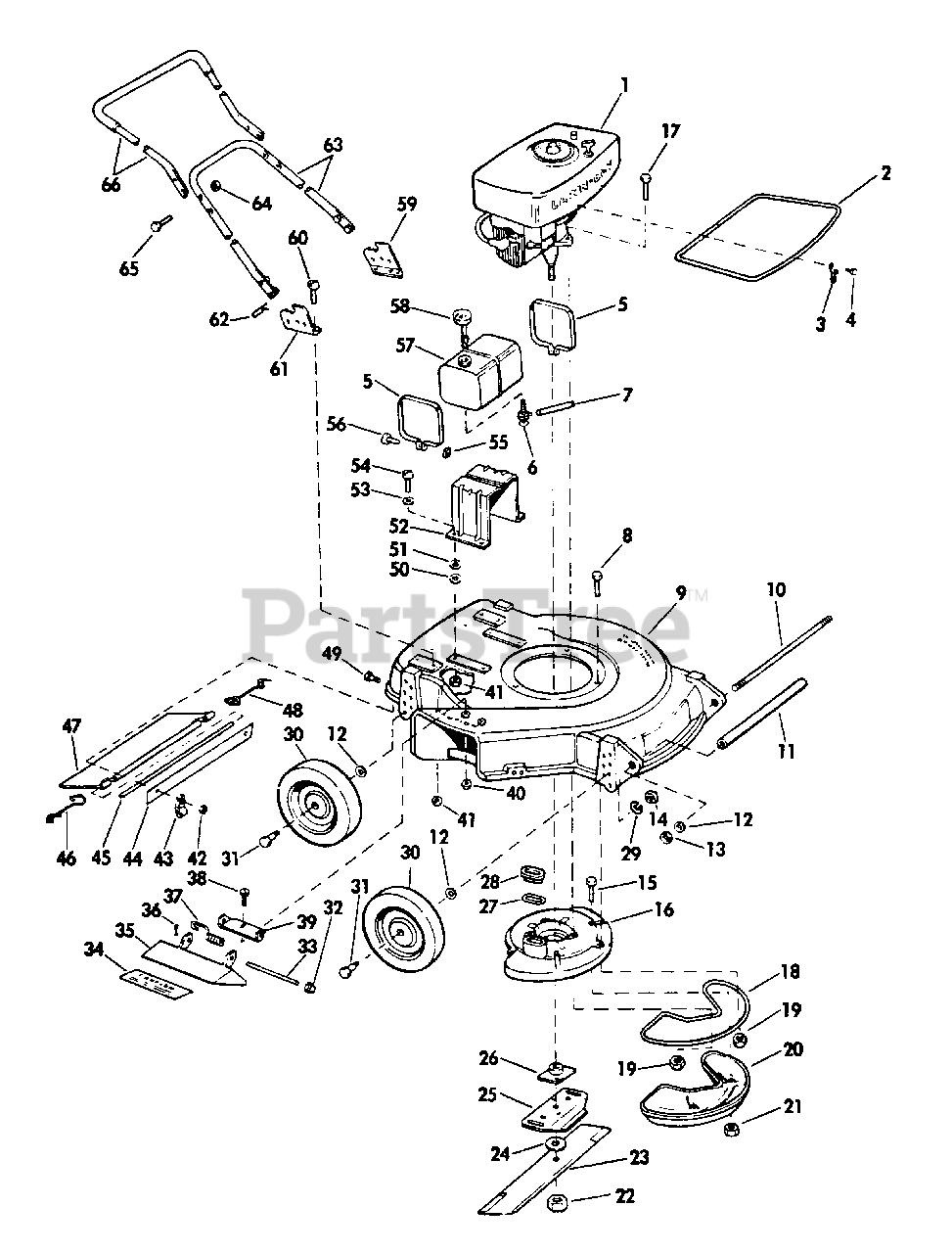

6277 - Lawn-Boy Walk-Behind Mower (SN: 700000001 - 799999999) (1977) MODEL 6277 PROFESSIONAL MOWER-21" PUSH PARTS LIST Parts Diagram

Walk-Behind Mower

MODEL 6277 PROFESSIONAL MOWER-21" PUSH PARTS LIST Parts Diagram

  • Title

1

See Note #2 at bottom of this page.

Note: Note #2. A complete engine, part no. 679423, D-476 is available for replacement on this mower. See MODEL D-476 ENGINE, MAGNETO, STARTER AND CARBURETOR PARTS LIST, MODELS USED ON: 6277, 6255, for a complete list of replacement parts for this engine.

$

$

Not available

2

Lawn-Boy 606629

Loop-Arm. Plate Protective Wire

$

$

Not available

3

Lawn-Boy 606630

Spring-Wire Loop Mounting

$

$

Not available

4

Lawn-Boy 606628

Screw

$

$

Not available

5

Lawn-Boy 606631

Strap-Gas Tank

$

$

Not available

6

Lawn-Boy 677052

Shut-Off Valve & Screen

$23.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 606623

Gas Line

$

$

Not available

8

Lawn-Boy 604862

Screw-Muffler Plate to Housing

$

$

Not available

9

Lawn-Boy 679978

Housing & Bar Assembly-21"
(Superseded to 682937)

$1783.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 606634

Rod-Bumper

$

$

Not available

11

Lawn-Boy 606635

Bumper

$

$

Not available

12

Lawn-Boy 603620

Washer

$5.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 603773

Nut

$2.99

$

In Stock, Qty 6

0

14

Lawn-Boy 602677

Nut-Square

$

$

Not available

15

Lawn-Boy 607847

Screw

$

$

Not available

16

Lawn-Boy 679903

Muffler Plate Assembly

$

$

Not available

17

Lawn-Boy 607715

Screw

$

$

Not available

18

Lawn-Boy 604516

Gasket-Muffler

$

$

Not available

19

Lawn-Boy 608311

Nut-Nylok

$3.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 604024

Muffler

$

$

Not available

21

Lawn-Boy 608559

Nut

$

$

Not available

22

Lawn-Boy 603164

Blade Nut
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 603703

Blade-21"
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

24

Lawn-Boy 605058

Washer-Blade

$5.99

$

In Stock, Qty 12

0

25

Lawn-Boy 603541

Stiffener-Blade

$

$

Not available

26

Lawn-Boy 677525

Collar & Plate

$51.99

$

In Stock, only 1 left!

0

27

Lawn-Boy 604624

Gasket-Exhaust

$11.99

$

In Stock, only 1 left!

0

28

Lawn-Boy 602717

Sleeve-Muffler Gasket

$2.99

$

In Stock, Qty 16

0

29

Lawn-Boy 120177

Lockwasher

$

$

Not available

30

Lawn-Boy 678406

Wheel & Tire Assy.-8"
(Superseded to 681980)

$68.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 606638

Wheel Bolt-Shoulder

$

$

Not available

32

Lawn-Boy 608582

Push Nut

$

$

Not available

33

Lawn-Boy 608381

Pin

$

$

Not available

34

Lawn-Boy 608380

Decal

$

$

Not available

35

Lawn-Boy 608377

Deflector

$

$

Not available

36

Lawn-Boy 306372

Cotter Pin

$

$

Currently unavailable

37

Lawn-Boy 608379

Spring

$

$

Not available

38

Lawn-Boy 306409

Screw

$

$

Currently unavailable

39

Lawn-Boy 608378

Plate

$

$

Not available

40

Lawn-Boy 602315

Nut

$4.99

$

In Stock, only 2 left!

0

41

Lawn-Boy 602315

Nut

$4.99

$

In Stock, only 2 left!

0

42

Lawn-Boy 602315

Nut

$4.99

$

In Stock, only 2 left!

0

43

Lawn-Boy 608382

Clamp

$

$

Not available

44

Lawn-Boy 608376

Extension

$

$

Not available

45

Lawn-Boy 608189

Bar

$

$

Not available

46

Lawn-Boy 608497

Spring-R.H.

$

$

Not available

47

Lawn-Boy 608869

Shield

$

$

Not available

48

Lawn-Boy 608498

Spring-L.H.

$

$

Not available

49

Lawn-Boy 306409

Screw

$

$

Currently unavailable

50

Lawn-Boy 602945

Washer

$

$

Not available

51

Lawn-Boy 604995

Grommet

$

$

Not available

52

Lawn-Boy 606632

Bracket-Gas Tank
(Superseded to 611260)

$108.99

$

In Stock, only 1 left!

0

53

Lawn-Boy 306405

Washer

$

$

Not available

54

Lawn-Boy 606144

Screw

$

$

Not available

55

Lawn-Boy 306542

Nut-Plain Square

$

$

Currently unavailable

56

Lawn-Boy 310356

Screw-Strap to Bracket

$

$

Not available

57

Lawn-Boy 679163

Gas Tank Assy.

$

$

Not available

58

Lawn-Boy 679166

Fuel Gauge Assy.

$

$

Not available

59

Lawn-Boy 606636

Handle Bracket, Left

$

$

Not available

60

Lawn-Boy 602192

Screw-Slotted

$

$

Not available

61

Lawn-Boy 606637

Handle Bracket, Right

$

$

Not available

62

Lawn-Boy 603927

Hair Pin

$

$

Not available

63

Lawn-Boy 679167

Handle Bottom & Pin Assy.

$

$

Not available

64

Lawn-Boy 602315

Nut Stop-Handle

$4.99

$

In Stock, only 2 left!

0

65

Lawn-Boy 602480

Screw-Handle

$

$

Not available

66

Lawn-Boy 679168

Top Handle Section & Grip Assy.
(Superseded to 604601)

$

$

Not available

Lawn-Boy 608374

Bracket-Catcher Mounting

Note: Not Shown

$

$

Not available
